Car waterer for cattle with heating reinforced, Dnipropetrovsk region.

Plasticdrinkers for untethered keeping of cattle with heating

Additional strengthening of the bottom with lattice floors

Frost resistance of the drinker up to -10°C is provided thanks to double
the walls! When installing the heating element
frost resistance is ensured in the area of the valve and the container of the drinking bowl itselfемкости поилки up to -30°C!

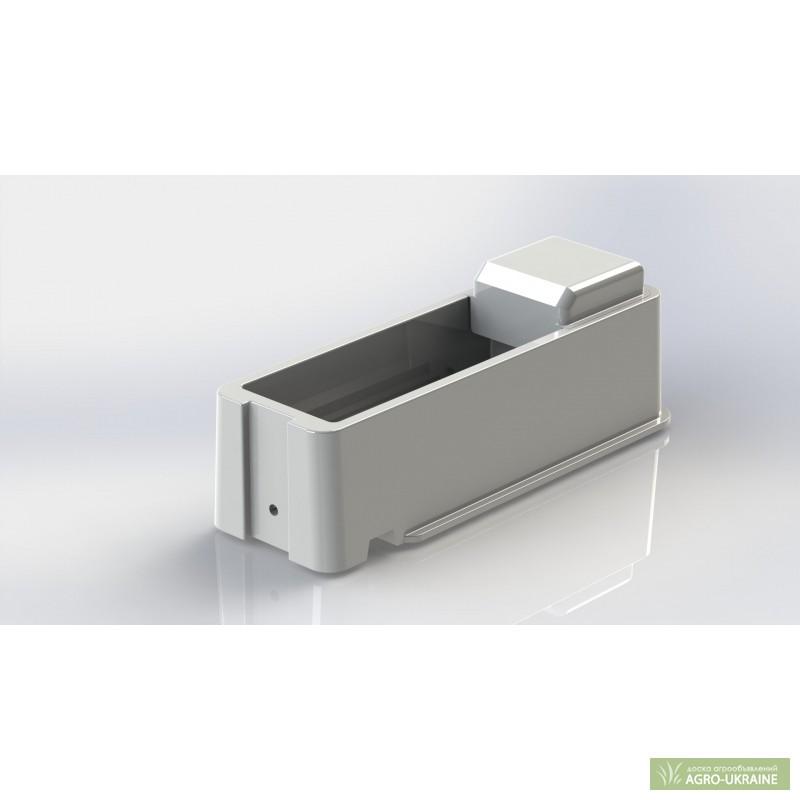

• Double-walled thermo-bath made of high-quality polyethylene,
resistant to ultraviolet, for installation on the floor
• Length-2.2 m, height-0.6 m, width-0.65 m, capacity-350 l
•Durable construction and reliable thermal insulation of the drinker provides animals with cool water in the summer and prevents water from freezing in the winter.
•Bath with a sloping bottom and a large drain hole providesquick draining and cleaning of the drinker. The drain hole is closed with a cork.

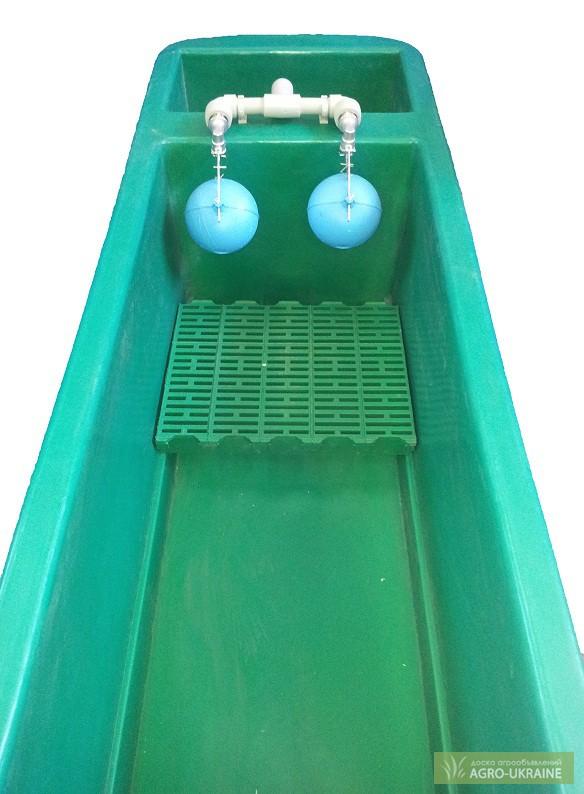

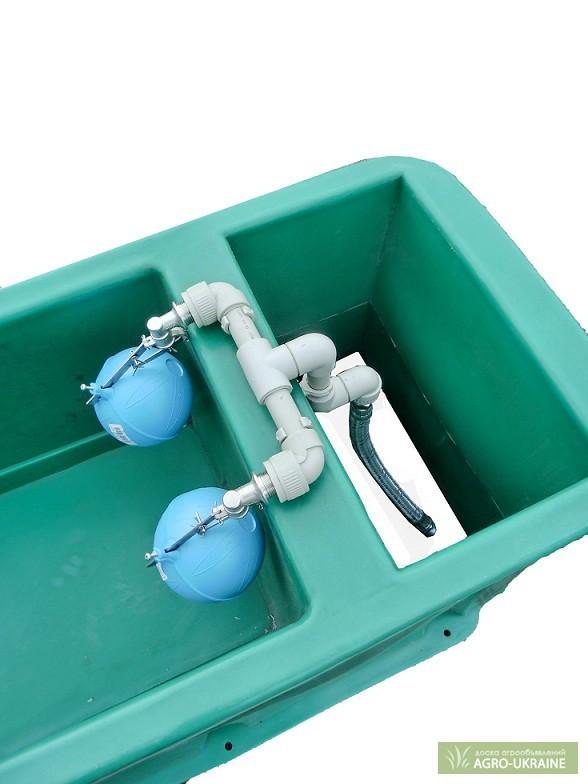

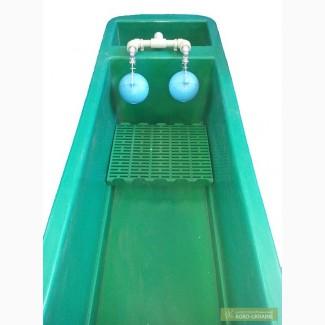

•The drinking bowl is equipped with a float valve that provides a high
water supply speed - up to 40 l/min(//tractor-service.com)
•It is possible to install up to three additional float valves of high or low pressure, for example, for supplying water heated in the process of cooling milk.
• The removable cover provides easy access to the float valves for their adjustment and cleaning, and also has a protective partition against damaged valves.
• It is additionally possible to install a drain pipe (DN 50), provided
by the customer on the spot
• Drinkers can be installed in a row and be connected to each other.

Additional equipment:
•Low pressure float valve
•Heating panel element (glued to the bathroom cavity from the inside 220 V, 230 W)
• Protective slotted blocks against piercing the bottom of the drinker with animal hooves (if the drinker is not installed on the podium.

Additional equipment for frost resistance up to -30°C:
Self-regulating heating element for protection against freezing of dead-end water pipes, their length is 2 m (20 W) or 3 m (30 W). The thermal cord is connected.
to the heating tank in parallel with the wires supplying voltage from the transformer.
For optimal heat distribution (before wiring the thermal cord)
polyethylene pipes should be wrapped with aluminum insulating tape. In addition, it is possible to connect the drinking bowl to the circulating water supply.
