Puloximeter RM-60 VET , Mindray, Poltava region.

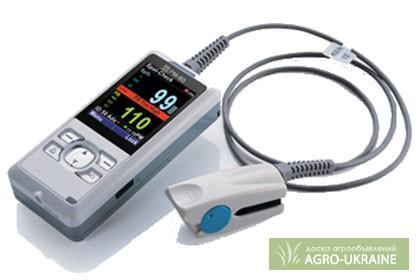

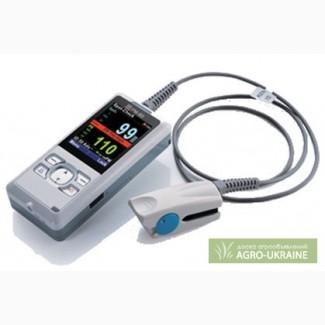

Puloximeter RM-60 VET, Mindray

Characteristics

field of application: veterinary medicine
high-resolution color LCD display with a diagonal of 2.4 inches.
two modes of operation to choose from: one-time and continuous monitoring.
adjustable signals of sound and visual alarms
data transfer through the infrared port in real time
battery charge lasts up to 36 hours of continuous operation
a protective case, a carrying bag allows you to use the device at any time and in any place.

Technical characteristics
Class 2 protection type with internal energy source
Degree of protection BF
Waterproof IPX2
Size and weight
Size 55(w)x120(h)x30(d)mm
Maximum weight 300g (with battery)
Terms of use
Temperature 0 - 40
Humidity 15% - 95%
Storage conditions
Temperature -20 - +60
Humidity 10% - 95%
The field of application is veterinary medicine
Technical specification
Display 2.4 color TFT
Resolution 320x240(//tractor-service.com)
Modes of operation of the display standard graphic screen
Kind of plethysmogram
Indicator alarm signal indicator, battery charge indicator, pulse indicator, alarm signal, sound indicator of pressing buttons
The IR interface infrared port allows you to instantly transfer the patient's readings to a computer.
DC electric voltage charger for Li-ion battery
DC requirements input voltage 5V DC voltage 1.2A

Battery Li-ion battery 2 hours for charging 24 hours of continuous operation AA batteries (for 3 parts) 36 hours of continuous operation
Trend memory resolution 2 sec maximum time 96 h
Digital trend up to 4000 measurements up to 99 patients

Alarm setting of upper and lower alarm levels 3 audio and visual alarm levels

SpO2
Measurement range 0 - 100%
Resolution 1%
Measurement accuracy 2% (70% - 100%)
0% - 69% (without specifying the patient)
Alarm level 50% - 100%
Refresh rate 1 second
Average time 7 seconds (at high sensitivity level) 9 seconds (at medium sensitivity level) 11 seconds (at low sensitivity level)
Pulse rate
Level 18 – 300 bpm
Resolution 1 bpm
Measurement accuracy 3 beats/min (in a static state) 5 beats/min (during movement)

Alarm level 18 - 300 bpm
Refresh rate 1 second
Average time 7 seconds (at a high level of sensitivity) 9 seconds (at an average level of sensitivity) 11 seconds (at a low level)
