Veterinary cardiograph ECG-903, Poltava region.

ECG-903

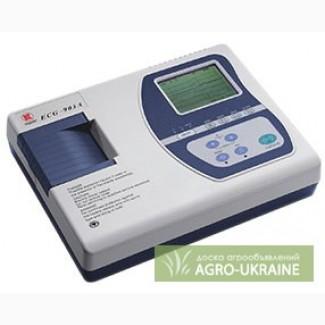

Digital three-channel veterinary electrocardiograph ECG-903

Portable electrocardiograph ECG-903 with registration of 10 standard leads and measurements in manual and automatic modes.

The use of a high-precision thermographic printer provides a clear representation of the shape of the electrocardiogram teeth and a full literal interpretation for the purposes of clinical veterinary diagnostics and research.

The use of digital decoupling technology ensures the safety and reliability of the device. The influence of temperature drift and time drift is weakened to a minimum, which guarantees the ability of the device to adapt to the environment.

Digital processing of drift control signals, alternating current filter, electromyogram filter and heart rate measurement ensures reliability of signal processing.

Three print formats: standard three-channel format, two-channel format (one channel plus lead for rhythm) and single-channel print format with manual control ensure satisfaction of all clinical needs.

DISTINCTIVE FEATURES

3-channel electrocardiograph
Registration of 10 standard allocations
High-resolution thermal printer (rolled paper 63mm x 30m)
Automatic and manual operation mode
Liquid crystal display with display of 3 curves.
Works from the mains and from the battery.
Built-in RS-232 port (USB - option)

STANDARD DELIVERY KIT: 148

Электрокардиограф ECG-903
Patient cable
Chest electrodes crocodiles
Power cable
Grounding cable
Roll of paper
Accumulator battery
Fuses (2 pcs.)
(//tractor-service.com)
TECHNICAL CHARACTERISTICS

ECG UNIT:
Allocations: 10 standard allocations
Selection of sensitivity: 2.5, 5, 10, 20 mm/mV or automatic
Constant time: More than 3.2 s
Frequency response: 0.05 Hz-150 Hz
CMMR (dynamic range) >60 dB, >100 dB (with filter)
Maximum electrode potential: More than ± 550 mV
Digital conversion: 18 Bit/1000 Hz
DISPLAY:
Liquid crystal with contrast adjustment and backlight
Display area: 83 mm (horizontal) x 33 mm (vertical)
Resolution: 192 x 64 points
Display: 3 channels
CONTROL OF THE CARDIOGRAPH:
Control device: film functional keyboard
PRINTER:
Printing method: matrix thermal head
Paper drawing speed: 25 or 50 mm/sec.
Paper for recording: roll 63 mm x 30 m
INTERFACES - INPUT / OUTPUT:
RS-232C, USB
SECURITY:
Limiting standard: IEC60601-1
Protection against electric shock: Class 1 (CF type)

MAIN CHARACTERISTICS OF THE ELECTROCARDIograph

ELECTRICAL SUPPLY:
AC: 100-240 V 50/60 Hz (universal)
Direct current: rechargeable battery 14.4 V, 2000 mAh
Built-in charger
OVERALL DIMENSIONS:
300 x 230 x 61 mm
Weight: 2.7 kg (with battery)
