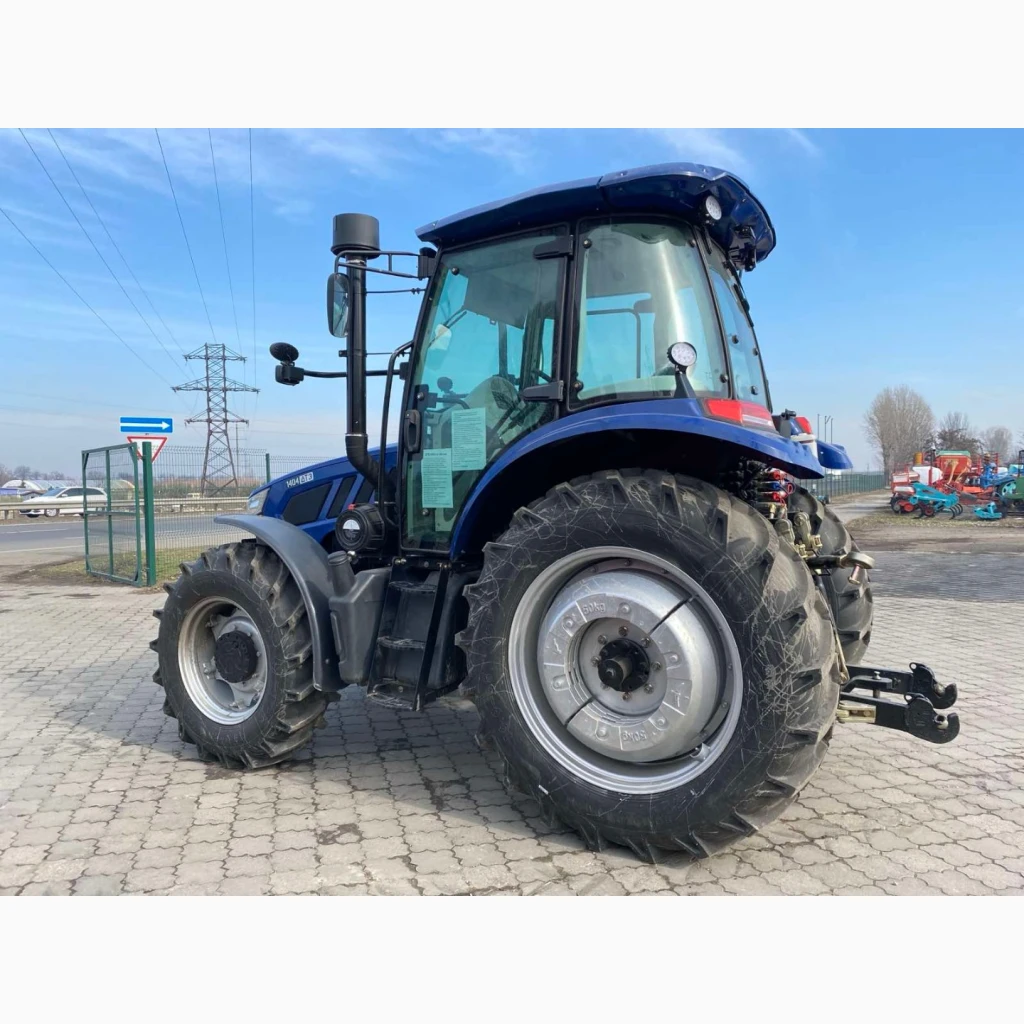

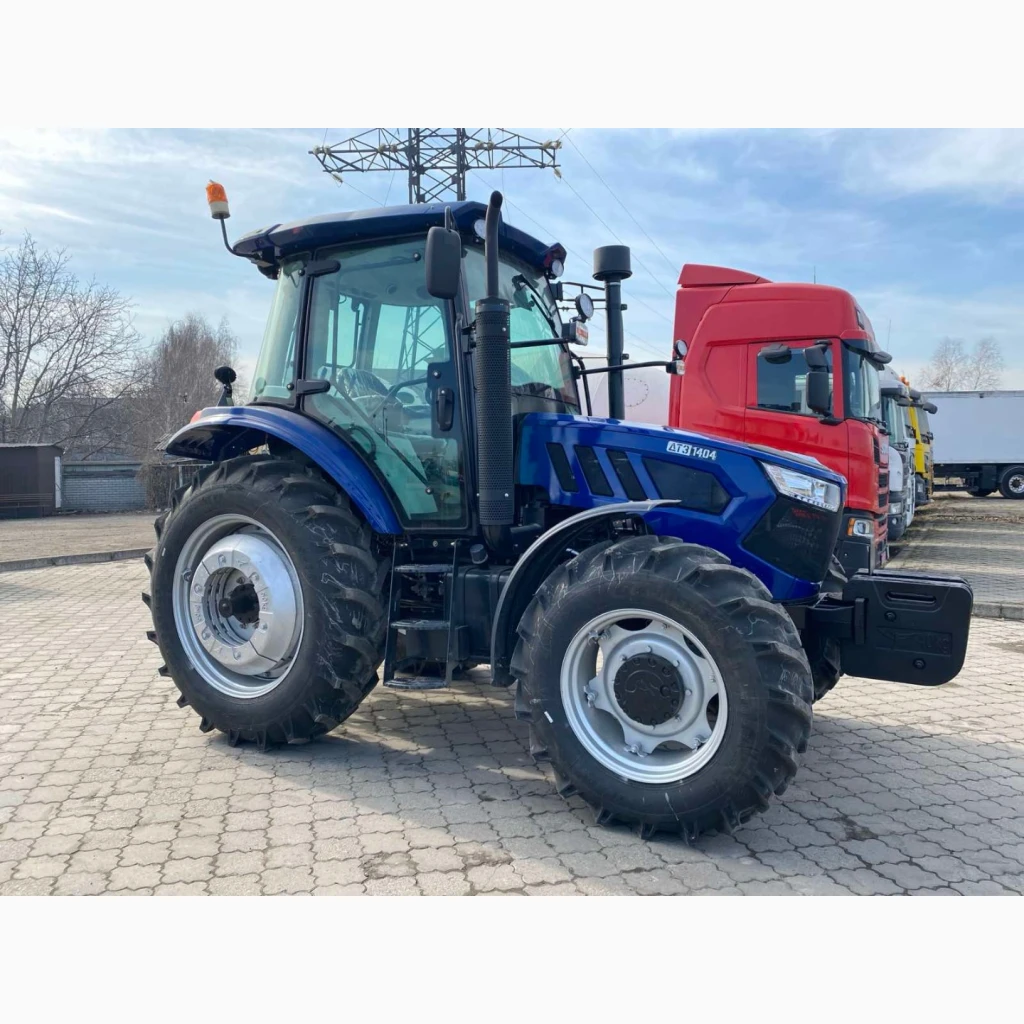

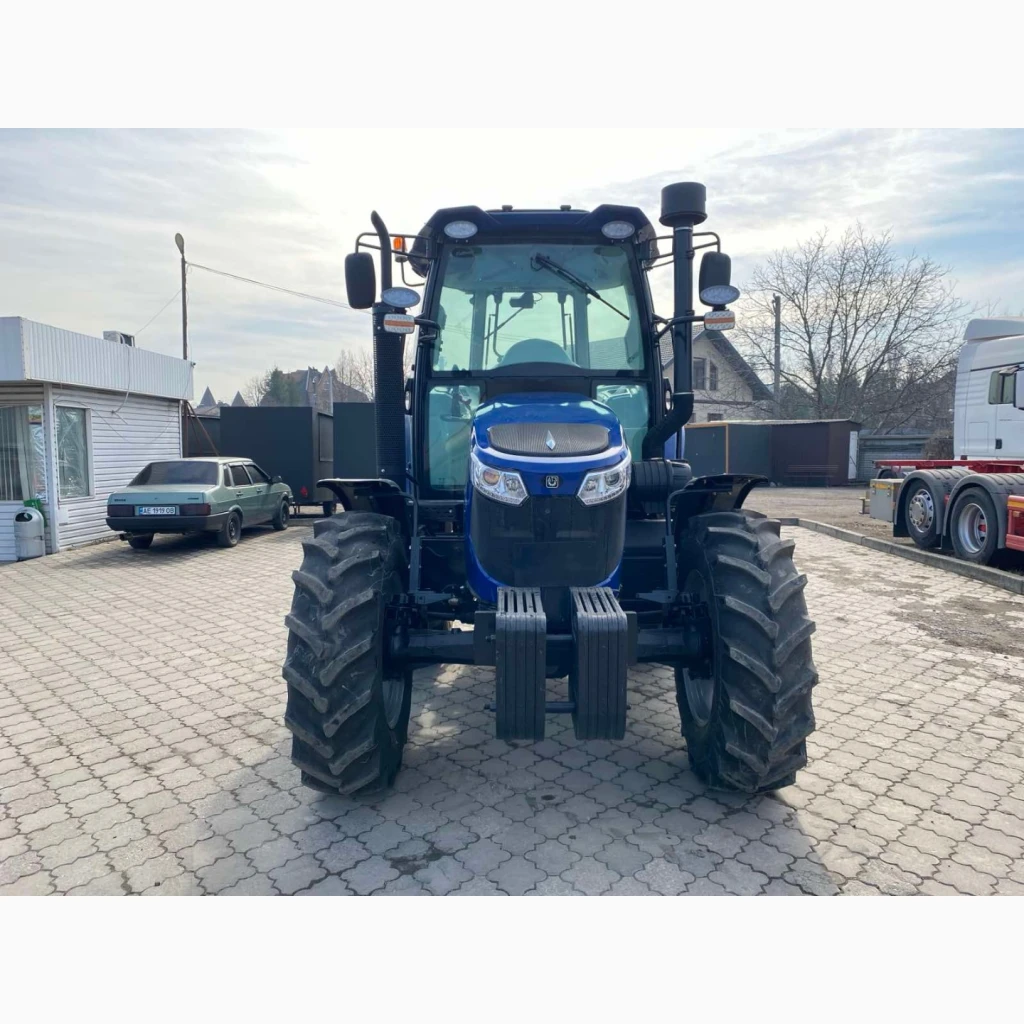

DTZ-1404 tractor with 140 hp. with a warranty for 3 years or 1600 m.y. There is VAT, possible sale in Leasing.
Technical
characteristics of the tractor DTZ-1404:
Nominal power, k.s. 140
Wheel formula 4×4
The number of downshifts (12+12) × 2
Clutch Dry, two-disc, 12''
Nominal traction force, kN 23
Dimensions: L×W×H, mm 4325 × 1970 × 2715

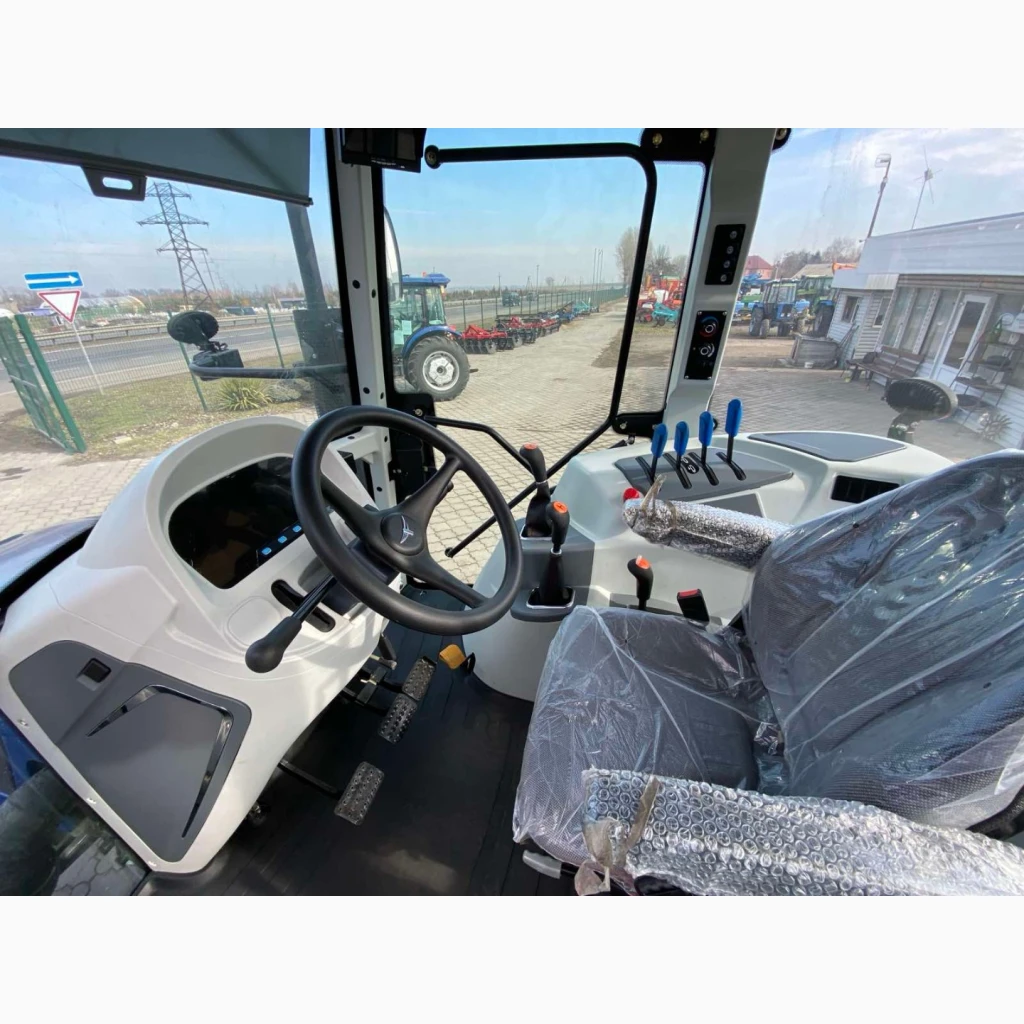

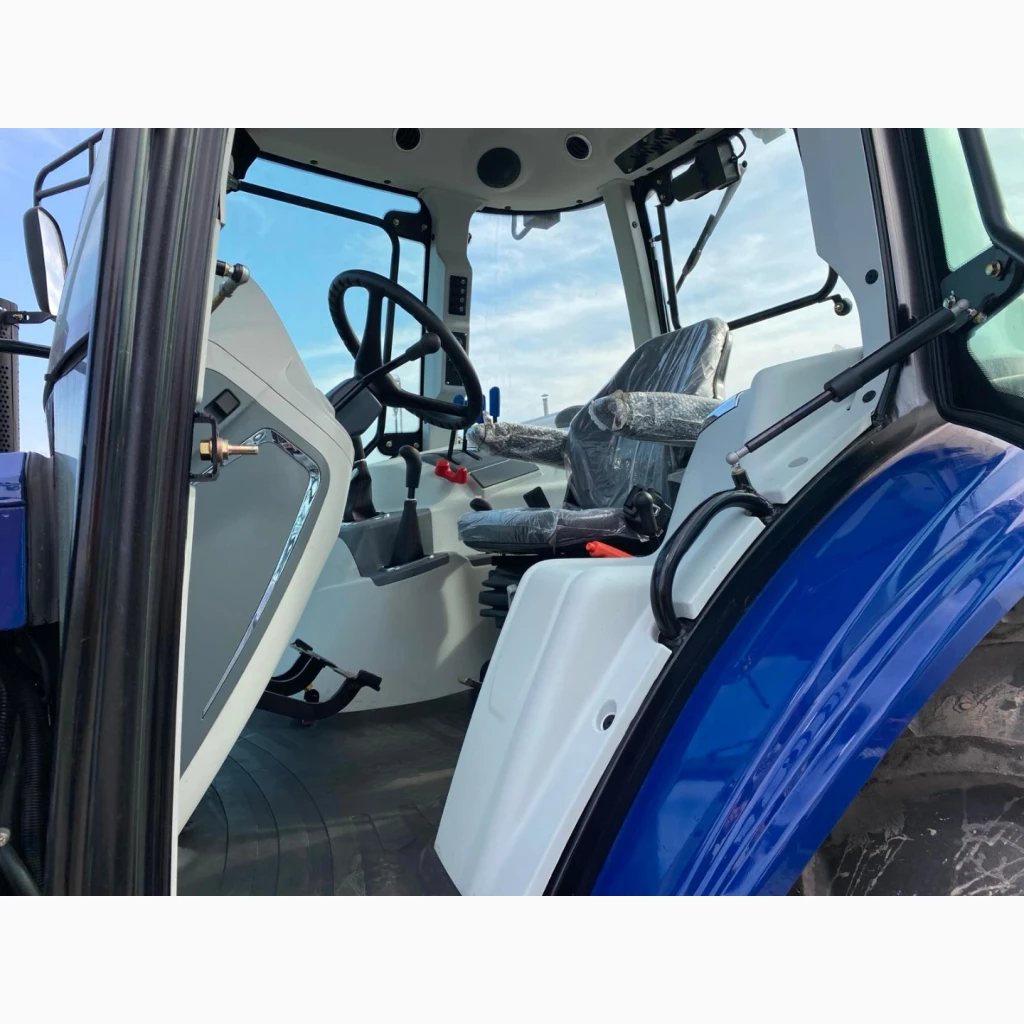

There is a cabin
Steering Hydraulic steering
Operating mass, kg 5700
*ENGINE
Engine model CF5F140-T-GB011Q
Engine power kW (hp) 102.9 (140)
Engine type 4-cylinder diesel engine, with water cooling, turbine and intercooler
Working volume, l 4.83
Nominal operating frequency of rotation, rpm 2300
Maximum torque, Nm 598
Cylinder diameter × piston stroke, mm 108×132
Volume
lubricant in crankcase, l 15
Specific fuel consumption, g/kW * h 235

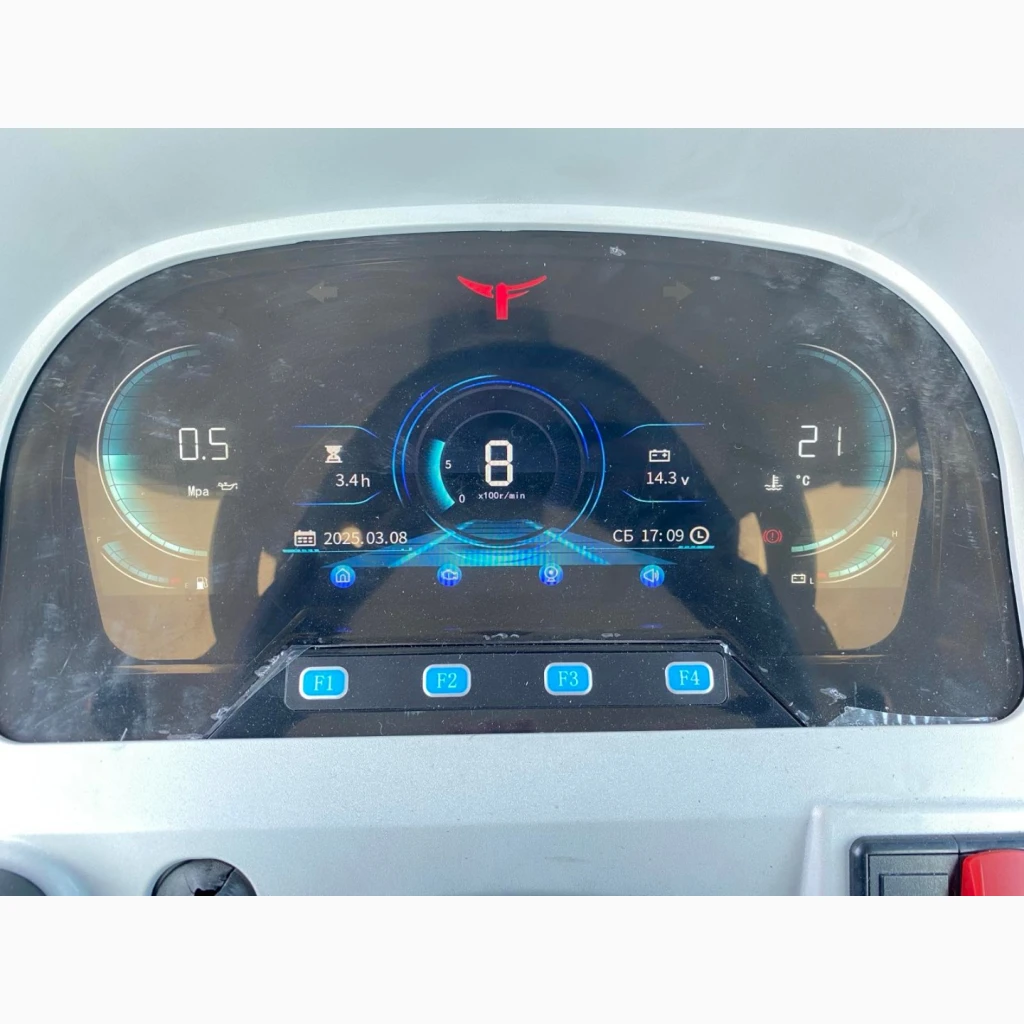

Electronic power management Multi-operation engine management system
Cooling system Forced
Fuel cleaning system Pre-cleaning filter and fine cleaning filter
Air filter 3-stage filter
The volume of the fuel tank, l 220
*TRANSMISSION, CHASSIS
Clutch Dry, two-disc, 12''
Gearbox Mechanical, reversible
The number of downshift gears (12+12) x 2
Synchronization of gear shifting IS
Front / rear
tyres 14.9-26/16.9-38
(//tractor-service.com)
Wheel base / ground clearance, mm 2681/475
Service brakes Oil bath with hydraulic drive
Parking brake Mechanical
Trailer brake pneumatic drive with compressor E
Turning radius without brakes, m 4.8
Turning radius with brakes, m 4.3
Front counterweights, kg 400
Rear counterweights, kg 600
Theoretical forward speed, km/h 1.8 / 28.7
Theoretical speed of backward movement, km/h 0.5 / 16.3

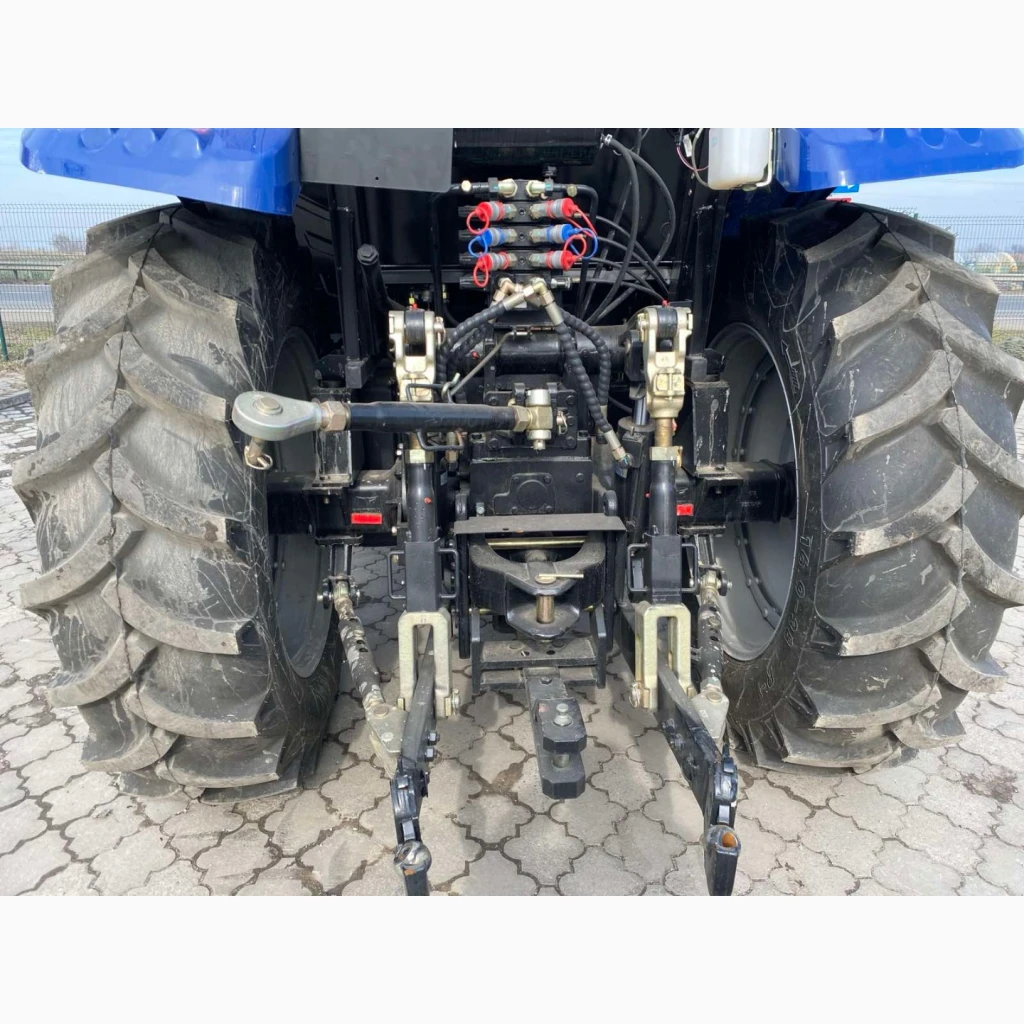

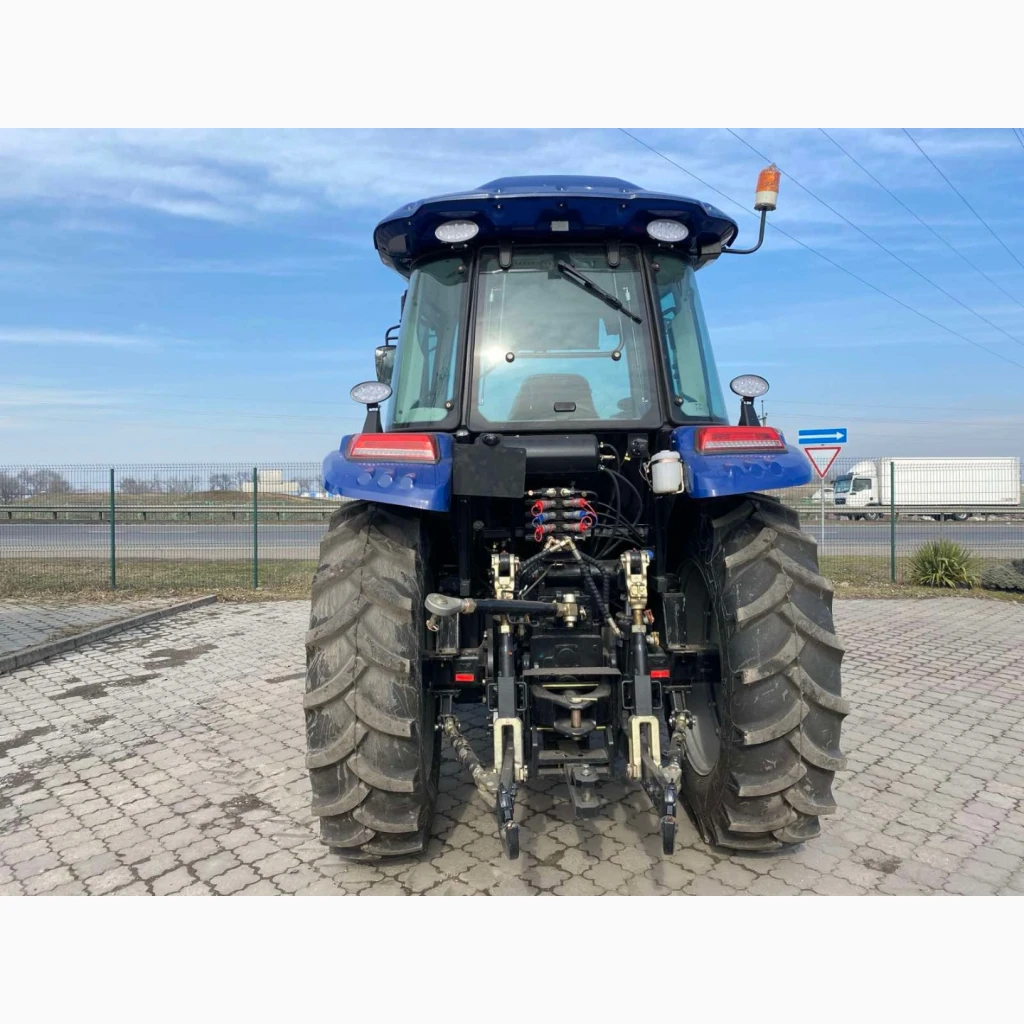

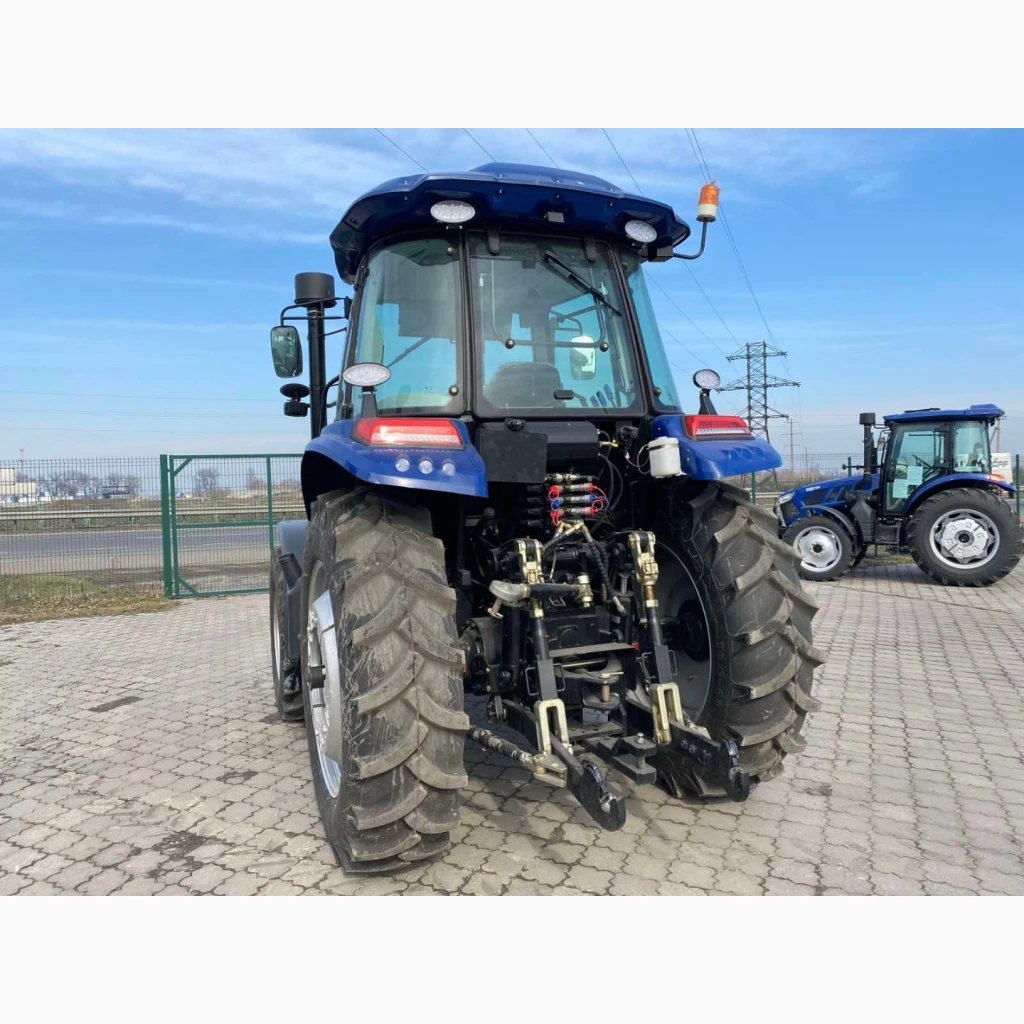

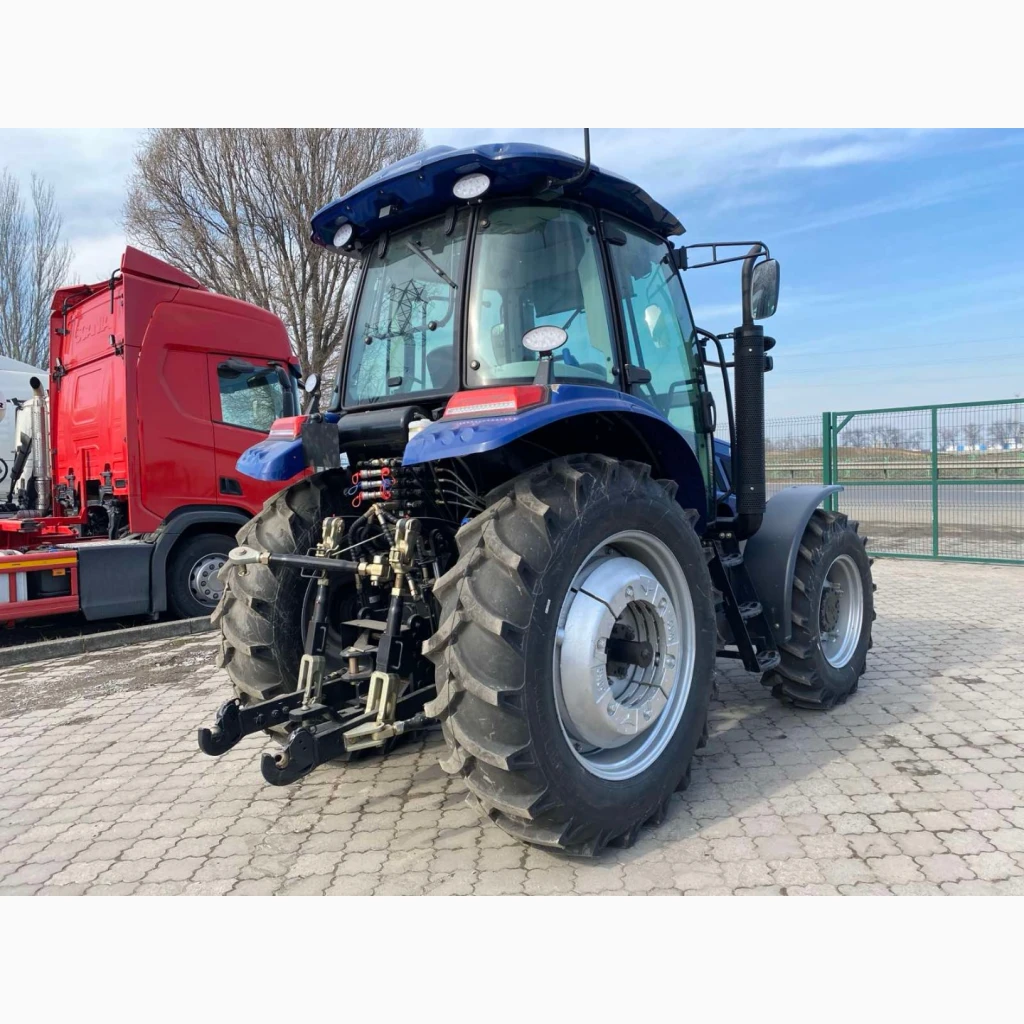

*HINGED SYSTEM
Attachment: type / category Class II, 3-point
Lifting force of the attachment, kg 3200
Number of hydraulic cylinders 2
Modes of operation of the hinge With forced lowering
Type of hydraulic system Separate
Hydraulic system productivity, l/min 52.3
Number of pairs of hydraulic outlets 3
GDP shanks 8 slots
Turn the power take-off shaft, rpm 540/1000
GDP power, kW 92
Towing device type Detachable trunnion
Pendulum traction bar E
.ERGONOMICS, ELECTRICAL EQUIPMENT.
Noise level in the cabin, dB 81
Air filtration in the cabin Paper filters
There is an air conditioner and a heater.

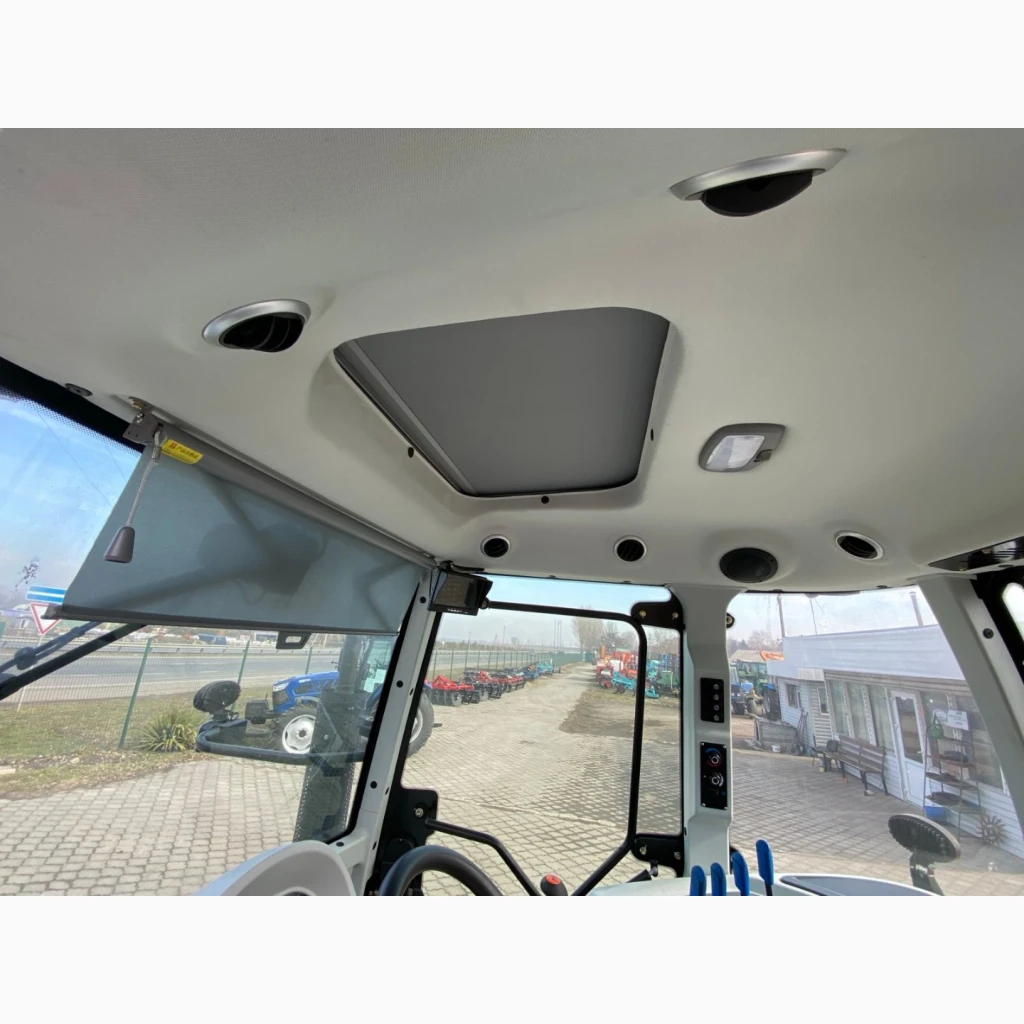

There is a hatch in the roof.
Sun protection canopy E

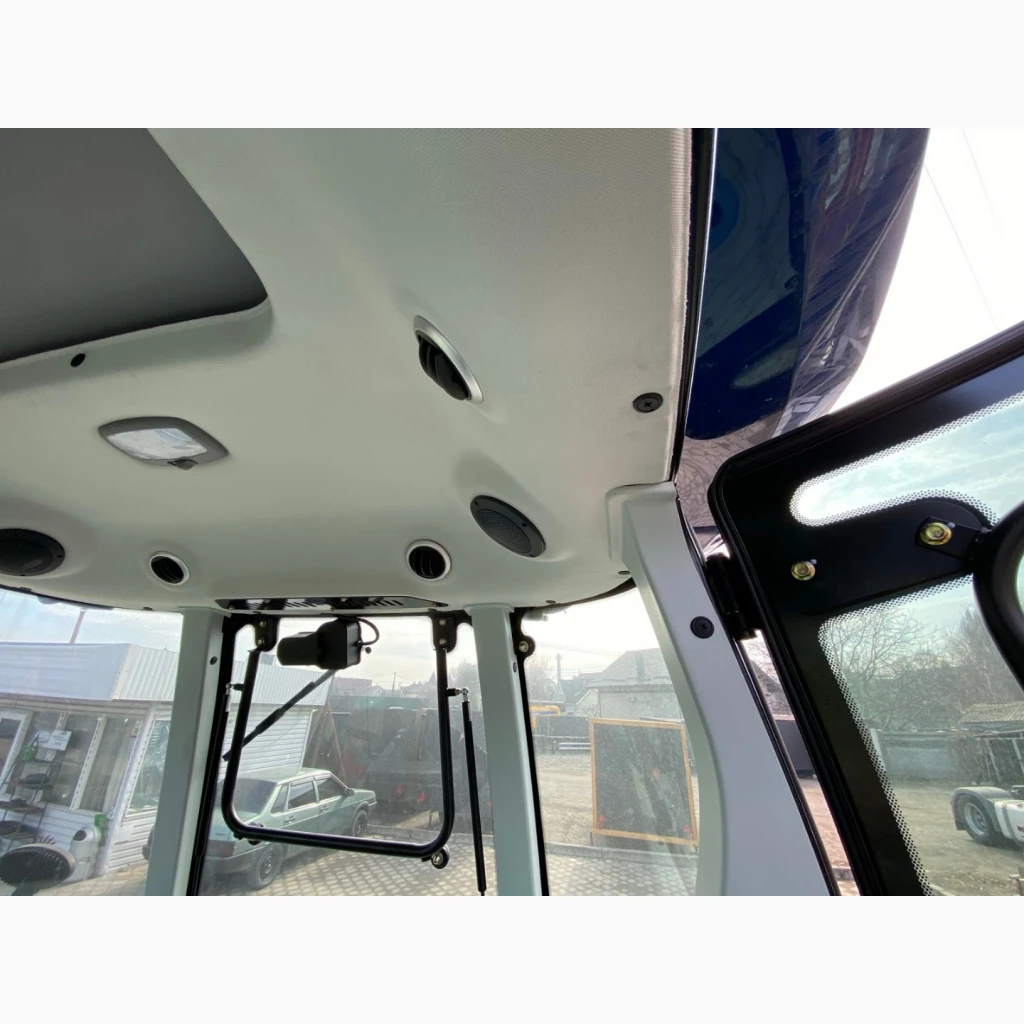

There is a stereo system
Socket 12 V E
Lighting equipment Main headlights, taillights, taillights, front and rear turn signals
Other electrical equipment DTZ tractors are available in the Dnipro warehouse, and all spare parts for these tractors are also available.
