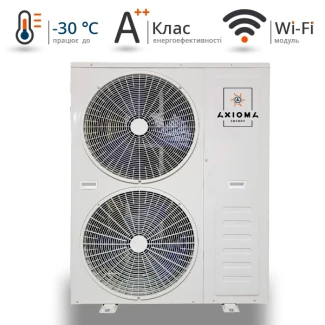

Heat pump Inverter + EVI monoblock, 15kW 230V, model - AXHP-EVIDC-15M, AXIOMA energy, Kyiv

The heat pump allows use free environmental energy to heat water. The energy contained in the air is transferred to the heat carrier of the heating system. Advantages of using the heat pump AXHP-EVIDC-15M, AXIOMA energy - Innovative hot water technologies are presented in one device. - Intelligent management and economic modes of operation. - Environmental cleanliness of the heat pump, absence of CO2 emissions and environmental pollution. - Cost-effectiveness and a several-fold reduction in costs for HGV.

Advantages of using the heat pump AXHP-EVIDC-15M, AXIOMA energy
- Innovative HVP technologies are presented in one device.
- Intelligent management and economic modes of work.
- Environmental cleanliness of the heat pump, no CO2 emissions and environmental pollution.
- Cost-effectiveness and a several-fold reduction in costs for GVP

Features:

Energy consumption class: A++
DC inverter + EVI technology - inverter technology of intermediate steam injection
Smart control: Remote controller with display + WIFI
Fully inverter DC compressor and fan motor
The water temperature at the outlet is up to 60ºC
Heating+Cooling+DHW
Work on heating up to -30ºC
Refrigerant R32, environmentally friendly

Usage:

General characteristics:

Model

AXHP-EVIDC-15M

Power supply (V/Ph/Hz)

220-240/1/50

Operating conditions: outside air 7 °C / 6 °C, inlet/outlet water 30 °C / 35 °C

Heating

Heating power (kW)

5.2 ~ 16.8

Power consumption from the network (kW)

1.0 ~ 5.1

Seasonal coefficient of performance of the system in the heating mode (SCOP)

4.26

Operating conditions: outside air 7 °C / 6 °C, inlet/outlet water 50 °C / 55 °C

Heating

Heating power (kW)

5.3 ~ 16.8

Power consumption from the network (kW)

1.3 ~ 6.7

Seasonal coefficient of prod

3.32

Operating conditions: outside air 35 °C / 24 °C, inlet/outlet water 12 °C / 7 °C

Cooling

Cooling power (kW)

3.6 ~ 11.5

Power consumption from the network (kW)

2.0 ~ 7.8

Efficiency coefficient of the system in cooling mode (EER)
(//tractor-service.com)
2.86

Power consumption class (SCOP)

Outlet water temperature

at 35 °C

A++

Outlet water temperature

at 55 °C

A++

Refrigerant

Type

R32

Loaded volume (kg)

3.5

Noise level

Heating (dB(A))

48

Cooling (dB(A))

49

Water flow volume (m3/h)

2.5

Connecting water pipes
pipes (mm)

DN25 "father"

Operating temperature range

Cooling (°C)

-5 ~ 48

Heating (°C)

-30 ~ 48

GWP (°C)

-30 ~ 48

Dimensions (W*D*H) (mm)

1025*380*

1320

Dimensions in the package (W*D*H) (mm)

1076*440*

1460

Net/gross weight (kg)

125/140

Warranty period 30 months, compressor 48 months
