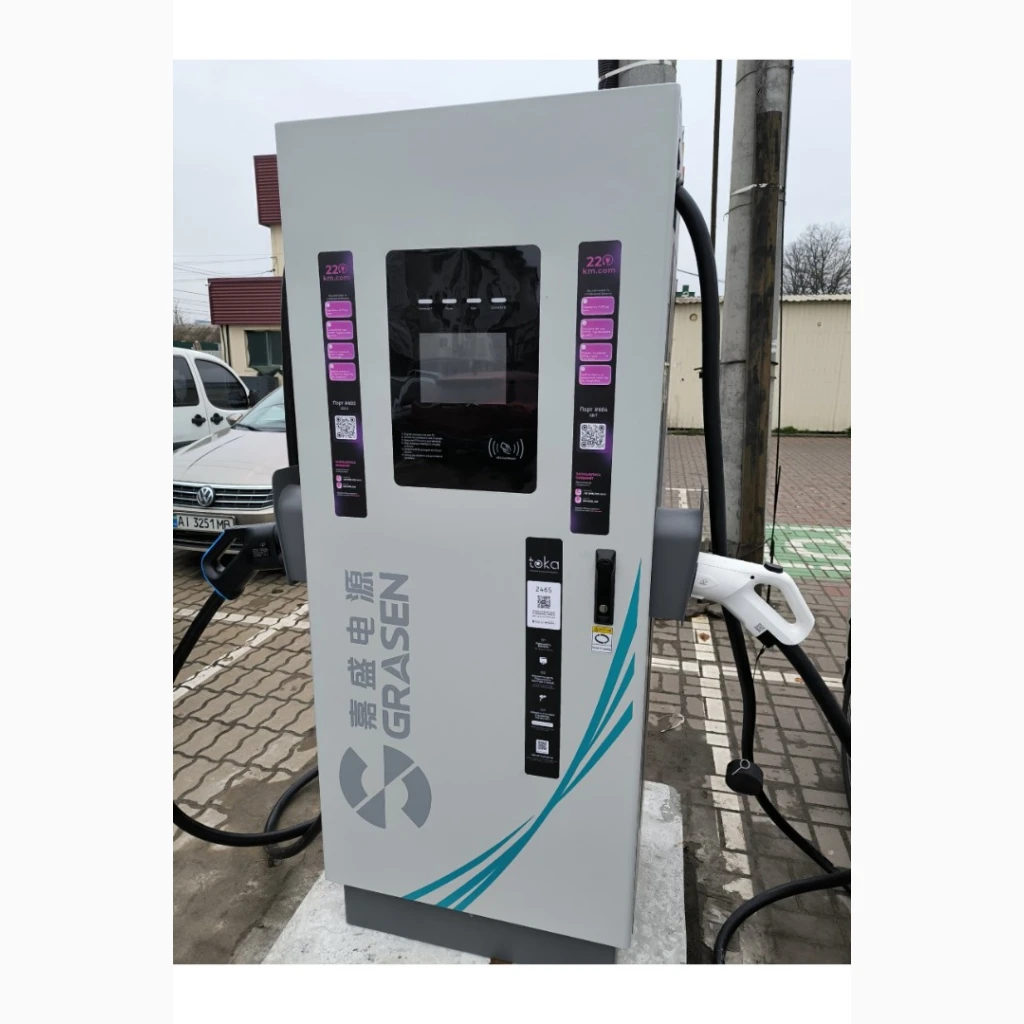

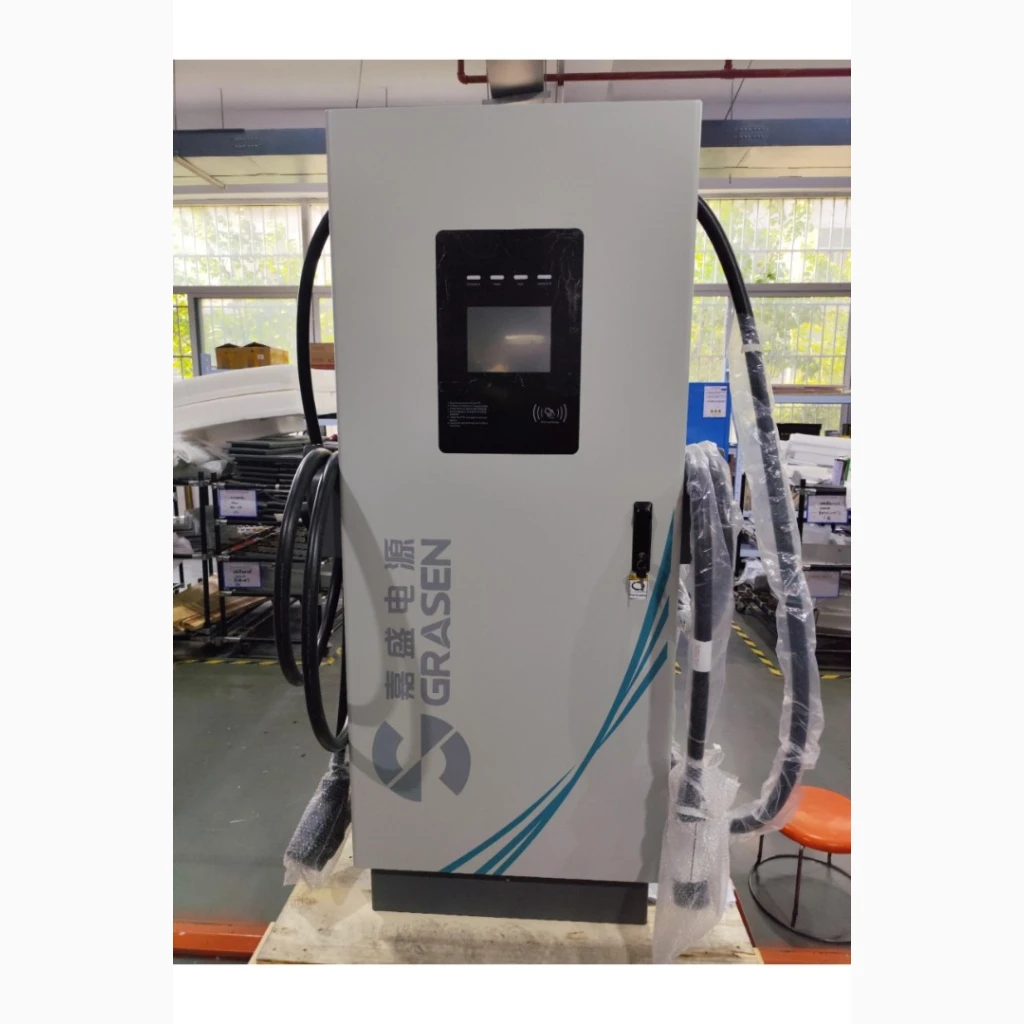

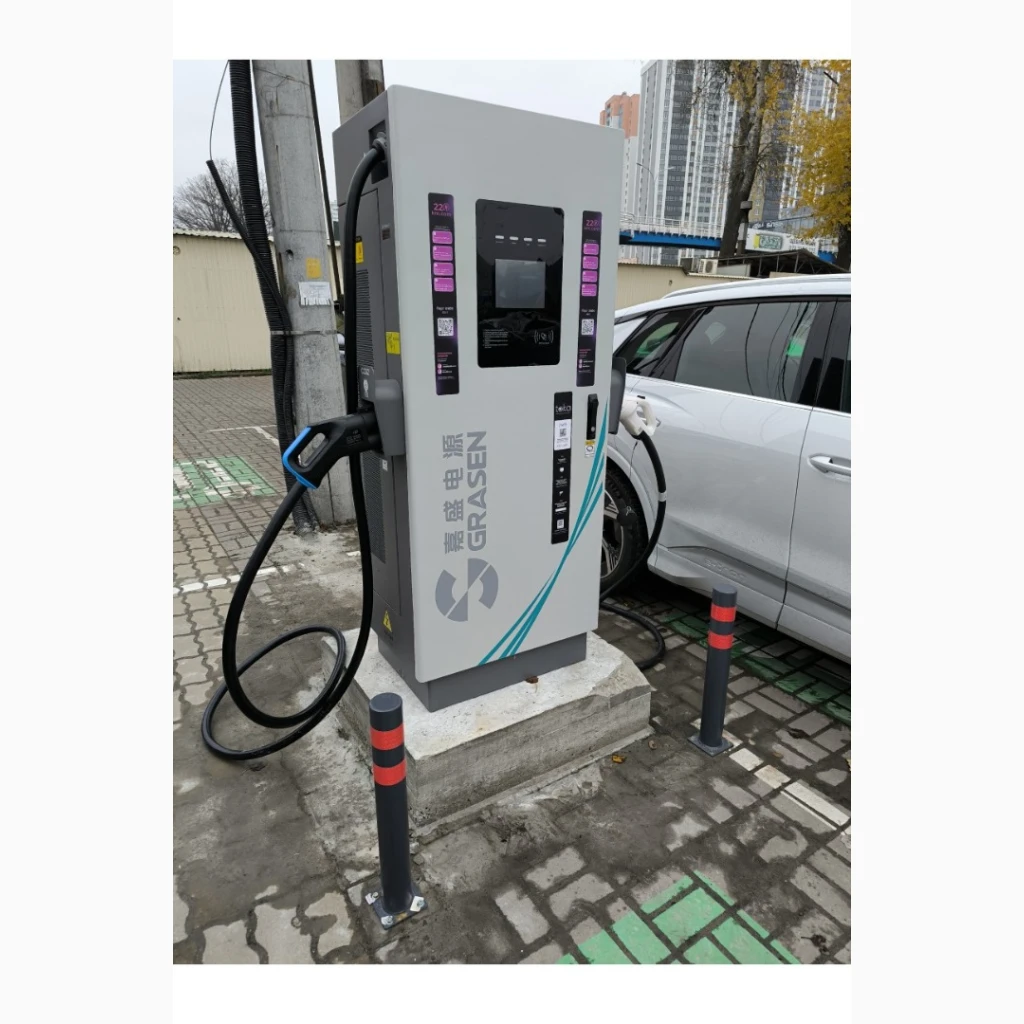

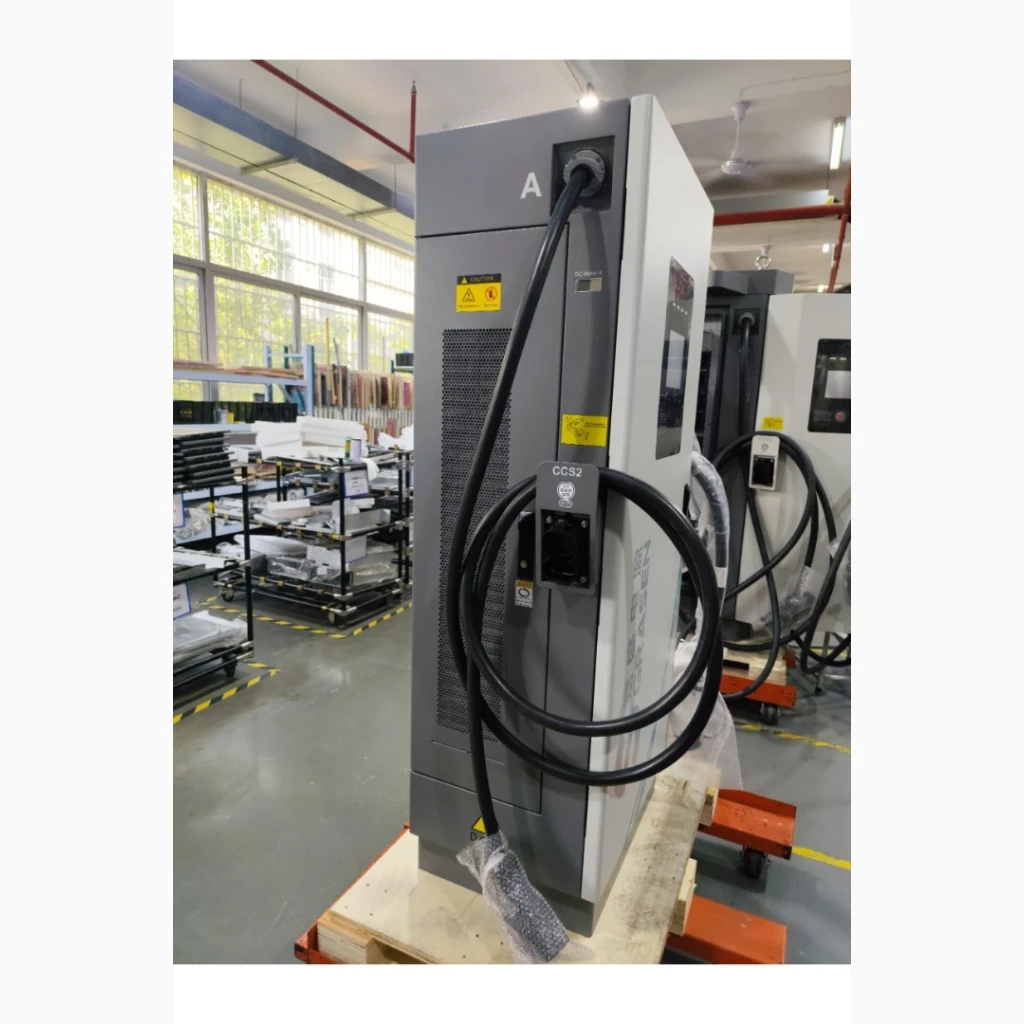

Commercial charging station for electric cars Grasen 120 kW, Kyiv

Commercial charging station of the new generation Grasen 120 GB kW/T DC/CHAdeMO/CCS Combo 2/CCS Combo 1 3-phase, combines ease of installation, compactness and minimal maintenance costs. Thanks to its small size, it is perfect for use in residential complexes, parking lots, and car dealerships.

Main advantages
Power and versatility.
The modular design makes it possible to easily maintain and increase the capacity if necessary.
Simultaneous charging of two cars is possible.
Safety and reliability
Separate location of AC input and DC output ensures neat and safe connection.
Minimal cable wear thanks to a well-thought-out design.
Degree of protection IP54 – protection against moisture,dust and corrosion.
Additional security
Emergency stop button.
Built-in fuses and intelligent protection system.
Technical characteristics
Charging current: 5-400 A
Voltage: 200-1000 VDC
Efficiency: ≥94%(//tractor-service.com)
Power factor: ≥0.99
Temperature range: from -35°C to +55°C
Humidity: ≤95% non-condensing
Noise: <60 db
Cooling method: air (forced)
Dimensions: 700×590×1840 mm
Access and payment
Mobile application, website, QR codes, credit cards, RFID cards.
Support of clearing operations (UA PAY, NOVA PAY, etc.).
Compatible with OCPP 1.6J and 2.0 protocols.
Additional features
4G and Ethernet connection.
LED display and RGB indication.
Remote monitoring and control.
NFC payment and delayed charging start.
Adaptive protection against voltage surges, overloads, lightning discharges and overheating.
Earthing and temperature control.
