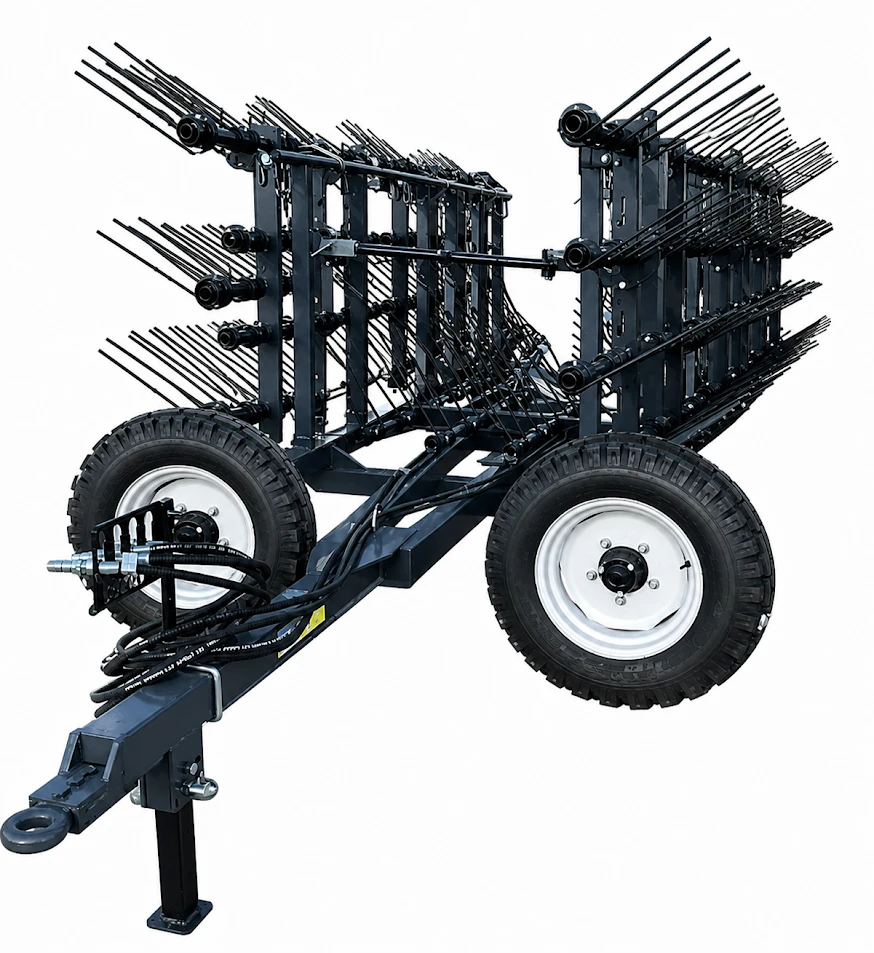

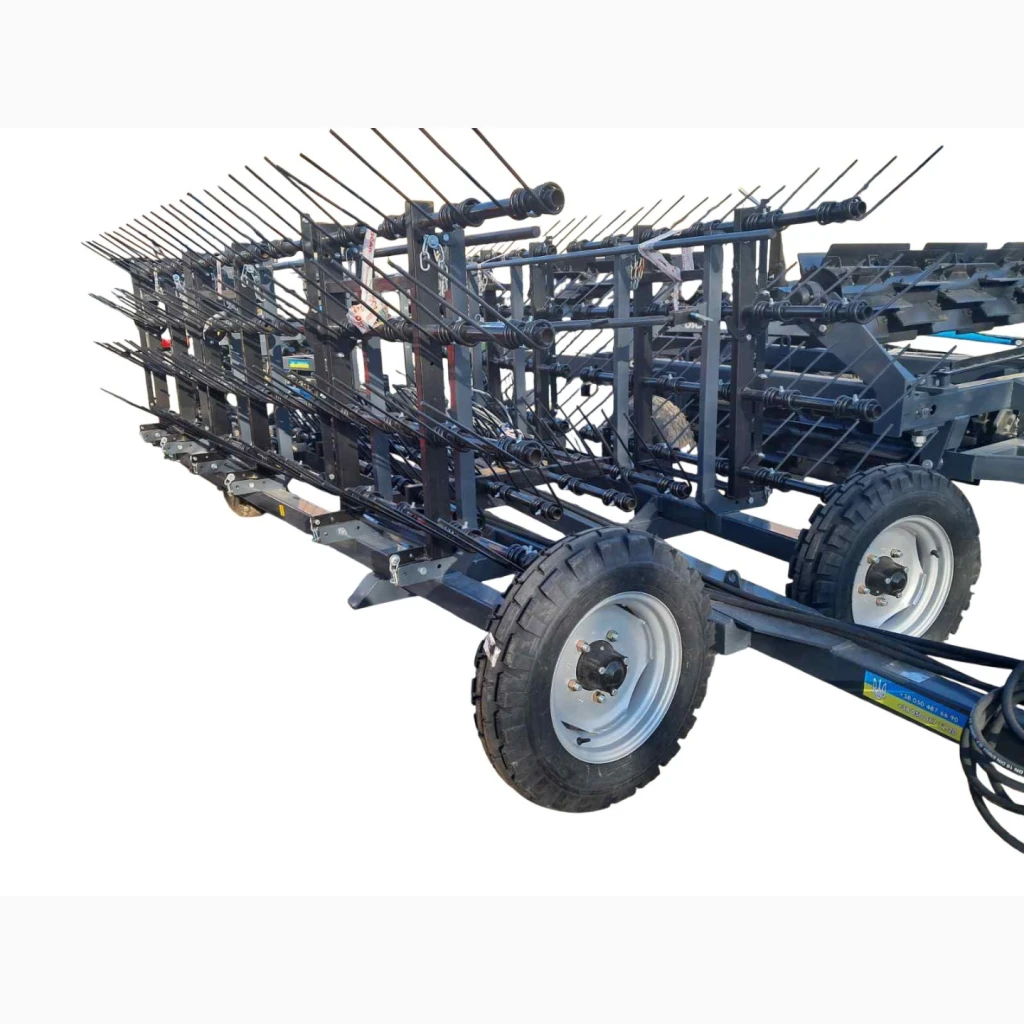

Harrow hydrofed trailed spring harrow is designed for uniform distribution of crop residues on the field, destruction of the surface crust on the soil, destruction of weeds in the white thread phase, closing of moisture by interrupting the capillary flow from of the lower layers of the soil, wrapping seeds and fertilizers, continuous cultivation of the soil during the care of the couples and preparation for sowing, collection of
straw and hay in windrows.
Size options and cost:
BPP-12 m, cost - UAH 300,000. (with the option of hydraulic folding of the wings - UAH 340,000)
BPP-14 m, cost - UAH 325,000. (with the option of hydraulic folding of the wings - UAH 360,000)
BPP-16 m, cost - UAH 345,000. (with the option of hydraulic folding of the wings - UAH 380,000)
Technical capabilities of this unit:
(//tractor-service.com)
The processing depth is 2-9 cm, the springs with a thickness of 10 mm are arranged in four rows,
smooth adjustment of the angle of attack of the teeth allows you to adjust the spring harrow for any operating conditions, the towing loop is used at the factory with the possibility of easy and quick replacement, the bolt system of fastening the main beams ensures reliable operation for many years.
Powder coating of the unit.
Recommended power
tractor 110 hp
Operating speed 8-15 km/h.
Productivity 10-14 ha/h.
