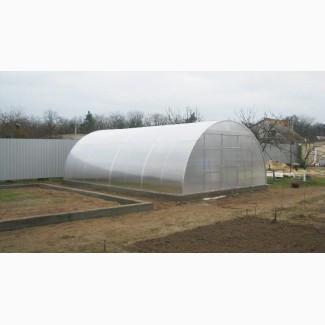

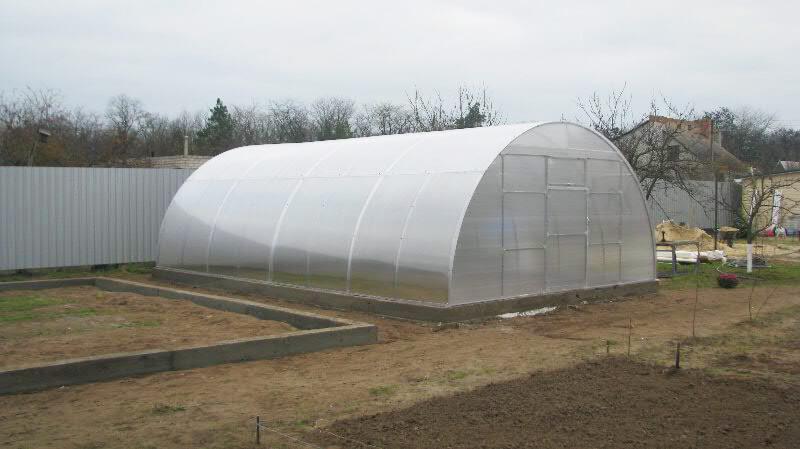

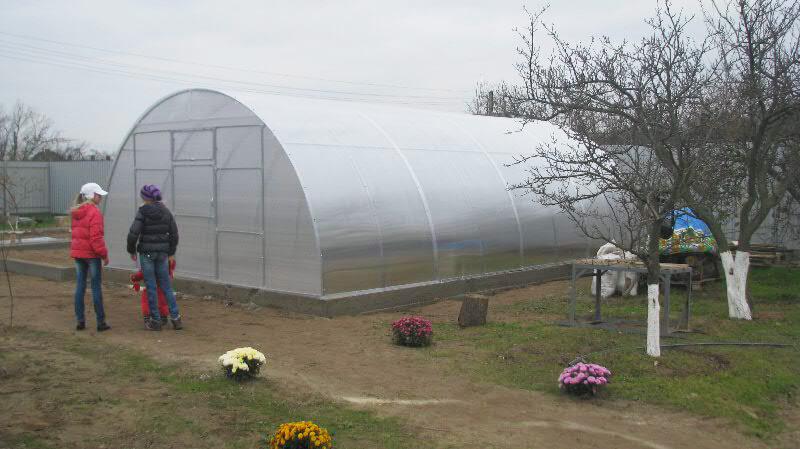

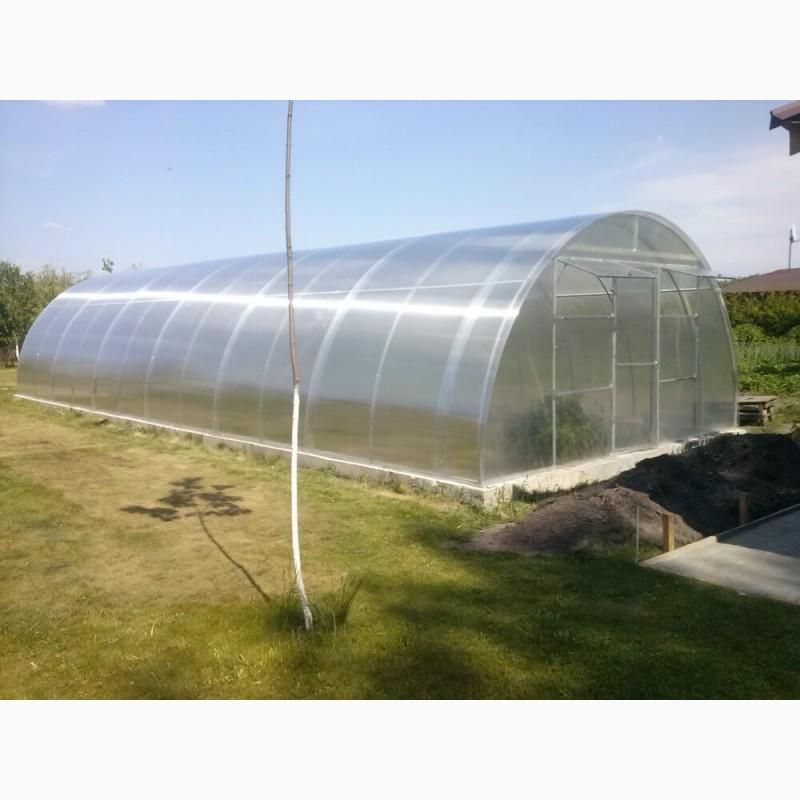

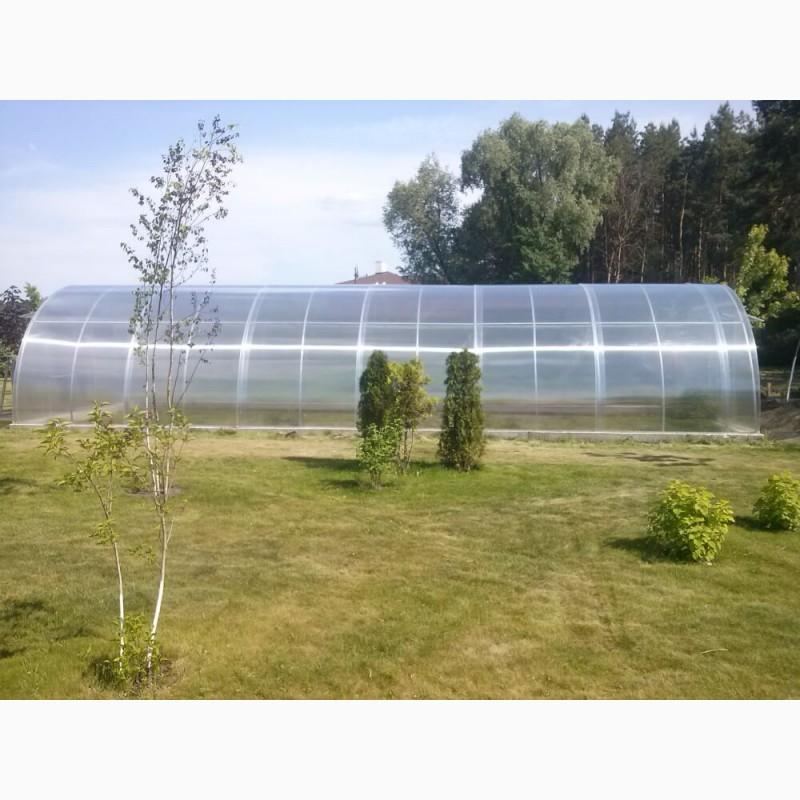

Greenhouse "Almir" 6 m wide from galvanized square pipe with polycarbonate, Kyiv region.

Framework of a greenhousegreenhouse "Almir" is made of galvanized square pipe 30x30 mm with a wall thickness of 1.5 mm. The greenhouse can withstand mechanical loads of about 250 kg/m2. The term of operation of the greenhouse is from 10 years.

One end of the greenhouse has a door and two huts, the other has two huts. To cover the frame, cellular polycarbonate is used, which is made specifically for greenhouses.

Galvanized frame
The frame of the "Almir" greenhouse is made of galvanized square pipe 30x30 mm with a wall thickness of 1.5 mm. Frame parts are galvanized inside and out by hot-dip galvanizing. The distance between the arches is 2 m in frames under the film and 1 m in frames under polycarbonate. The frame has 5 longitudinal rows. The greenhouse can withstand mechanical loads of about 250 kg/m2.

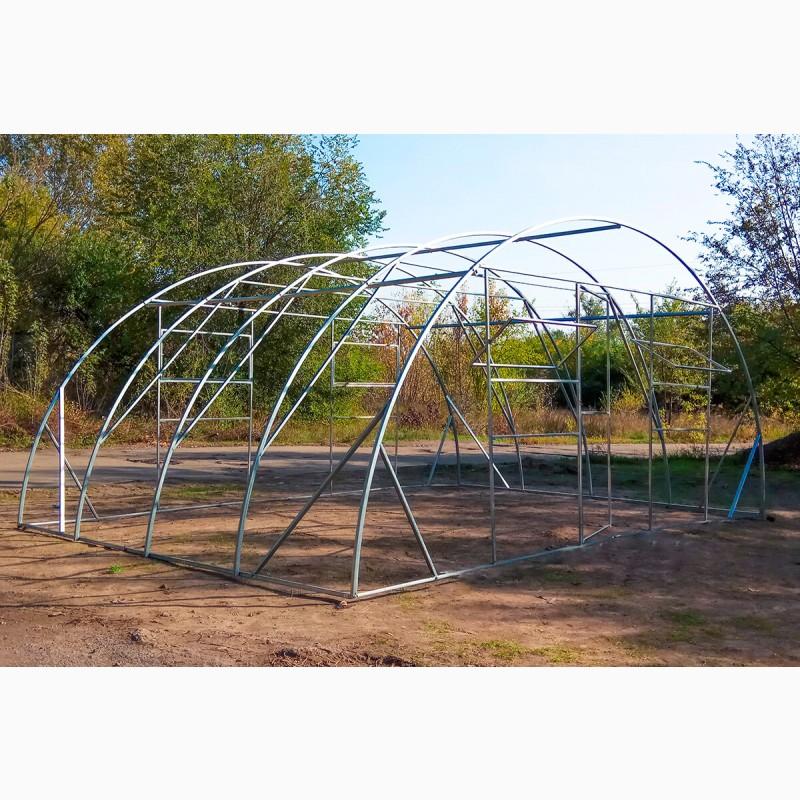

Frame of a greenhouse made of galvanized square pipe
Simple installation
Installation of the greenhouse does not require welding. Frame elements are connected to each other by connecting two pipe ends (telescopic connection) or with the help of corners and tightened with bolts. The heifer kit includes detailed video instructions and a simplified printed version.

Anchor for the stability of the greenhouse
Anchors for stability
The greenhouse kit contains T-shaped anchors. Anchors are attached to the ends of each arch and to the door jambs. Anchors are dug into the soil to a depth of 35-40 cm, which ensures the stability of the frame. When installing the frame on a concrete foundation or a wooden beam, the greenhouse set is supplemented with anchor bolts.

Cellular polycarbonate for greenhouses
Cellular polycarbonate
The greenhouse is covered with high-quality cellular polycarbonate of Ukrainian production. Polycarbonate Soton Nano is made specifically for greenhouses, so it has a high level of protection against UV rays. The thickness of polycarbonate is 4, 6 or 8 mm. The size of the sheet is 6x2.1 and 7x2.1 m. The warranty period of polycarbonate is 10 years (manufacturer's warranty).

Frame of Almir farm greenhouse made of galvanized square pipe
Doors and apartments
"Almir" greenhouses in the standard configuration have 1 door and 2 windows on one end and 2 windows on the opposite end. The second door can be ordered as an option. Doors and windows are fastened with hinges, have handles and latches to prevent accidental opening.

Cellular polycarbonate for greenhouses
Complete set
The greenhouse kit contains everything you need for its installation: detailed installation instructions (video, PDF and printed version), metal frame elements, 1 door, 4 flats, anchors, polycarbonate sheets, a fastening kit consisting of angles, self-tapping screws, bolts, nuts, etc.

Recommended conditions for installation and operation of the greenhouse
The greenhouse must be installed on a level site;
The greenhouse should be installed on the most shaded side of the house;
The greenhouse around the entire perimeter should be dug into the ground to a depth of 35-40 cm;
All metal elements of the kakas must be fixed and tightly tightened.

Frame
Galvanized square pipe 30×30 mm

Width of the greenhouse
6 m.
(//tractor-service.com)
The length of the greenhouse
8 m, 10 m, 12 m, 14 m, 16 m, 18 m, 20 m

High-quality polycarbonate
Service life from 8 to 15 years, high degree of UV protection.

Durability
250 kg/m2.

Door
One door with two flats on one side of the greenhouse and two flats on the other side (the second door can be ordered as an option)

Complete set
Detailed installation instructions, frame elements, 1 door with hinges (the second door is optional), 2 hinges, handles, polycarbonate, anchors, fastening kit consisting of corners, bolts, etc.

Polycarbonate thickness of the greenhouse
4mm, 6mm, 8mm

The assortment includes the following types of greenhouses:
Greenhouse "Almir" 6x8 m from galvanized square pipe with 4 mm polycarbonate - UAH 45,100
Greenhouse "Almir" 6x10 m from galvanized square pipe with 4 mm polycarbonate - UAH 53,400
Greenhouse "Almir" 6x12 m from galvanized square pipe with 4 mm polycarbonate - UAH 61,700
Greenhouse "Almir" 6x14 m from galvanized square pipe with 4 mm polycarbonate - UAH 70,000
Greenhouse "Almir" 6x16 m from galvanized square pipe with 4 mm polycarbonate - UAH 78,300
Greenhouse "Almir" 6x18 m from galvanized square pipe with 4 mm polycarbonate - UAH 86,800
Greenhouse "Almir" 6x20 m from galvanized square pipe with 4 mm polycarbonate - UAH 94,900
Greenhouse "Almir" 6x8 m from galvanized square pipe with 6 mm polycarbonate - UAH 56,200
Greenhouse "Almir" 6x10 m from galvanized square pipe with 6 mm polycarbonate - UAH 66,500
Greenhouse "Almir" 6x12 m from galvanized square pipe with 6 mm polycarbonate - UAH 76,700
Greenhouse "Almir" 6x14 m from galvanized square pipe with 6 mm polycarbonate - UAH 87,000
Greenhouse "Almir" 6x16 m from galvanized square pipe with 6 mm polycarbonate - UAH 97,300
Greenhouse "Almir" 6x18 m from galvanized square pipe with 6 mm polycarbonate - UAH 107,600
Greenhouse "Almir" 6x20 m from galvanized square pipe with 6 mm polycarbonate - UAH 117,800
Greenhouse "Almir" 6x8 m from galvanized square pipe with 8 mm polycarbonate - UAH 59,000
Greenhouse "Almir" 6x10 m from galvanized square pipe with 8 mm polycarbonate - UAH 69,700
Greenhouse "Almir" 6x12 m from galvanized square pipe with 8 mm polycarbonate - UAH 80,500
Greenhouse "Almir" 6x14 m from galvanized square pipe with 8 mm polycarbonate - UAH 91,200
Greenhouse "Almir" 6x16 m from galvanized square pipe with 8 mm polycarbonate - UAH 101,900
Greenhouse "Almir" 6x18 m from galvanized square pipe with 8 mm polycarbonate - UAH 112,500
Greenhouse "Almir" 6x10 m from galvanized square pipe with polycarbonate 8 mm - UAH 123,300
