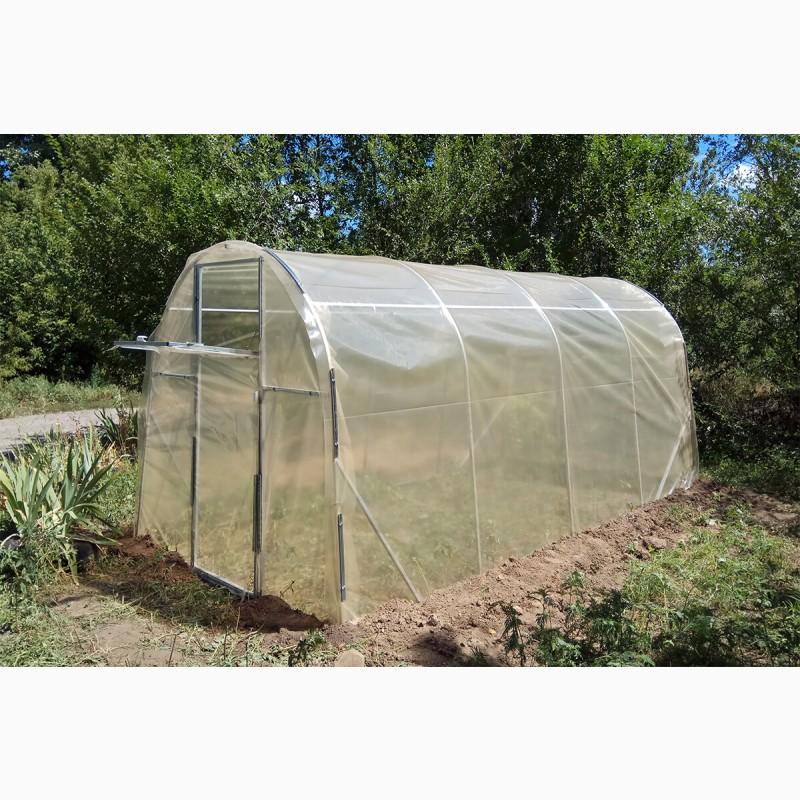

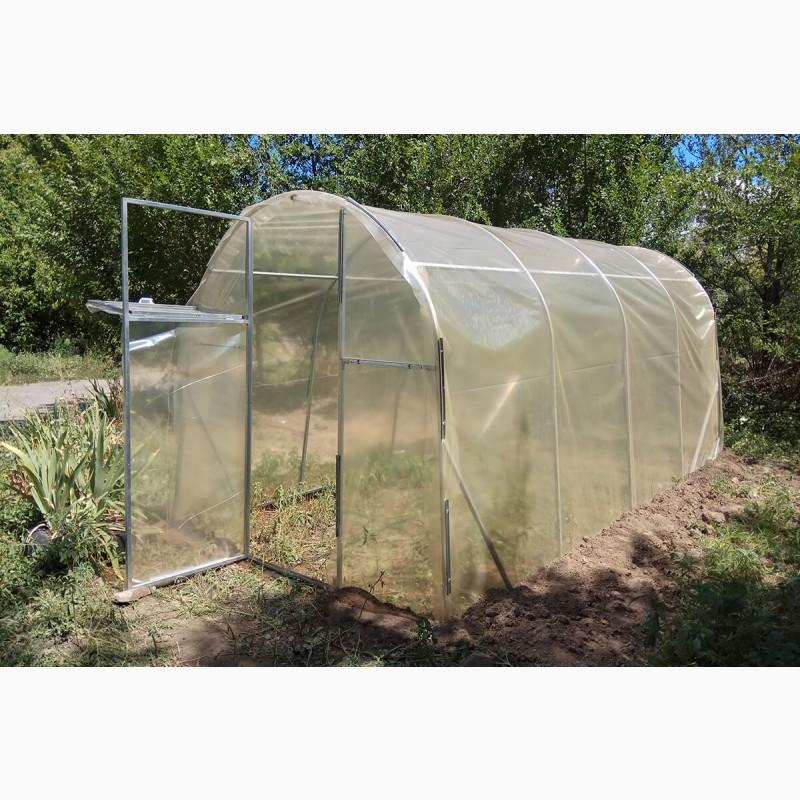

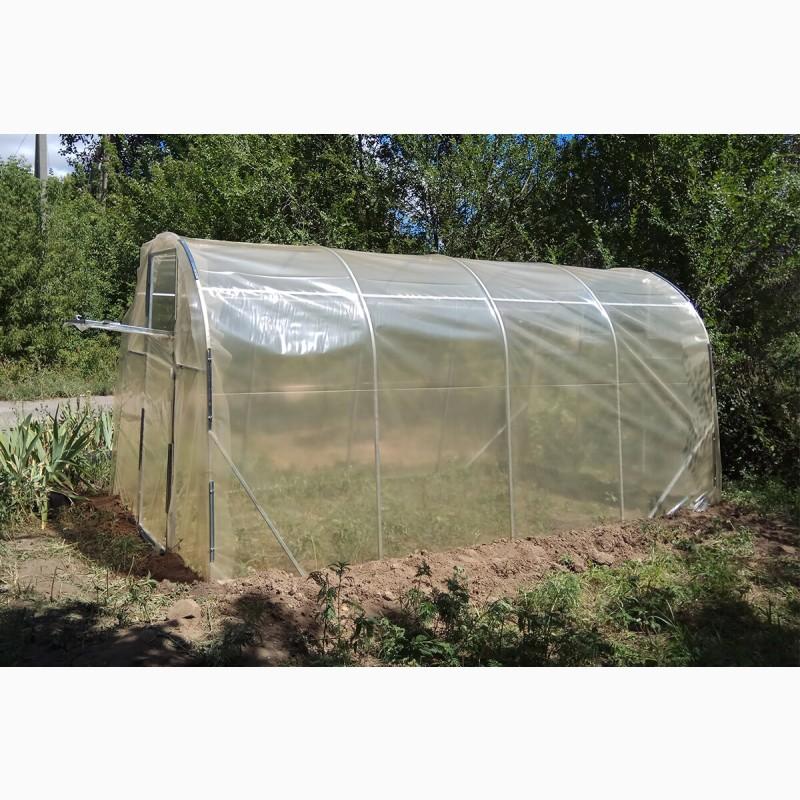

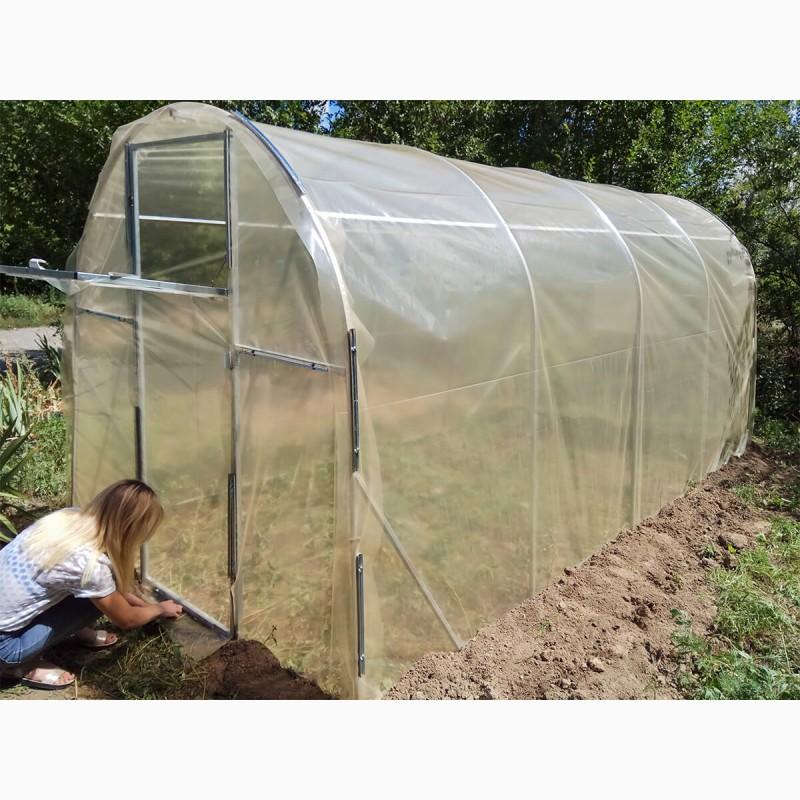

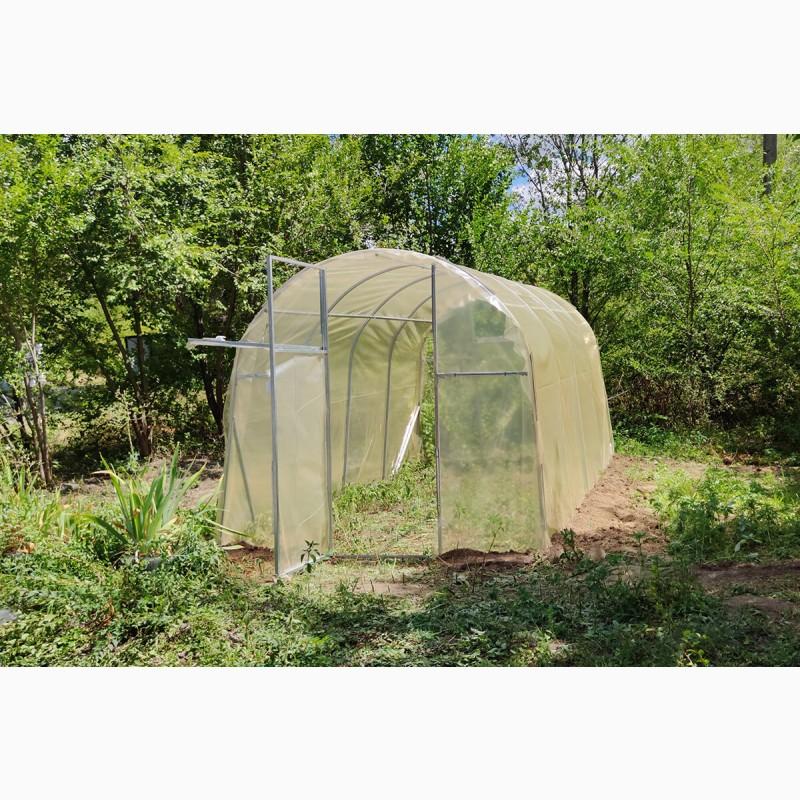

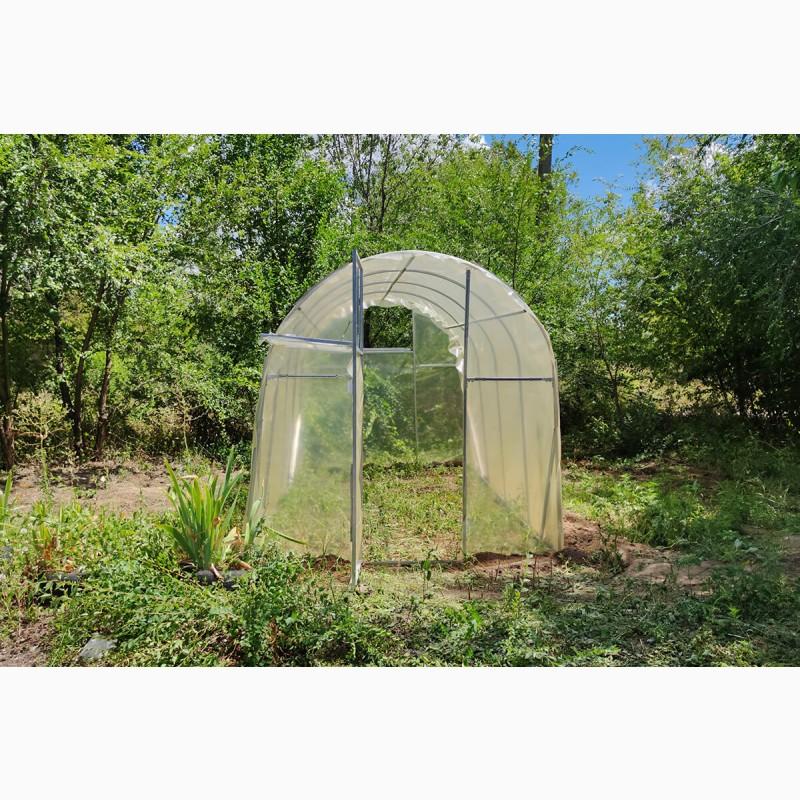

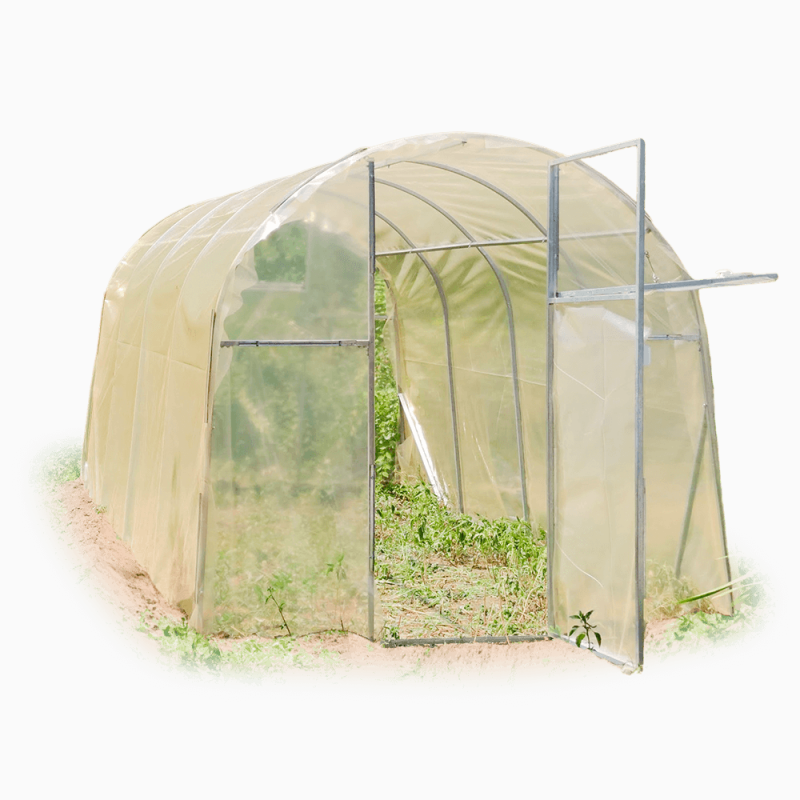

Greenhouse "Vegan" 2 m wide with film, Kyiv region.

The assortment includes the following species:
Greenhouse "Vegan" 2×3 from galvanized square pipe with 120 micron film - UAH 5,820
Greenhouse "Vegan" 2×3 made of galvanized square pipe with a film of 200 μm - UAH 6,600
Greenhouse "Vegan" 2×3 from galvanized square pipe with 150 micron film - UAH 6390
Greenhouse "Vegan" 2×4 made of galvanized square pipe with a film of 120 μm - UAH 6400
Greenhouse "Vegan" 2×4 from galvanized square pipe with 150 micron film - UAH 6,990
Greenhouse "Vegan" 2×4 made of galvanized square pipe with a film of 200 μm - UAH 7150
Greenhouse "Vegan" 2×6 from galvanized square pipe with 120 micron film - UAH 7300
Greenhouse "Vegan" 2x6 made of galvanized square pipe with a film of 150 μm - UAH 7650
Greenhouse "Vegan" 2x6 made of galvanized square pipe with a film of 200 μm - UAH 7,820

In the standard configurationgreenhouse, the film is attached to the frame with pressure strips. In the extended configuration (+ UAH 1,400), a zigzag profile is used to fasten the film.

Galvanized frame
The frame of the "Vegan" greenhouse is made of galvanized square pipe 20x20 mm with a wall thickness of 1 mm. Frame parts are galvanized inside and out by hot-dip galvanizing. The distance between the arches is 1 m. The 2 m wide frame has 5 longitudinal rows. The greenhouse can withstand mechanical loads up to 180 kg/m2.

Greenhouse frame made of galvanized square pipe
Simple installation
Installation of the greenhouse does not require welding. Frame elements are connected to each other by connecting two pipe ends (telescopic connection) or with the help of corners and tightened with bolts. The greenhouse kit includes detailed video instructions and a simplified printed version.

Anchors for the stability of the greenhouse
Anchors for stability
The greenhouse kit includes T-shaped anchors. Anchors are attached to the ends of each arch and to the door jambs. Anchors are dug into the soil to a depth of 20-25 cm, which ensures the stability of the frame. When installing the frame on a concrete foundation or a wooden beam, the greenhouse set is supplemented with anchor bolts.

Greenhouse Vegan made of galvanized square pipe under film
Greenhouse film
The greenhouse is equipped with a light-stabilized film. The life of the film is 3 years (manufacturer's warranty). Tape film performs the following functions:

Transmits the light necessary for the rapid growth of plants;
Retains harmful ultraviolet rays for plants;
Protects plants from rain, snow, wind, etc.
Clamping bar for attaching the film to the greenhouse
Fixing the film. Pressure bars
In the standard configuration of the greenhouse, the film is attached to the frame using 40 cm long metal clamping bars. Each bar has 2 holes for bolts. The edge of the film is placed on the frame element, pressed with strips and tightened with bolts.
Video

Zigzag profile for attaching the film to the greenhouse
Fixing the film. Zigzag profile
In the extended configuration of the greenhouse, the film is attached to the frame using a special fastener - a zigzag profile. The zigzag profile consists of two elements — a metal U-shaped profile that is attached to the frame, and a metal zigzag that clamps the edge of the film installed in the profile.
Video
(//tractor-service.com)
Vegan greenhouse made of galvanized square pipe under film
Doors and apartments
"Vegan" greenhouses in the standard configuration have a door with a window on one end and a window on the opposite end. The second door can be ordered as an option. Doors and windows are fastened with hinges, have handles and latches to prevent accidental opening. The size of the door is 65x183 cm.

Kit for mounting a greenhouse under a film
Complete set
The greenhouse kit contains everything you need for its installation: detailed installation instructions (video, PDF and printed version), metal frame elements, doors with a panel, a panel, anchors, film, film fasteners, a fastening kit consisting of angles, bolts, nuts, etc.

Recommended conditions of operation and installation of a greenhouse
The greenhouse must be installed on a level site;
The greenhouse should be installed on the most shaded side of the house;
The greenhouse around the entire perimeter should be dug into the ground to a depth of 20-25 cm;
All metal elements of the frame must be fixed and tightly tightened;
In winter, the frame is subjected to a significant load due to precipitation. To avoid deformation of the frame, the film must be removed.

The length of the greenhouse
3 m, 4 m, 6 m

Frame
Galvanized square pipe 20x20x1 mm

The width of the greenhouse
2 m

High-quality film
3-year warranty, high degree of UV protection.

The thickness of the greenhouse film
120 µm, 150 µm, 200 µm

Film mount
Compression bar, Zigzag profile

Strength
180 kg/m2.

Door
One door with a door on one side of the greenhouse and a door on the other side (the second door can be ordered as an option)

Complete set
Detailed installation instructions, frame elements, 1 door with a door (the second is optional), a door, handles, film, film fixing, anchors, a fastening kit consisting of corners, bolts, etc. info.
