NTS-5 tractor semi-trailer, Zaporizhzhia region.

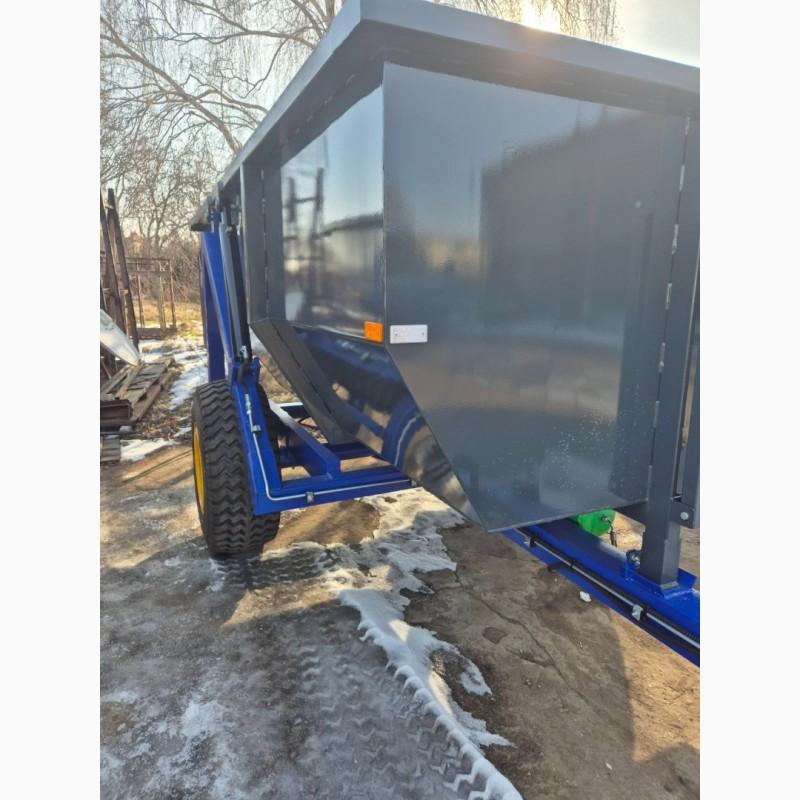

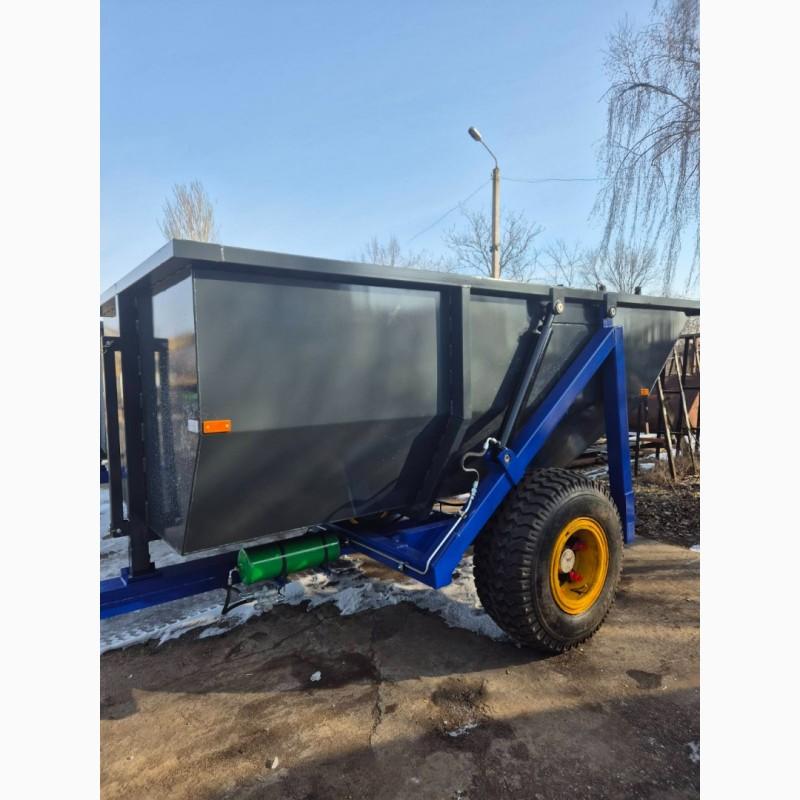

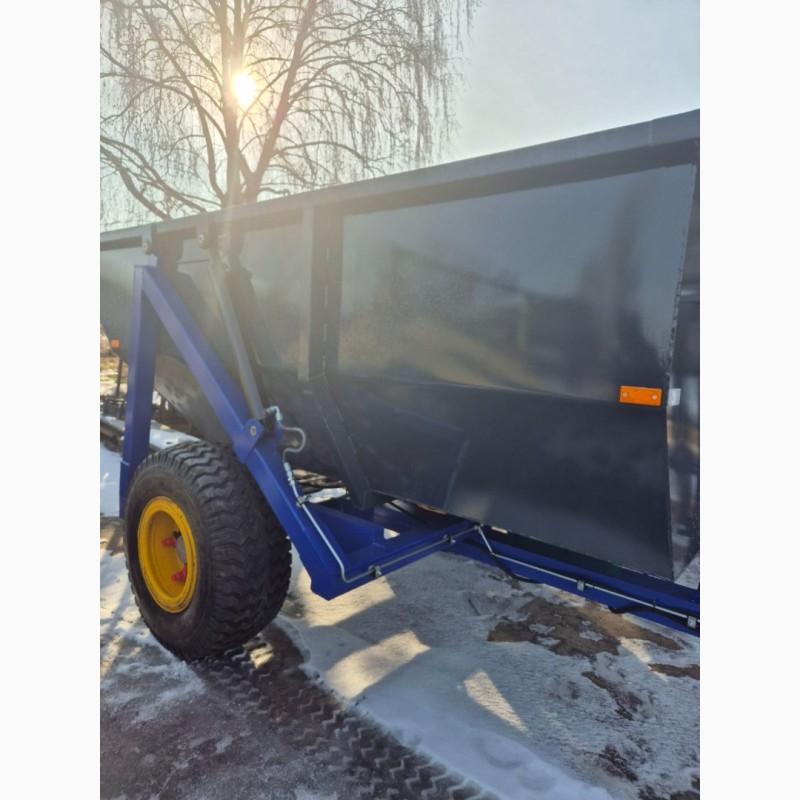

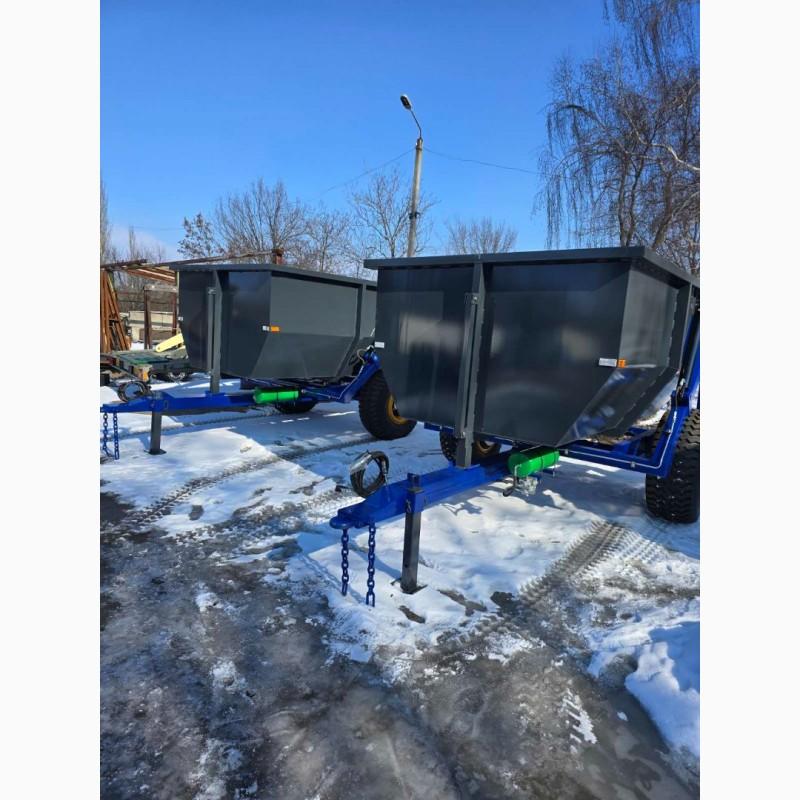

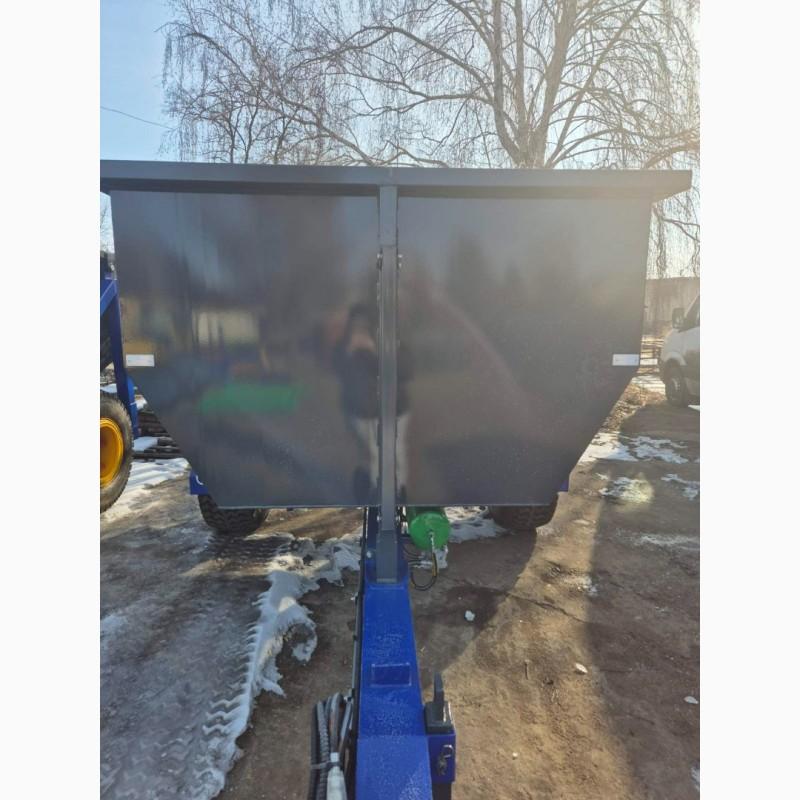

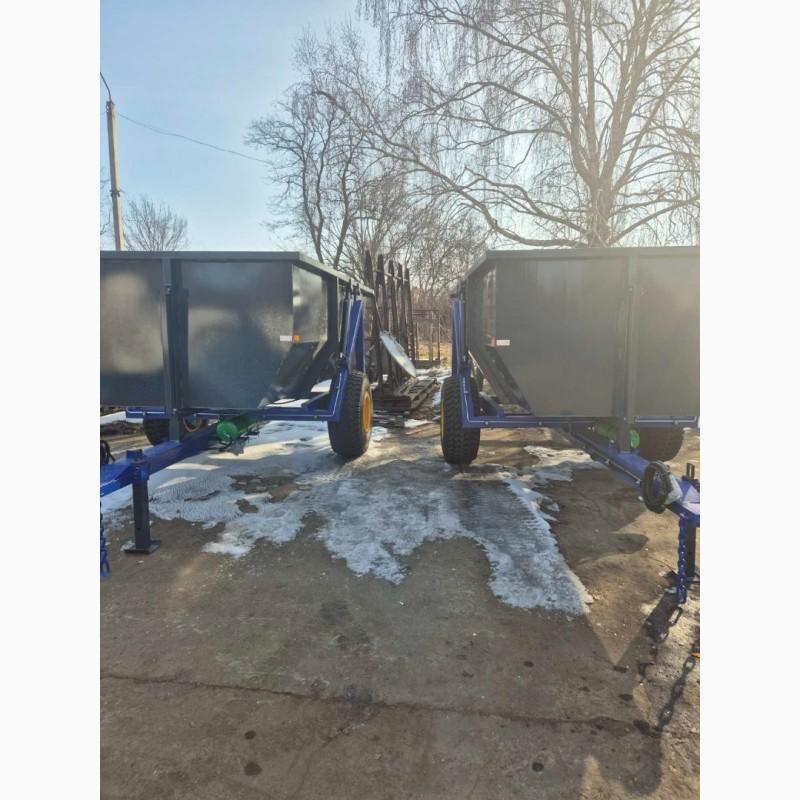

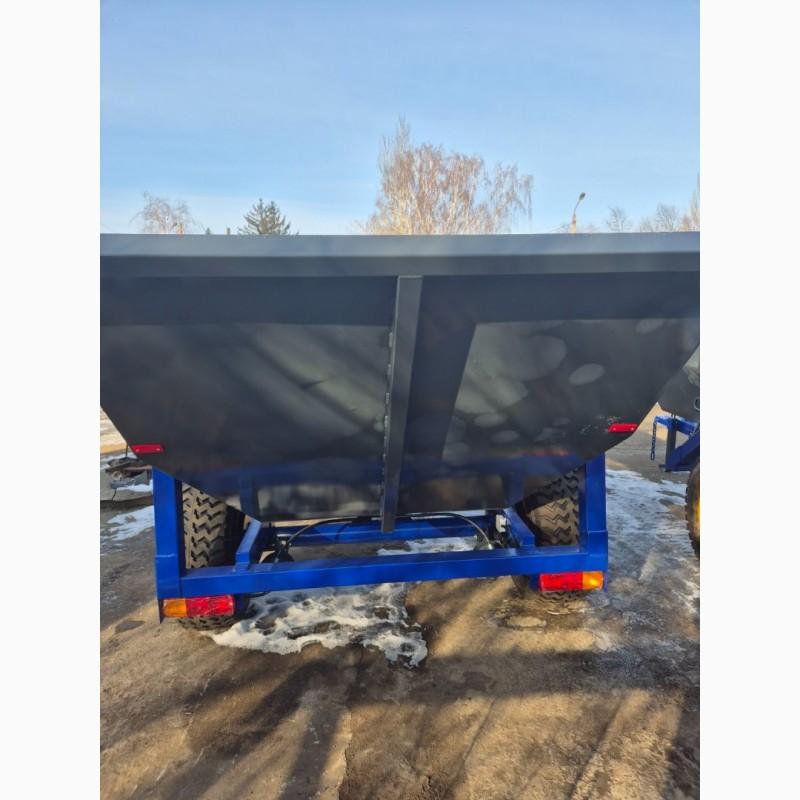

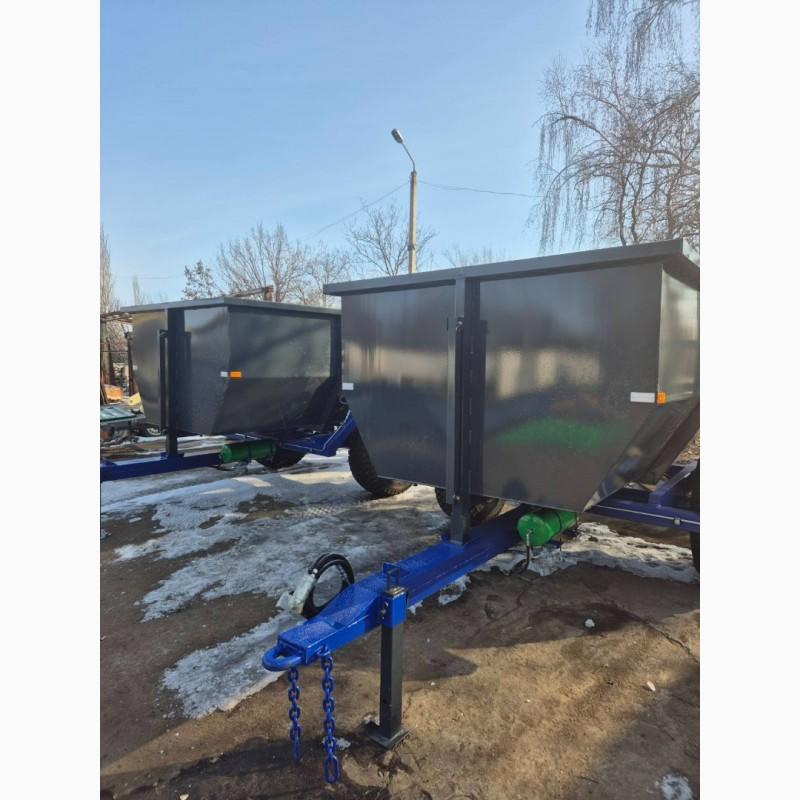

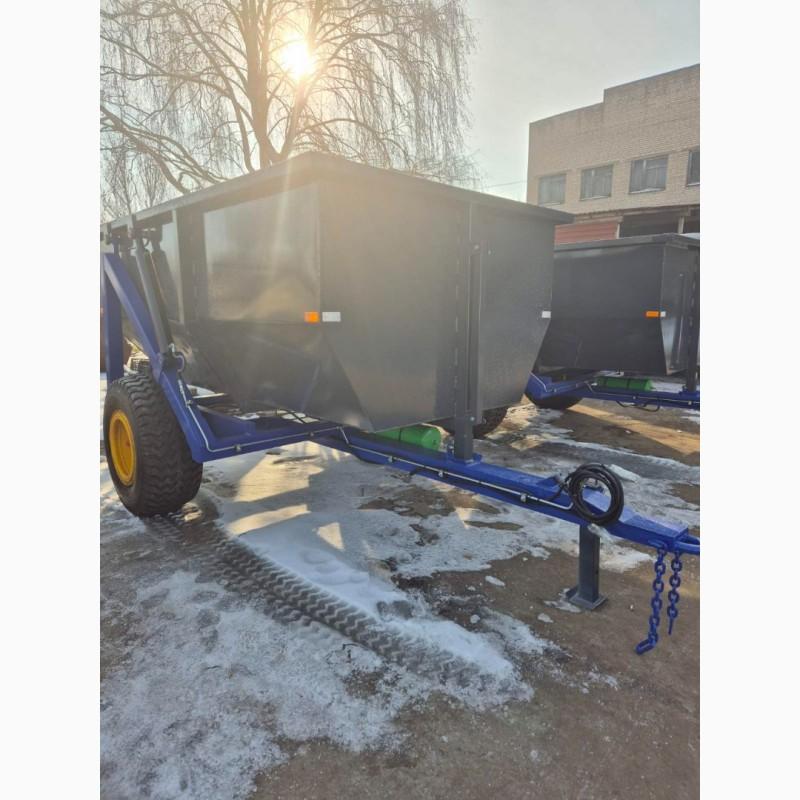

NTS-5 dump tractor semi-trailer
The NTS-5 tractor semi-trailer is compact and performs well in smallwarehouses for the transportation of grains, seeds,legumes. It is also used for transporting semi-liquid, solid and artificial cargoes. It is used in various climatic conditions. It has powerful technical and structural characteristics.

Design characteristics of the semi-trailer
The cargo body of the NTS-5 trailer is sealed and can be made of metal with a thickness of 3, 4 or 5 mm. The volume of such a body is 8m3. For convenience, there is a drain plug in the bottom of the body. The frame of the semi-trailer is made of profiled pipes 5 mm thick, size 120x80 and 100x100, and the drawbar is made of two hot-rolled 16 channels. Particular attention should be paid to the execution of the coupling loop. It has the possibility of height adjustment and a changeable sleeve, which facilitates maintenance during operation. The rear side of the body is oriented towards self-unloading of the transported cargo when the body is lifted. Such unloading is achieved thanks to the tilting angle of the body at 70o by powerful hydraulic cylinders with a rod of 50 mm. The semi-trailer is easily aggregated with tractors with a capacity of 80 hp - 100 hp. Equipped with an improved running system. Thanks totires larger size - 16.5/70-18, it is possible to work both on asphalt roads and in field conditions. Also, the presence of light and warning signals on the NTS-5 dump trailer makes it possible to move calmly on public roads. Made of wear-resistant super-strong materials.

Technical characteristics of the NTS-5 tractor semi-trailer:
Overall dimensions: Length - 5160mm, width - 2490mm, height - 2135mm
Transport speed: from 30 km/h
Unloading angle: 70 degrees
Carrying capacity: 6500 kg(//tractor-service.com)
Body volume: 8m3
Weight: 1.5 tons.
Height during unloading: 4.4m
Advantages of the NTS-5 tipper semi-trailer
Easy to load/unload
Maneuverability, high passability in any conditions
Elementary in maintenance and application
Reliable, long service life with proper timely maintenance.
The price of the NTS-5 tipper semi-trailer is available.
- We work with any payment method (cash/non-cash payment)
- Flexible discount system!
- Delivery is possible both by our and accompanying cargo.
