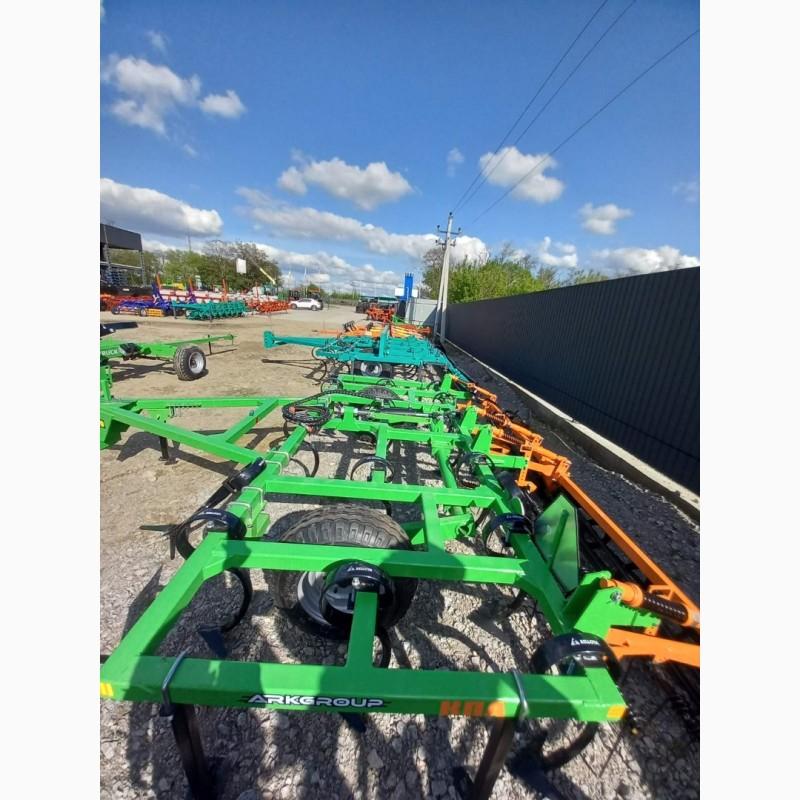

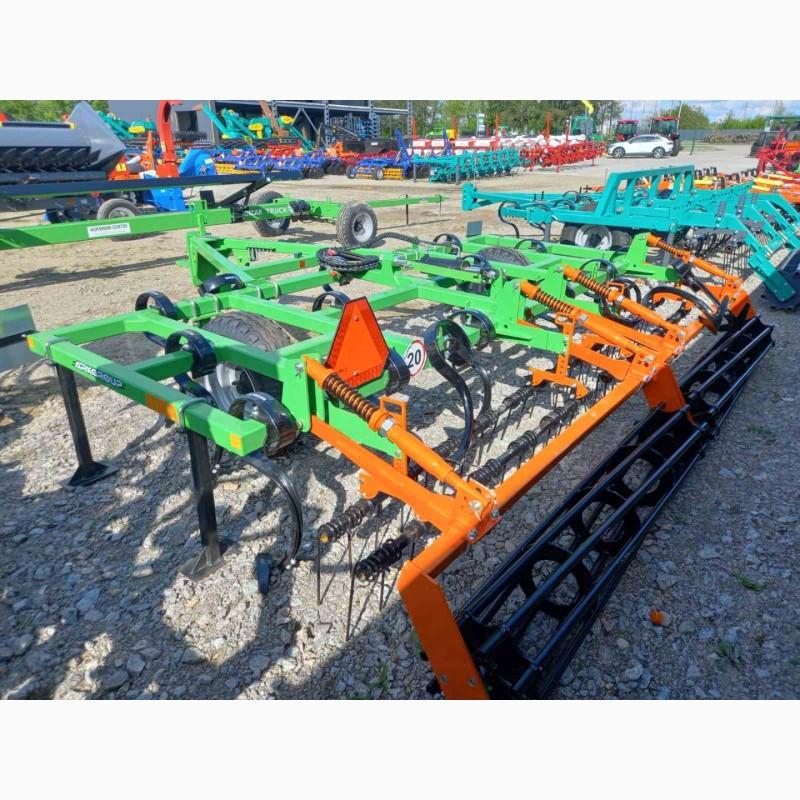

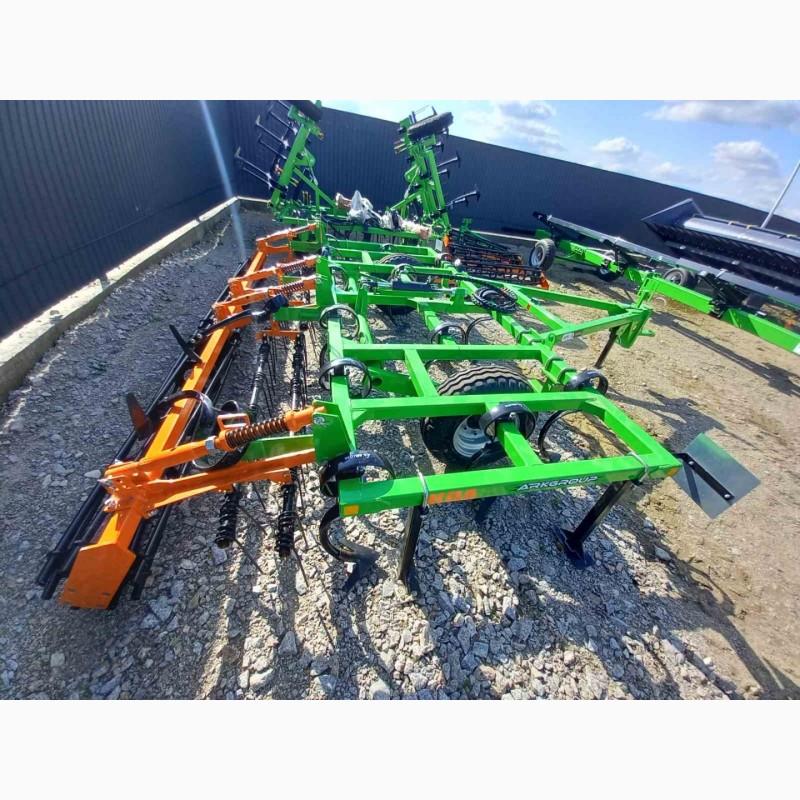

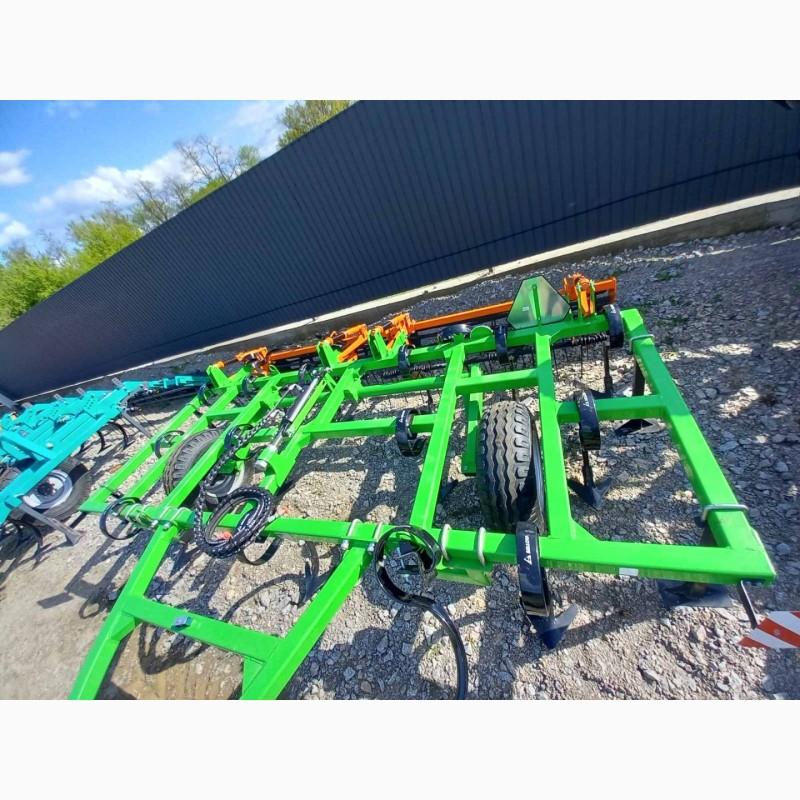

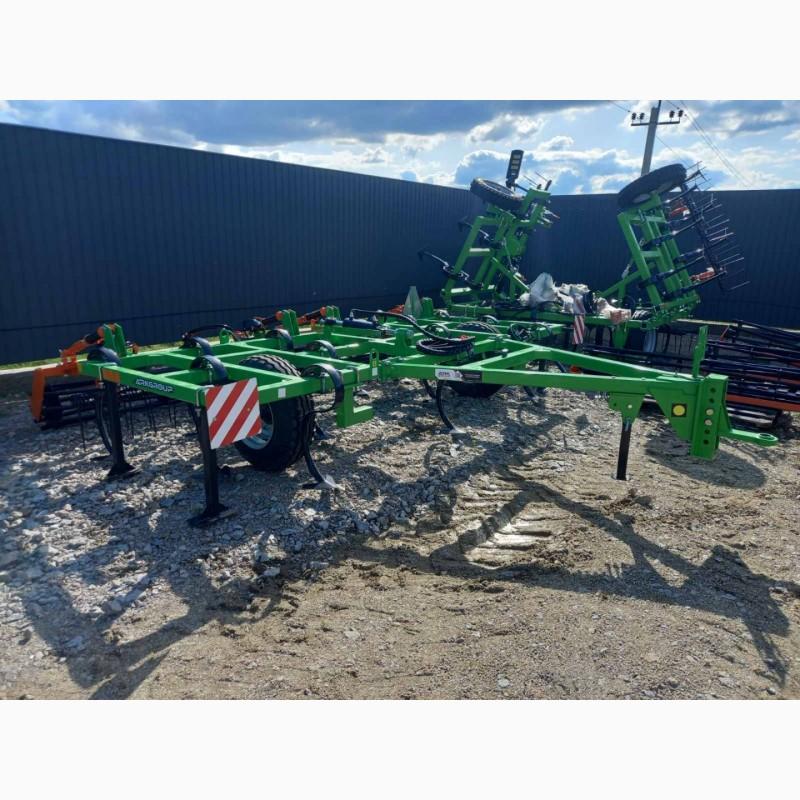

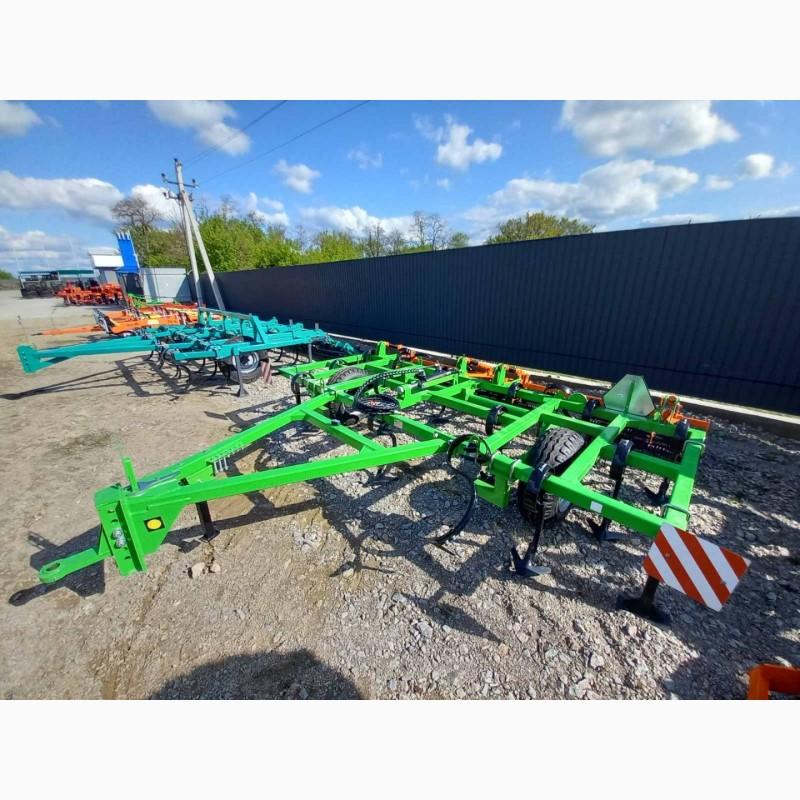

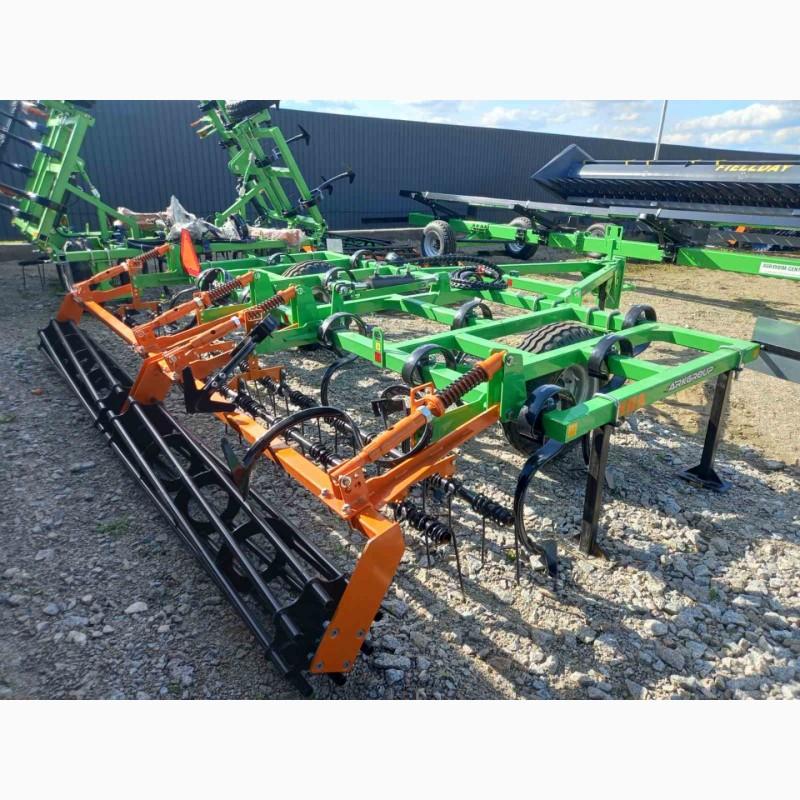

Trailed cultivator of continuous cultivation KPA - 4, Kirovohrad region.

Series cultivatorsKPA - universal, wide-grip, designed for resource-saving pre-sowing and steam soil cultivation, trimming and combing weeds, as well as leveling and compacting the soil surface for sowing. It is used on all types of soil due to its versatility in the form of many adjustments of the cultivator itself and its attached equipment.
The cultivator uses a foot, which, due to the changed angle of attack of the processing, provides stability of the work of its front and rear parts. In this way, the furrow and the load on the power unit are reduced.
 The attached equipment, which has no analogues, structurally allows you to adjust the height of the rollers and the comb independently of each other by changing the angle of attack of the comb.
 It is used for pre-sowing soil cultivation, leveling and compacting the area for sowing, combing and cutting weeds.
- Depth adjustment due to screw;
- Bellota Working Bodies;
- A double-row rake is installed on the unit, which allows you to adjust the depth and angle of attack;
- The roller is self-cleaning, without a four-speed shaft with spring shock absorbers;
- Frame beam 80x80x6mm;
- Height adjustment of the trailer;
-The support wheels are located on one axis, which allows to ensure the parallelism of the cultivator movement relative to the soil;(//tractor-service.com)
- High transport position of the unit from working parts to the ground (20-70 cm).
The method of aggregation is trailed.
Productivity, ha/h 4.8
Working speed, km/h up to 12
Transport speed, km/h up to 20
Working width of grip, mm 4000
Processing depth, cm 6-12
The number of paws, pcs. 17
Paw width, mm 260-330
Machine weight, kg 1160
Tractor power (not less) 82 hp
