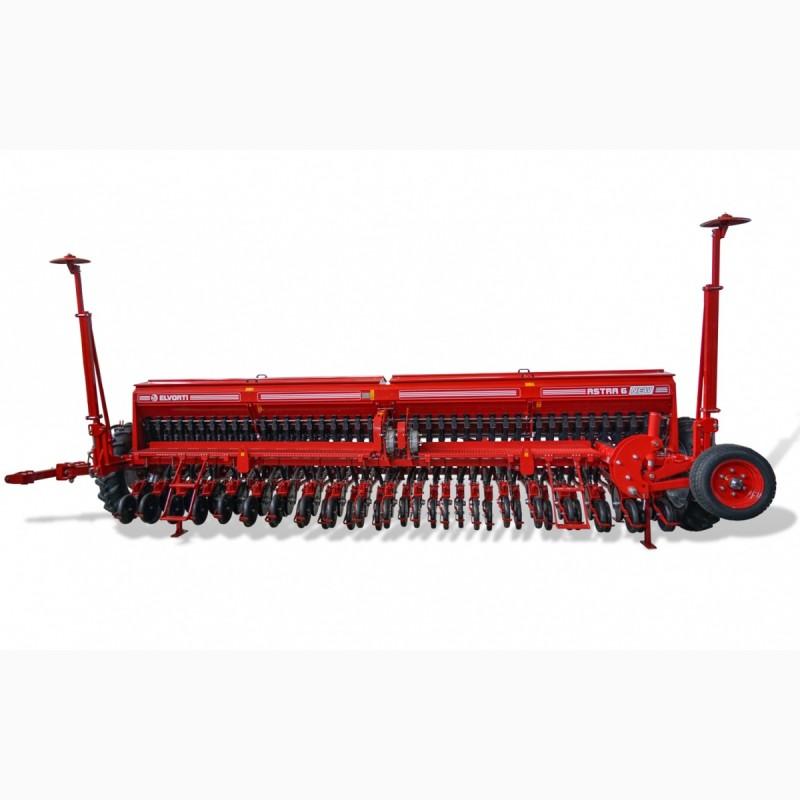

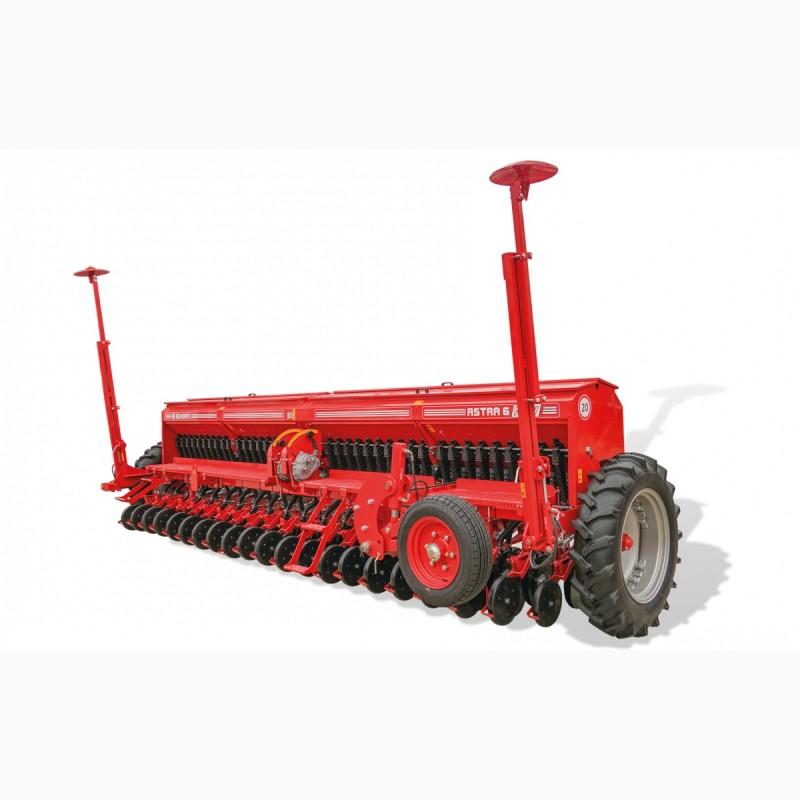

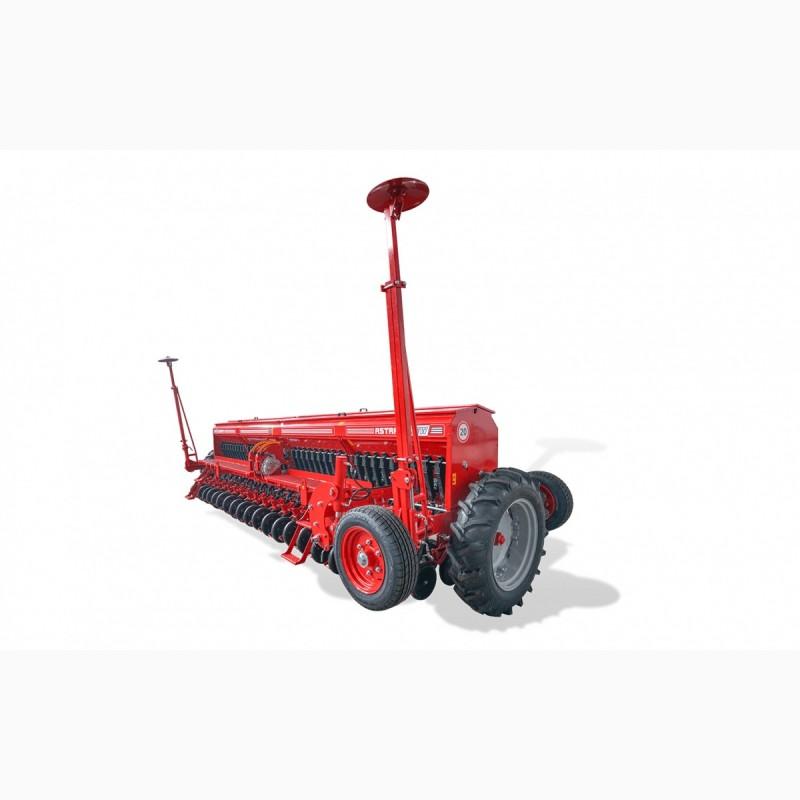

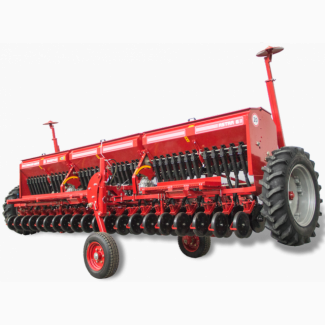

Grain seeder ASTRA 6 NEW, Kirovohrad region.

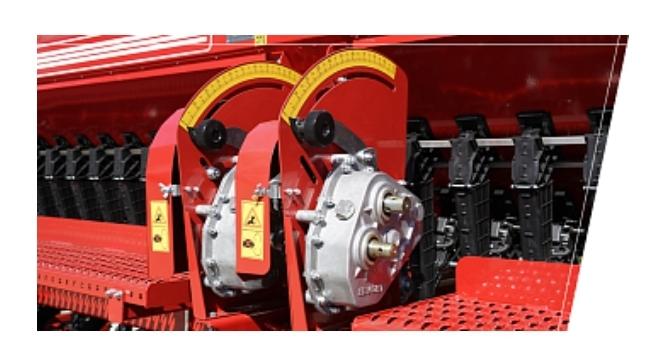

Grain planter ASTRA 6 NEW (new sowing device, new depth adjustment, set of rolling rollers 330x70 variators, hopper 2000 l (1300/700), rotary transport device, hydroficated markers, rolling rollers, coulter with maintenance-free hub, coulter pressure up to 130 kg., withoutcontrol system sowing)

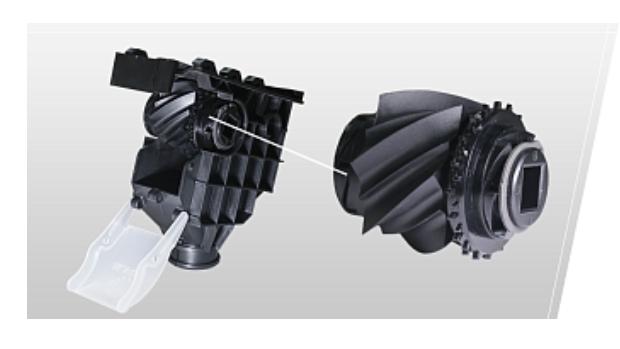

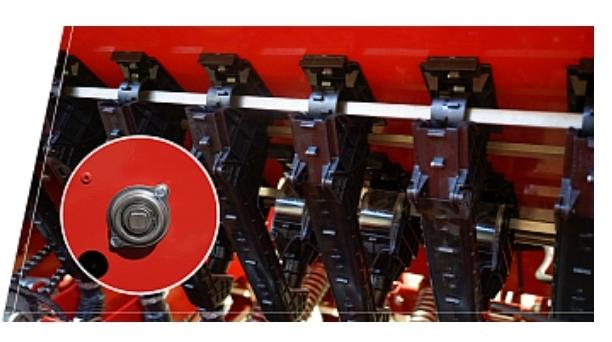

New sowing machine
Made of polymer materials resistant to aggressive environment and corrosion. It has a double coil: a screw coil for sowing grain and leguminous crops and a pin coil for sowing small-seeded crops and grass seeds of any shape and size. The sowing reel smoothly and evenly feeds the seed without injuring it, which increases the accuracy of seed distribution in the row.

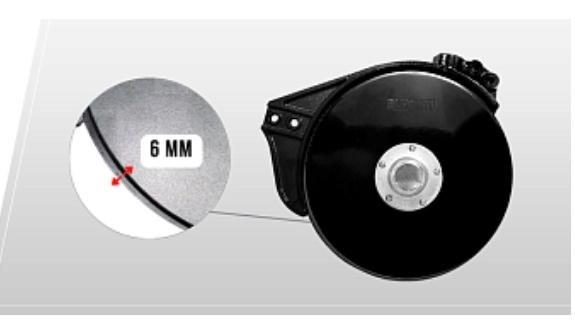

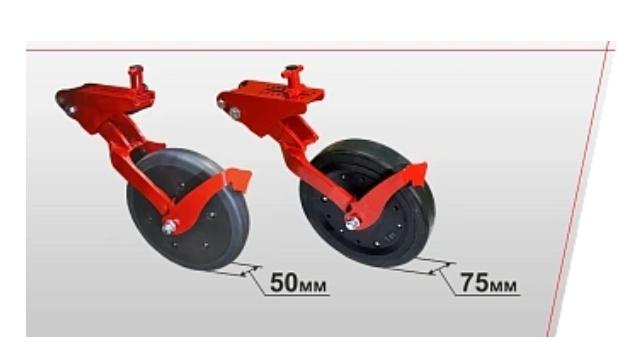

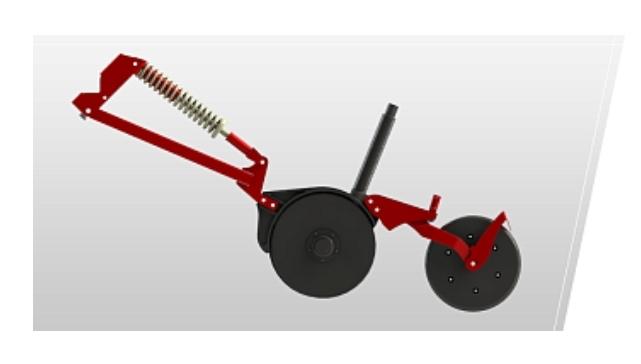

CoultSystem leash system
The new design of the CoultSystem leash system with a roller and an improved coulter pressure mechanism up to 75 kg with a spring of increased stiffness and a hydraulic press ensures high-quality, uniform sowing according to traditional technology with the possibility of sowing in fields with minimal soil cultivation and a small amount of crop residues.

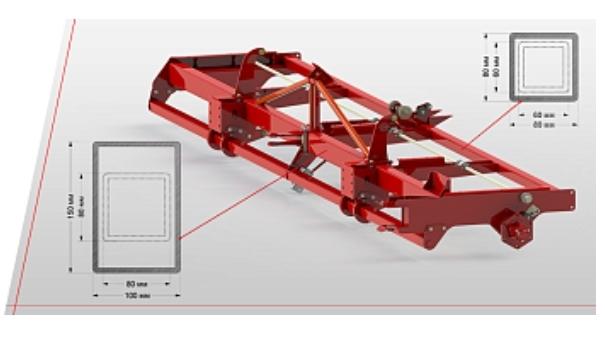

Reinforced frame
The new design of the frame with an increased section of pipes 100x150 mm and 80x80 mm compared to the previous generation of ASTRA planters increases reliability and service life. At the same time, it provides maximum access to the working bodies of the planter for maintenance.

Fast operation of the FastTrai transport device
FastTrai trailer transport device - allows you to transfer the seeder in 2 minutes from the transport position to the working position and vice versa, which saves time and facilitates the work of the operator. FastTrai device with a transport width of 2.65 m for safe movement on public roads.

Up to 20% fuel savings compared to competitors
The planter is made of high-strength steels and is ideal for combining with tractors with a power of 90 hp or more, which allows you to save fuel during operation compared to competitors.

Unit type semi-trailer
Width of capture, m 6
Working speed, km/h 9 - 12
Number of rows, pcs. 40
Productivity, ha/h 5.4 - 7.2
Sowing depth, mm 20 - 80
Coulter pressure, kg/cm² 70
Sowing rates for seeds, kg/ha 1.5 - 400(//tractor-service.com)
Row width, mm 150
Sowing rates for fertilizers, kg/ha 25 - 200
Total capacity of seed hoppers, l (dm³) 1,326
Total capacity of fertilizer bunkers, l (dm³) 674
Overall dimensions, during transportation, mm 8,250 x 2,650 x 3,970
Overall dimensions, in working condition, mm 5,200 x 7,000 x 1,850
It is aggregated with tractors with higher power, hp. 90
Mass, kg 3,600

Unit type semi-trailer
Width of capture, m 4
Working speed, km/h 9 - 12
Number of rows, pcs. 26
Productivity, ha/h 3.6-4.7
Sowing depth, mm 20 - 80
Coulter pressure, kg/cm² 75
Sowing rates for seeds, kg/ha 1.5 - 400
Row width, mm 150
Sowing rates for fertilizers, kg/ha 25 - 200
Total capacity of seed hoppers, l (dm³) 850
Total capacity of fertilizer bunkers, l (dm³) 450
Overall dimensions, during transportation, mm 6400 x 2700 x 2800
Overall dimensions, in working condition, mm 4550 x 5000 x 1 850
It is aggregated with tractors with higher power, hp. 80
Weight, kg 3,000
