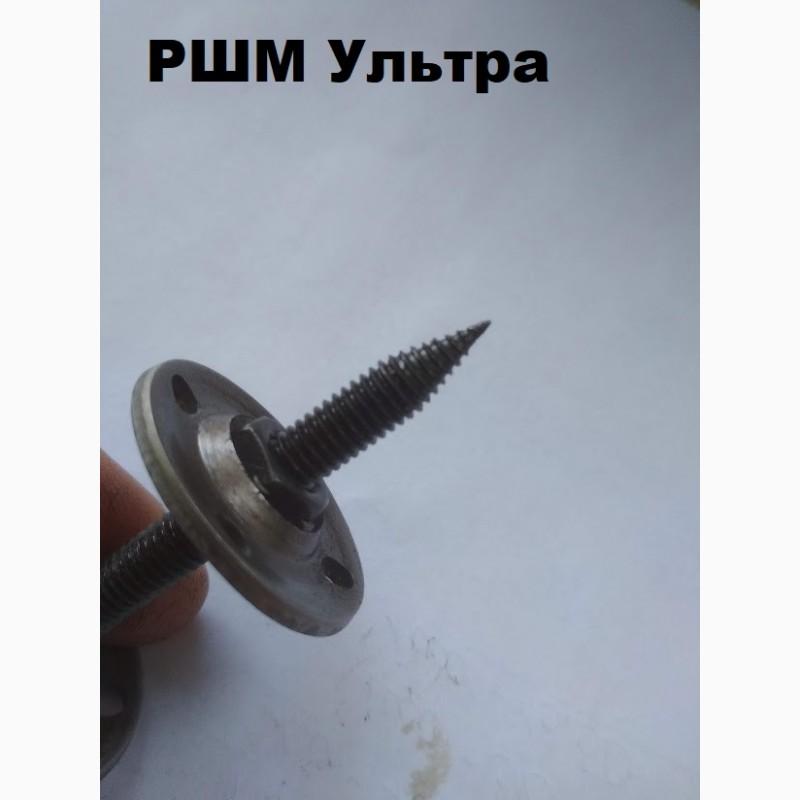

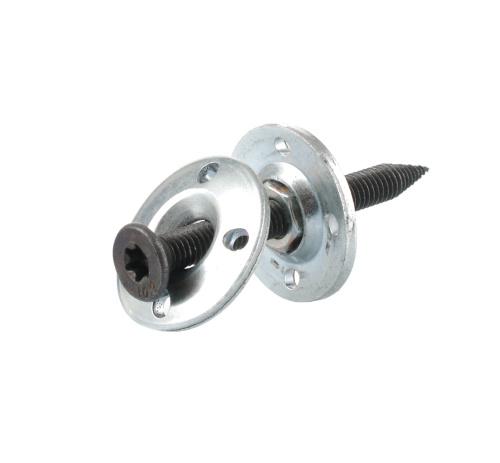

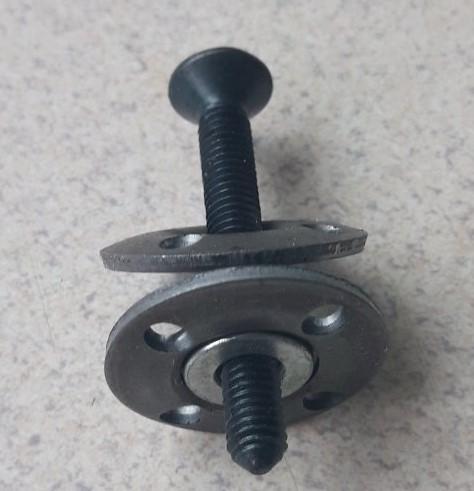

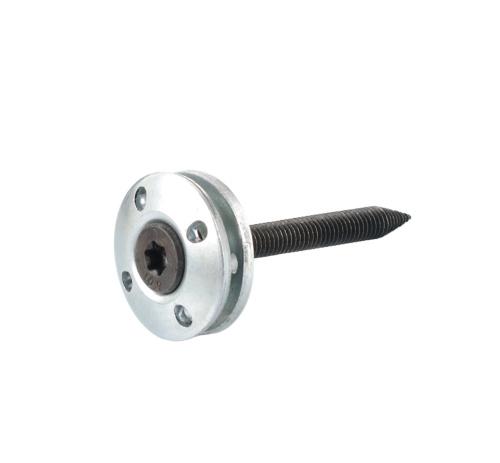

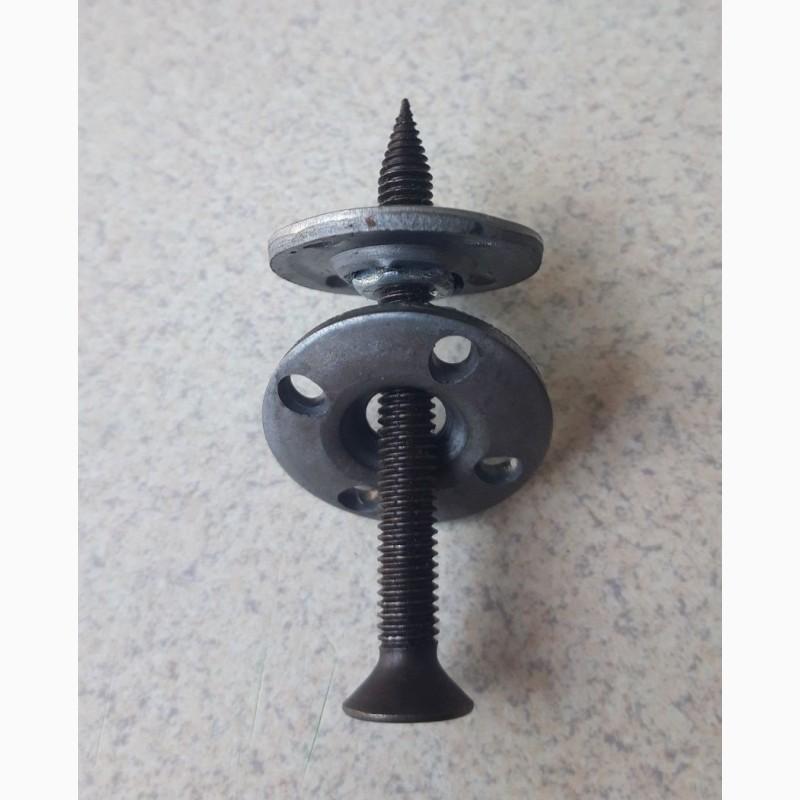

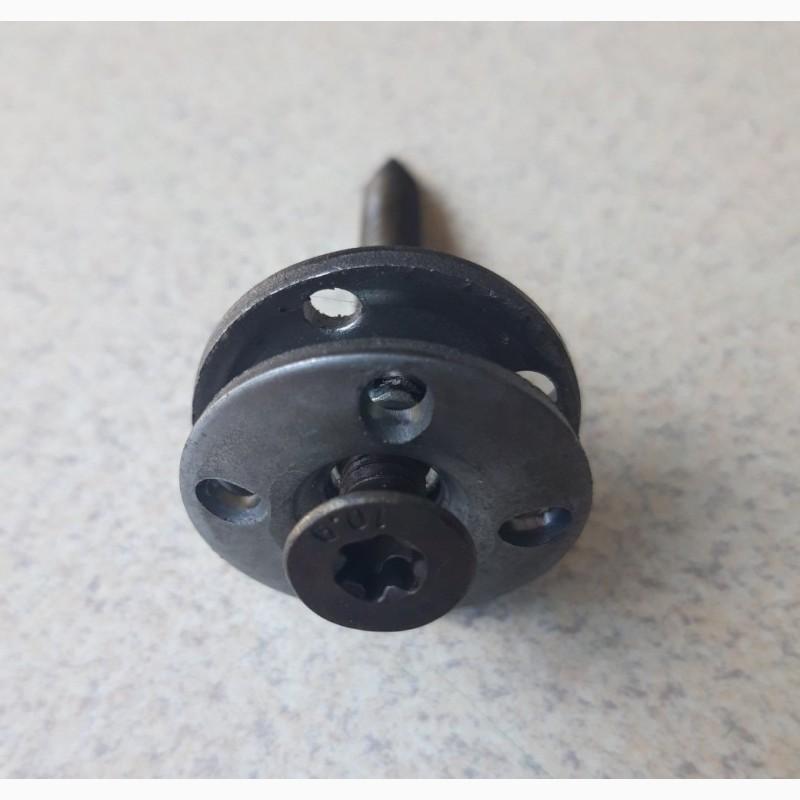

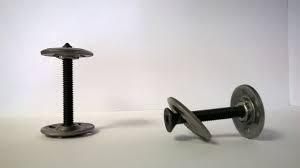

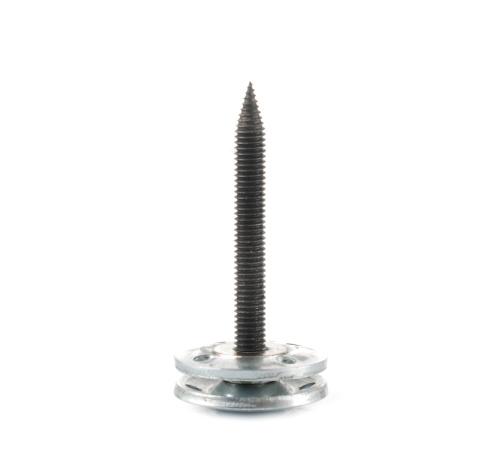

Mechanical connectors RShM Ultra (Vulkan Krug), Kharkiv region.

Mechanical connectors RShM are intended for connecting a conveyor belt with a fabric frame 8 mm thick strength up to 2500 N/mm.
Easy installation

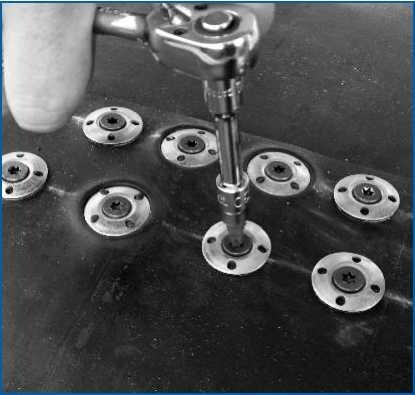

With the mechanical connectors RSHM, it is easy to connect or repair the conveyor belt directly on the conveyor with the help of simple hand or electric tools.
It is not necessary to purchase expensive special instruments or devices.
Fields of application:
Excellent results of connecting tapes intended for transportation • sand • clay • crushed stone • ore •coal •grain
Low price
The cost of a butt joint does not exceed the cost of one meter of tape in a 2-row scheme.
(//tractor-service.com)
How it works

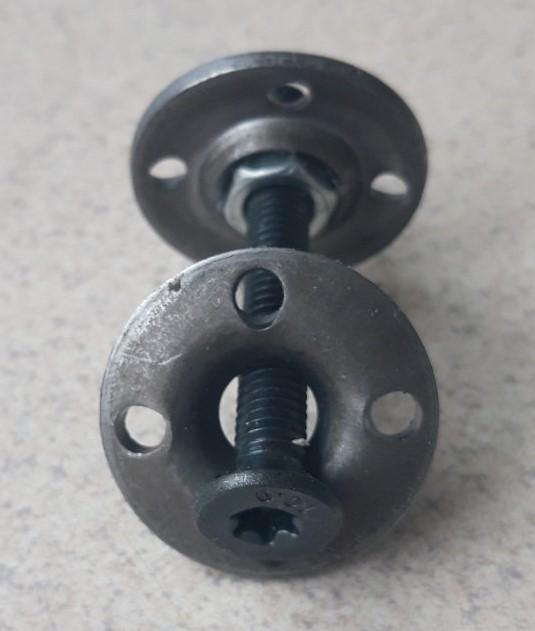

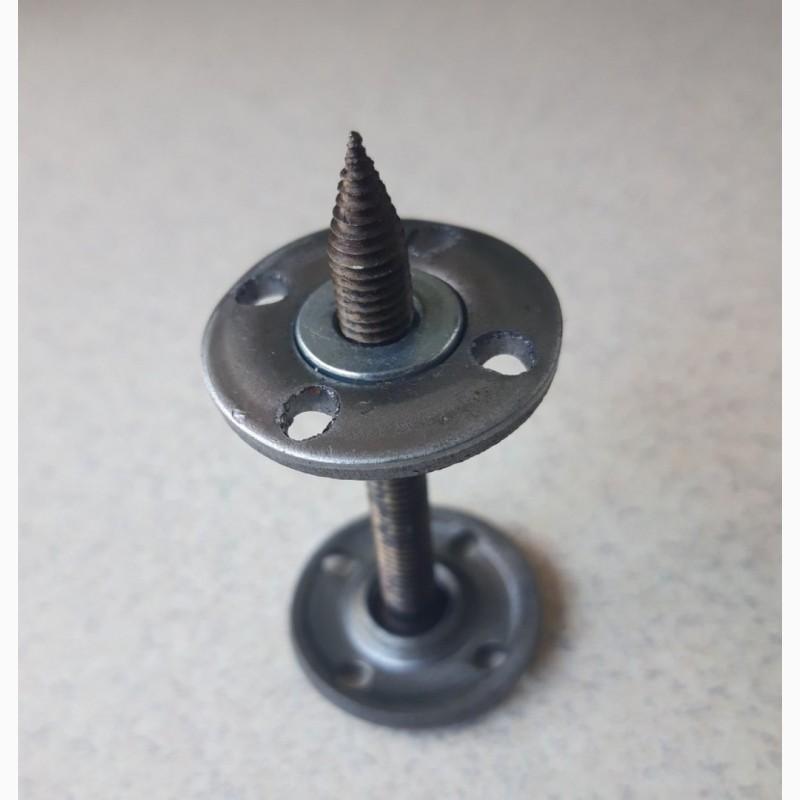

The principle of joining the tape consists in providing the calculated force of compression of the tape web with screws at the joint with the help of pressure washers installed in a certain order.
Selection of connection schemes

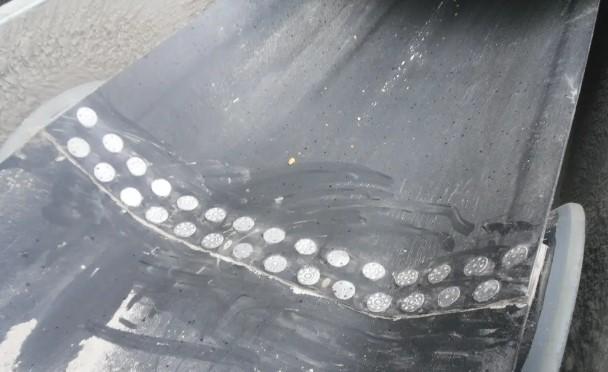

Connection schemes in 2 rows, 5 rows, 7 rows allow connecting conveyor belts with a thickness of 8 mm to 21 mm with different breaking forces.
The number of RSHM connectors for joining a tape with a width of 1000 mm:
2 rows = 42 pcs. (tape strength up to 800 N/mm)
5 rows = 120 pcs. (tape strength up to 1000 N/mm)
7 rows = 158 pcs. (tape strength up to 1600 N/mm)

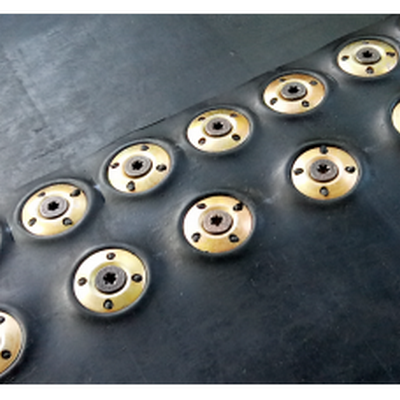

Thanks to the profiled washers with a low profile, the connecting elements of the RSHM are embedded in the tape cover and do not damage the cleaners, rollers and lining of the drums.
