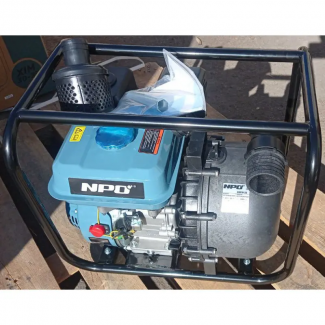

Motor pump for chemical liquids and fertilizers XIM 30-35 NPO, Odesa region.

Motor pump units of the MR, KHIM and BUR series consist of acentrifugal pump and an internal combustion engine.

The ХИМ series motor pump is designed for pumping water, sea water, liquid fertilizers and other chemicals compatible with the materials of the unit, in agriculture or at small industrial enterprises.

Requirements for the pumped liquid:

Density, no more than 1000 kg/m³ (for BUR25-45 - no more than 1050 kg/m³)
Temperature up to +80°С
Hydrogen index (pH) from 4.0 to 10.0
The content of mechanical impurities is no more than 1%;

Limiting lower and upper values of the ambient temperature from +1 to +50°C.

Complete set:

Motor pump, pcs. - 1
Coarse cleaning filter, pcs. - 1
Connection set, pcs. - 1
Key, spark plug, pcs. - 1(//tractor-service.com)
Operating manual, pcs. - 1
Packaging, pcs. - 1

Brief technical characteristics:

The diameter of the inlet and outlet pipe is 2"
Maximum pressure, m. – 30
Maximum suction depth, m. - 7
Maximum volume supply, cubic/hour – 35
Maximum diameter of pumped particles, mm. - 5
Uptime
Temperature up to 30C - 8 hours.
The temperature is more than 30C - 4 hours.
Engine type - single-cylinder, four-stroke.
Maximum power, kW (hp) – 4.8(6.5)
Volume of the fuel tank, l. - 3.6
Average working time at 1 gas station, hours - 3
Weight, kg - 20
Pump chamber body, flanged shield (Technopolymer), workingwheels, diffuser (Technopolymer inclined)
