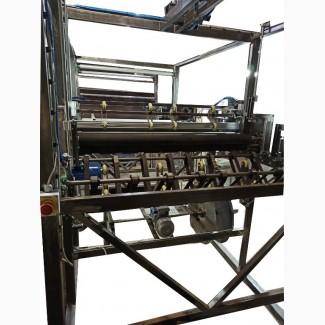

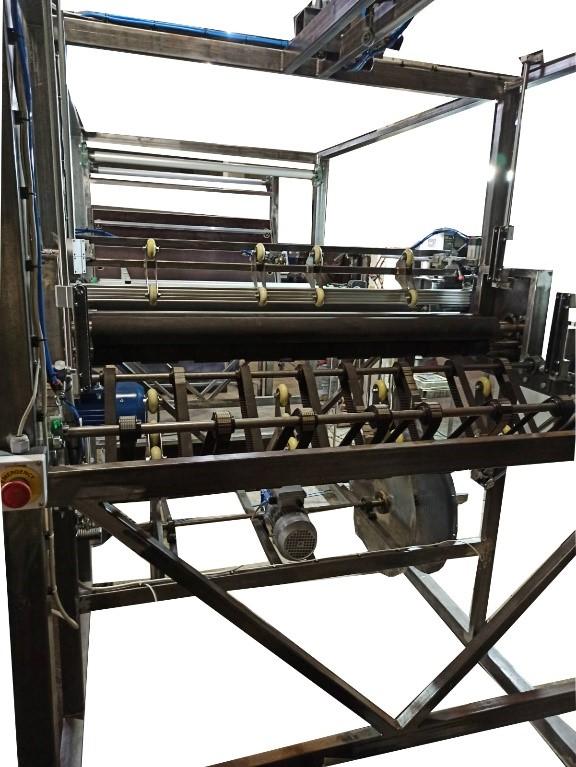

Line for rewinding, cutting and packaging of roll materials: cardboard, woven p/p and others, Kyiv region.

The line is designed for rewinding, dimensional cutting and packaging of roll materials in heat-shrink film.
Composition of the line:
1 – the unit for unwinding the original roll.
2 - a table for dismantling and gluing.
3 – roll winding machine without a spool \ with spools
Principle of operation:
Jumbo - a roll, with the help of a pneumatic device, is installed in the unwinding unit of the original roll (1). The material is fed into the nodes of the automatic roll winding machine (3) by the operator manually, through the system of broaching shafts and the scrapping table, on which, if necessary, the scrap is cut out and the sheets are glued together. After starting the line, the machine (2) rewinds the material from a large roll onto rolls of a given length (1-80 m), cuts it, and wraps it with adhesive tape.

Technical characteristics*:
*It is produced under the individual requirements of the customer.

Original (rewound) material:
Rewindable material - foamed polyethylene, cardboard or other rolled materials.
Roll diameter, max - 1500 mm
Roll width - 500 - 1600 mm
The number of meters in a roll - specified by the customer.
The maximum weight of the roll is 500 kg.
The material of the coil (spool) is specified by the Customer.
The inner diameter of the coil is 78 mm.
Installation of the roll on the equipment - with the help of pneumatic grippers installed in the coil of the roll - confirmation by the Customer is required.
The thickness of the material is 1-6 mm.
The density of the material is 25-200 kg/m.cubic
The melting temperature of the material is specified by the Customer.
Characteristics of the roll winding machine:
Class of equipment - automatic machine
Placement of the equipment - indoors (operation at ambient air temperature from +150 to +300С)
Maximum productivity - up to 3000 m/hour.
The initial roll is installed on freely rotating shafts
Fabric extraction - through the gap between the rubberized shafts
Roll holder - есть
Winding unit - Yes
Unwinding the roll - Forcefully
Material consumption counter - Yes
The diameter of the end of the roll max - 400 mm,
The diameter of the end of the roll min is specified by the customer
The number of meters of material in a roll is 1-80 m, adjustable.
The inner diameter of the winding rolls is 20-25 mm,
Edge trimming on both sides 20 – 100 mm winding on separate rolls
Control of the number of meters of material in a roll is an encoder, for reliability it is duplicated by a second encoder.
The permissible error of the length of the winding roll is +/- 5 mm
The label is self-adhesive, on the outside of the package (the automatic label sticker unit is not included in the delivery set) option
Roll cut - Knife(//tractor-service.com)
Knife installation - adjustable
Film tension - Compulsive.
Winding of rolls - without a spool.
Winding of rolls - Forced.
Film rupture sensor - Yes
Sensor of the end of the material of the original roll - Есть
Stopping of the drives on the sensor signal - in the event of an emergency situation.
Drive - Electromechanical
Material tension level - Adjustable
The device of automatic control: - - stretching of the fabric
- positioning of the unwinding roll,
- long coils
Gluing of a wound roll - with tape, two strips, with automatic cut-off
Splicing of the fabric of the ending initial roll with the next roll - manually by the operator, in the joint, with adhesive tape, using a pneumatic clamp
The amount (loss) of substandard fabric when wound on a cardboard sleeve - No.
The amount (loss) of substandard fabric when winding without a sleeve - up to 40 mm, at the beginning of winding
Permissible deviation when winding the ends - +/- 2 mm
Material availability control sensor - Yes
Filling material - Manual
Control unit - Electronic
Signal equipment - light, sound
Unwinding unit of the wound roll - Yes
The management program is included in the price and is not protected by passwords
Longitudinal section in the winding process with a width of 1000 – 1600 mm, the width is adjustable, the value is specified by the customer
Characteristics of the material for packing rolls:
Material - polyolefin shrink film (POF)
Film thickness - 15-30 microns.
Shrinkage temperature - + 95 0C
The diameter of the film roll is calculated (or specified by the Customer)
The width of the film roll is calculated (or specified by the Customer)
The maximum weight of a roll of film is no more than 75 kg.
The inner diameter of the spool is 78 mm.
The material of the coil is specified by the Customer.
Installation of the roll on the equipment - manually / with an electric lifter (Customer)

General characteristics of the line:
Number of operators - One
Connection - 380 V, 50Hz, 6 atm
Nominal power - 7 kW
Line dimensions (length x width x height) - 5200 x 2100 x 2400 mm

It is available, the price is negotiable, depending on the requirements of the Customer.
