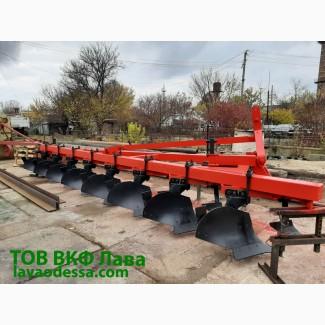

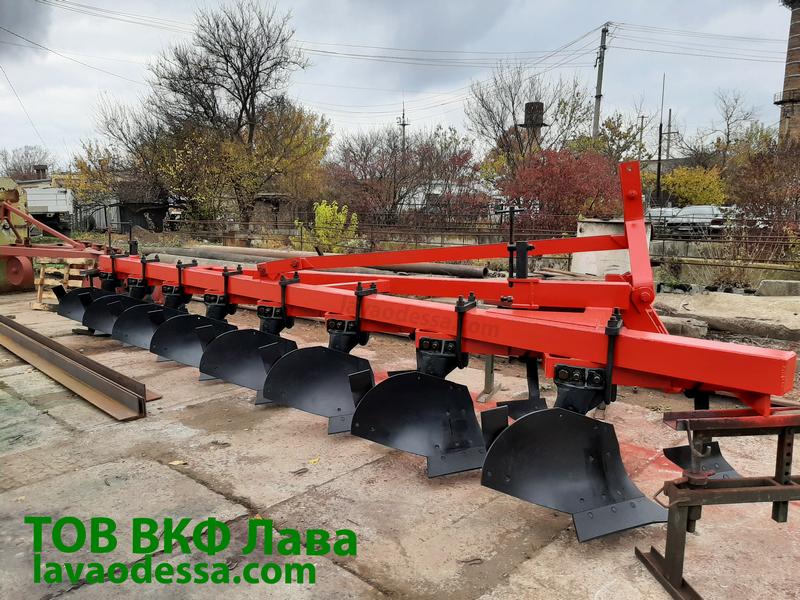

Plow PNL 8-40 with a front plow (K-700), Odesa region.

The PNL-8-40 eight-body hinged plow is designed for plowing up to 30 cm of soil undercereals and technical crops, not littered stones, slabs and other obstacles, with specific resistance up to 0.09 MPa (0.9 kg/cm²) and hardness up to 4.0 MPa (40 kg/cm²).
The plow is aggregated with atractor 250-300 hp. (K-700/K-701).

Technical characteristics:
1. The width of the plow - 3.2 m
2. Plowing depth - up to 30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 720 mm.
4. Mass - 2150±50
5. The working speed of movement in the main operations - up to 10 km/h.
6. Transport speed, no more - up to 12 km/h.
7. The distance between the housings along the path of the plow is 800 mm
8. Ground clearance, at least - 350 mm
9. Productivity in 1 hour. - 3.2 ha/h.(//tractor-service.com)
Overall dimensions, mm: 164
довжина -7080±100
width - 3865±50
height - 1790±50

Advantages:
1. The front plow, installed in front of each plow body, serves to cut the top layer of the soil and wrap plant remains to a depth of up to 12 cm.
2. Equipped with 8 hulls and front plows.
3. Visibility, simplicity and ease of adjustment.
