Cultivator solid mounted 2-row General KSN-4.8 Bellota, Zaporizhzhya region.

Cultivator solid mounted 2-row General KSN - 4.8 Bellota

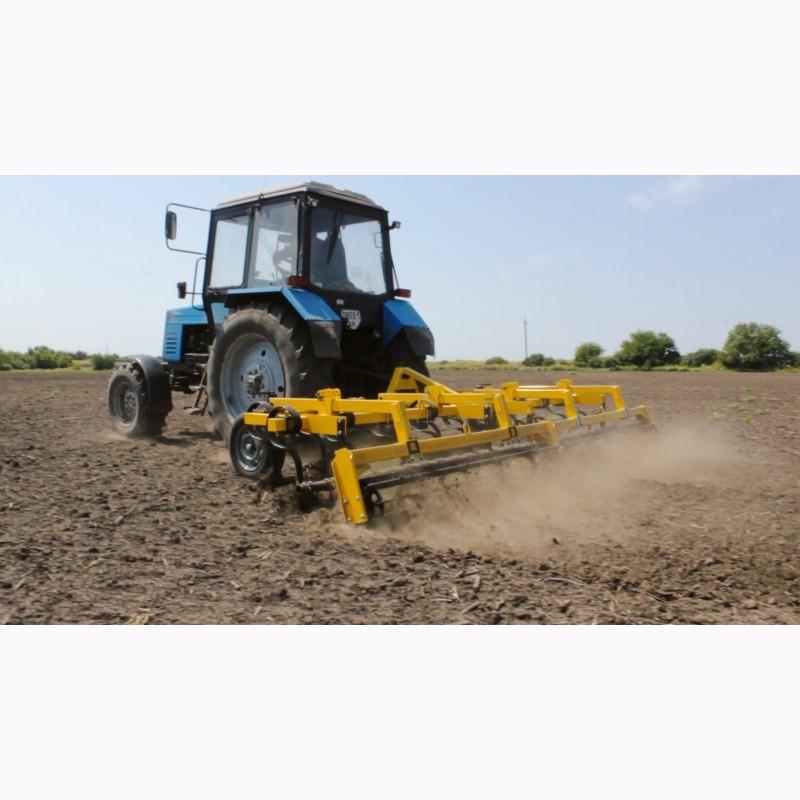

The General KSN mounted cultivator is universal and is used for pre-sowing cultivation and continuous steam processing. This cultivator provides complete soil preparation for sowing in just one pass through the field!

General KSN combines the simultaneous execution of 7 operations:

cleaning steam from weeds with trimming and combing their roots
loosening of the soil without circulating the layer and depositing plant residues
painting lumps of earth and leveling the soil with a rake with spring teeth
compaction and formation of the ideal structure of the surface layer of the soil by rolling rollers to prevent moisture evaporation.

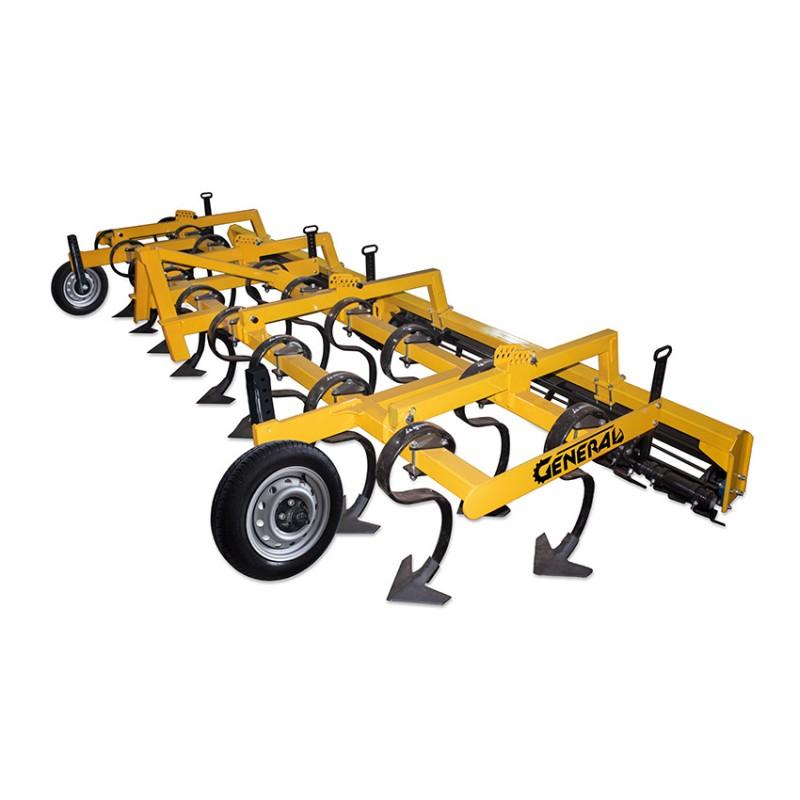

This cultivator is equipped with Bellota passive vibrating S-shaped racks made of highly elastic boron steel. This type of racks is recommended for use on dry loose soil. Thanks to different types of soils and with critical loads that do not break!

The working bodies on this model are arranged evenly in a checkerboard pattern in three rows. Such an arrangement of the racks provides an impeccable effect of loosening and mixing the soil, while preventing it from getting clogged with weeds and plant remains!
The spectrum of application of General KSN:

Pre-sowing cultivation and seedbed preparation
Complete processing and cleaning of vapors from weeds.
Alignment of plowing

Technical characteristics General

Aggregation method: Mounted
Gripping width: 4.8 m
Number of rows: 2
Processing depth: 4 - 12 cm.

Working bodies General:
(//tractor-service.com)
– Rack type: Passive vibrating S-like Bellota made of highly elastic steel
– A bushing with a bushing for lubricating the replaceable bushings of the working body
– Quantity: 19 pcs.
– Placement step: uniform in a staggered order of 220 mm.
– Paw width: 260 mm
– Material of legs and racks: Forged hardened boron steel with polymer super-resistant coating
Frame with a wall thickness of 5 mm.

Complete set General:

— Grabs with spring hard teeth 8x320 mm made of hardened steel grade 70
—Rolling rollers rolling with a diameter of 300 mm, a blade thickness of 6 mm and bearings in a cast iron housing UCF 208 (Japan)
Lubricated fingers of power drives
Fingers made of steel 45 with cotter pin.

All elements of the cultivator undergo mandatory processing, namely: cleaning, grinding and sandblasting! Before painting, primer and drying with a heat gun is carried out! At the end, all parts are covered with a polyurethane coating and dried in a drying chamber!
Functional properties General

Adjustment of the angle of attack and the depth of rake processing.
Adjustmentheight of rolling rollers.
Regulates the depth of cultivation of the cultivator due to the height of the skids and the overhangtractor.
