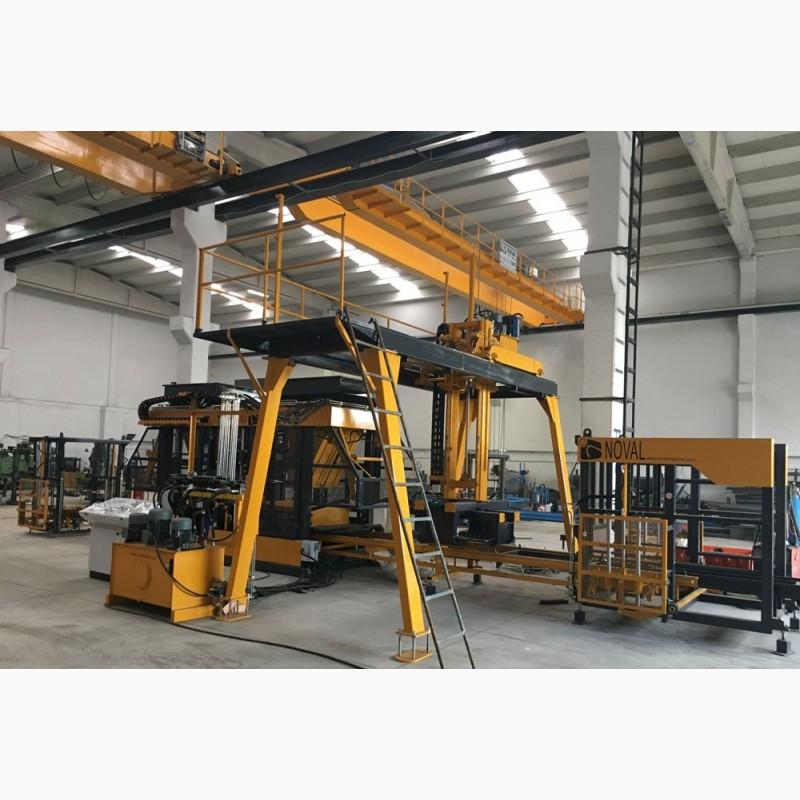

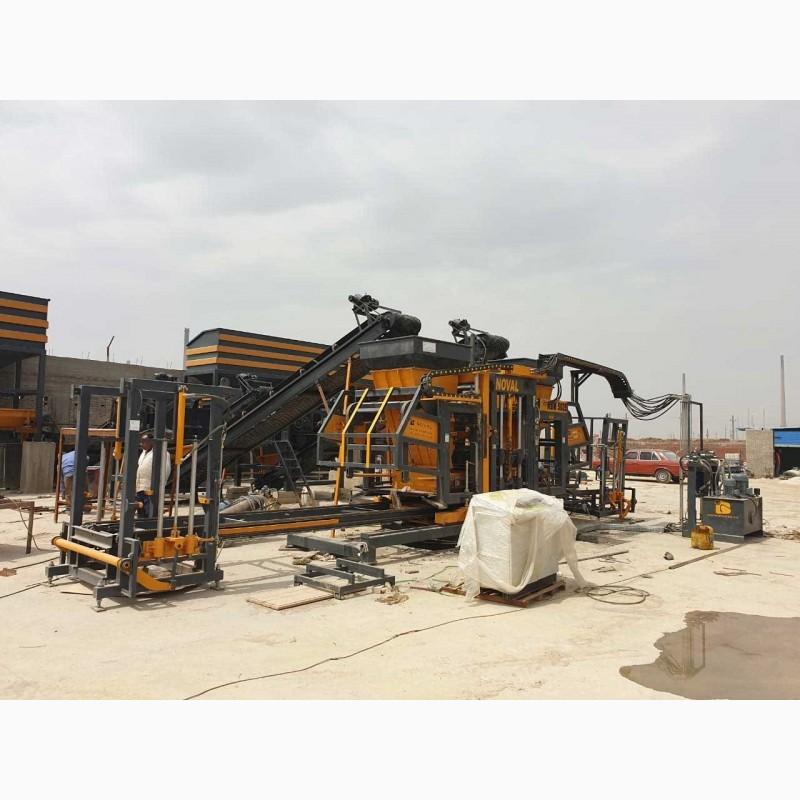

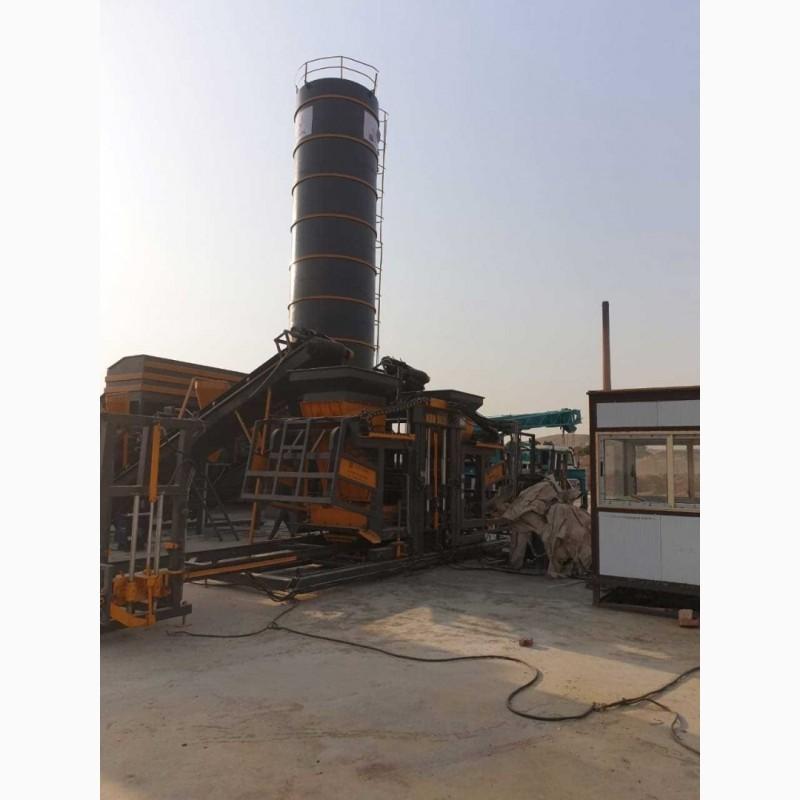

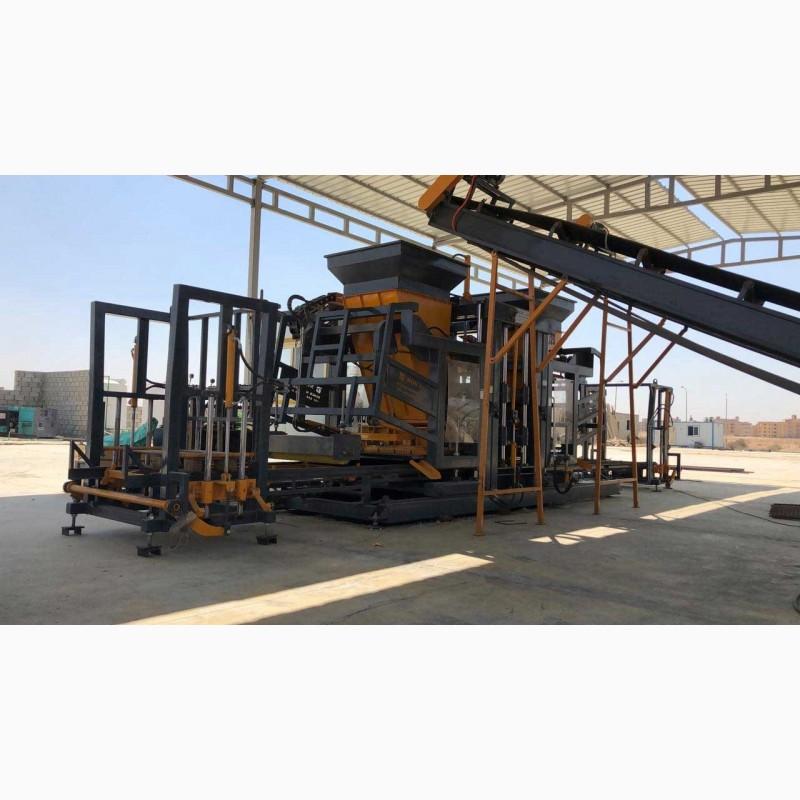

Vibropress automatic line NMB 5030 (600 m2/shift) Turkey, Kyiv

Vibropress automatic line NMB 5030 (600 m2/shift) Turkey

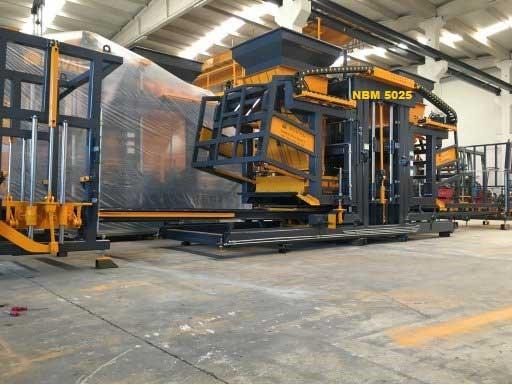

NBM 6036 MACHINES FOR THE PRODUCTION OF PAVEMENT TILES, CURB AND BLOCKS

These are machines working with a hydraulic system in the pressure range of 120-200 bar. Produces 18 pieces of standard briquettes 20*40*20 cm and 42 pieces of paving stones. Production requires working pallets on legs.

Concrete pressed in forms is pressed on pallets.
Products made in the same way are left to dry on work pallets.

Productivity for a shift of 8 hours:

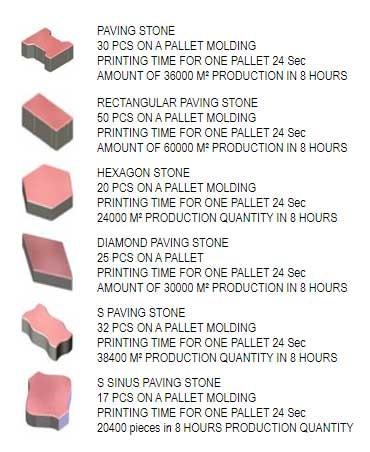

Paving tiles up to 600 m2

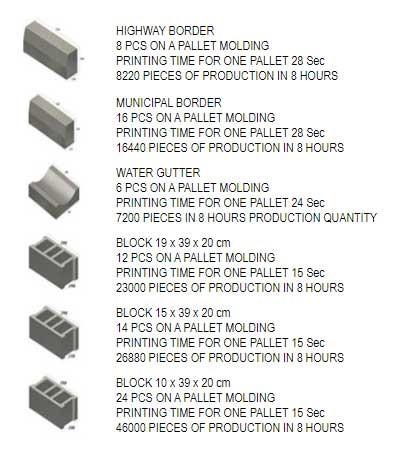

Border 8220 pcs.

Hollow block 40*20*20 cm - 23,000 pcs.

The working area of the mold is 110*105 cm.

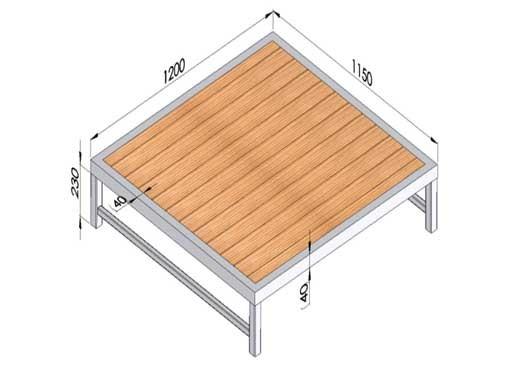

The size of the pallet is 120*115 cm.

Energy-saving products A+ (A PLUS)
EFF3 class electric motors
Free spare parts with the machine
Warranty - 2 years + 2 years, total warranty up to 4 years.
Compliance with the general quality management system ISO 9001:2008.
CE declaration of compliance with European standards.
"HIGHLINE" product models with qualified personnel
Fast service and warranty of spare parts.
Use of materials in accordance with DIN and TSEK standards.

Simple selection of programs(//tractor-service.com)
Freedom of automatic/manual selection
Authorization certificate at the end of the training period
Stop, hold and resume
The possibility of transportation by forklift truck.
Internet troubleshooting capability.
Compliance with the Low Voltage Directive.

Warranty 24 months.

The manufacturer conducts the chief installation of equipment and training of personnel.

SEMI-AUTOMATIC Option.

Required area in semi-automatic systems:
Minimum 4000 m2 (400 m2 for machines and equipment, 2000 m2 of drying area, 1000 m2 of dry finished warehouse, 500 m2 of storage area for aggregates, storage area of empty pallets 100 m2)

The total power of the transformer in semi-automatic systems should be 85 kVA. The installed capacity is 60 kW.

The number of personnel required to operate the plant in semi-automatic systems: 9 people (2 operators and 1 driver of wooden pallets, 3 carriers of fresh products, 3 devices for feeding inert materials).

FULLY AUTOMATIC Option.

Required installation area in automated systems: Minimum 4000 m2 (600 m2 for machines and equipment, 1600 m2 dry area, finished dry warehouse area 1200 m2, aggregate storage area 500 m2, empty pallet storage area 100 m2)

General transformer or generator
The power of the generator for installation in automatic systems should be 110 kVA. The installed capacity is 85 kW.

The number of personnel required to operate the plant in automatic systems: 3 people (2 operators and 1 forklift driver).

GENERAL INFORMATION ABOUT THE PRODUCTION AREA

It is recommended to install a closed area of at least 600 m2 for equipment, empty pallets and a drying area for fresh products to protect against bad weather conditions.
