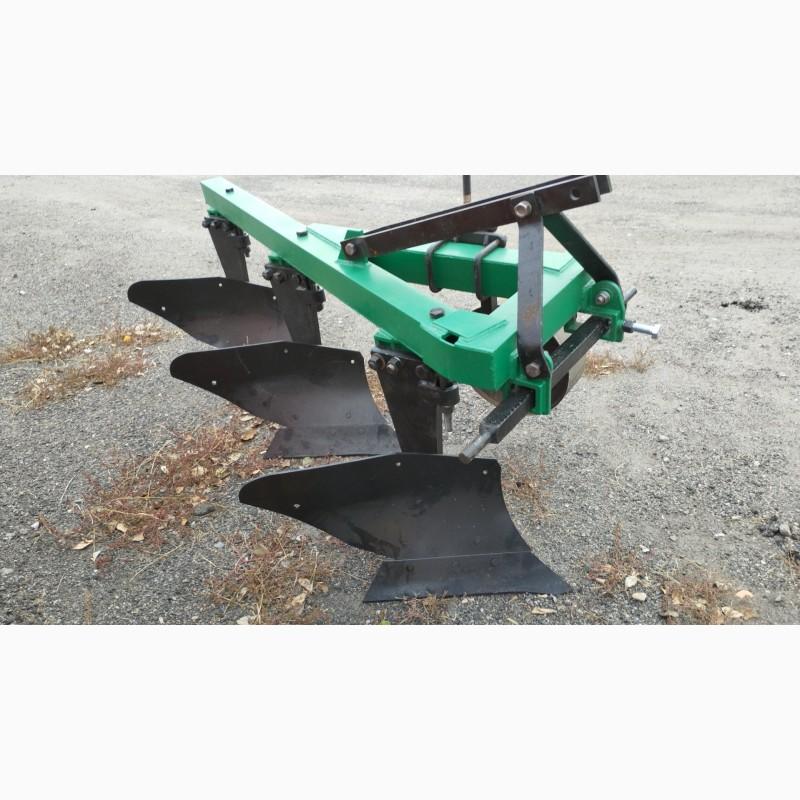

Plow Zaginnyy Navisny PLN - 3 x 35, Dnipropetrovsk region.

The plow is intended for cultivation of various soils undercereals to a depth of up to 30 cm, which are not clogged with stones and other obstacles, with a specific resistance of up to 0.09 Mpa (0.9 kg/cm2 ). The unit can be operated in all soil and climatic zones.

Technical characteristics

Type - hinged
Cover width, m - 0.35
Aggregate width, m - 1.05
Productivity per hour of prime time, ha - 0.84(//tractor-service.com)
Depth of tillage, cm - 20-30
Operating speed, km/h - 8.0
Transport speed, km/h - no more than 20
Number of cases, pcs - 3
Product weight, kg – 480
The distance under the frame is 760 mm.
The distance between the cases is 840 mm.
The thickness of the rack is 30 mm.
Powertractor - from 60 k/s,
