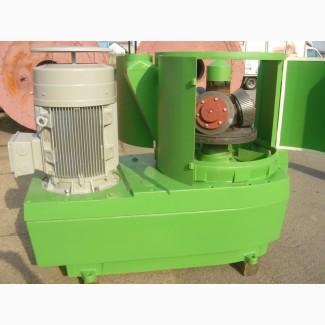

peller TL700, 75kW. Productivity up to 2500 kg. Czech Republic, Poltava region

Призначення і технічні вимоги до продукту переробки

The TL 600 (700) granulator is used for granulation of raw materials of plant origin, as well as various waste of forest and agriculture (eg: wood sawdust, hay, straw, sunflower husk,= grain bran Equipment cannot work independently, it is only part of the technological line., торф тощо), фізико-механічні властивості яких дозволяють їх відносне склеювання. Устаткування не може працювати самостійно, воно є лише частиною технологічної лінії.

Formation of mixtures for granulation

Raw materials parameters.

Moisture content to moisturize on the previous device not more than 14%.

Average fraction u = 0.6 - 4.0 mm

The moisturized mixture temperature - up to 70-80 ° C

Description of the principle of action of equipment

The TL600 (700) granulator provides an uninterrupted mode of operation with continuous supply of raw materials. The pre -moistened granulator mixer, crushed raw material is fed to the surface of the matrix, where it is moved by pressing rollers through the holes of the matrix and from the side of the matrix is ​​cut off or broken down in the form of pellets (pellet) of the corresponding diameter. Then the hot pellets are moved before unloading and, with the help of a bucket conveyor, are served to the cooling column. The length of the pellets depends on the cutting knives and the properties of the raw material. After pressing the pellets, it is necessary to cool quickly to a temperature of 20 ° C or 5 ° C higher than the ambient temperature. When transporting in the appropriate package (big-beag, bag, package) pellets must have a temperature not exceeding 25 ° C.

= Under the influence of loose raw materials, harmful dust products are formed through the holes of the matrix, which are re-fed to the press granulator with the help of a sift and the reverse aspiration mechanism.

Basic technical data of equipment

The TL600 (700) granulator for the manufacture of pellets is available in one size with a main engine with a capacity of 75kW or 90kW, and in two performances with three or four rollers. A digital software or frequency converter is installed for a smooth start of the motor. The diameter of the holes of the matrices that are mainly used: 3, 4, 5, 6, 8, 10, 12 and 18mm.

= Basic technical parameters TL 700/ (75) 90kW.

Parameter

Unit Explore

Value

Siemens electric motor

kW

75

Electricity consumption at medium load

kW

60

Rated power supply

In

400 (// tractor-service.com)

Nominal frequency

Hz

50

The lowest class of protection of electrical equipment

IP55

Loading of the electric motors

A

136

Machine mass

kg

3800

The amount of air for aspiration

M3 min-1

15

The diameter of the holes on the matrix

mm

4-12

Compound feed and bran performance

kg.
region:
1500-2500

The output granules temperature

C

75-85

* The specified performance is achieved when tested on a well -run matrix. Water pressure is not less than 0.3 MPa. The condition of achieving high productivity is a properly rolled matrix (at least 50 hours of work) and compliance with the conditions for the parameters of raw materials, humidity and continuity Commercial offer. TL600/90 press granulator as part of: 1. The granulator with the casing on the frame. 2. Electric motor 75-90 kW 3. Press-head with 3-4 rollers 4. Scraper Head 5. COOD MATRICS 6. Matrix Ø 6, 8 or 10 mm 7. Claim device 8. Press oil 9. Softstarter. || 24 Nikolaevich

Комерційна пропозиція. Прес-гранулятор TL600/90 у складі: 1. Гранулятор з кожухом на рамі. 2. Електродвигун 75-90 кВт 3. Прес-головка з 3-4 роликами 4. Скребок головки 5. Кожух матриці 6. Матриця Ø 6, 8 або 10 мм 7. Стяжний пристрій 8. Прес-маслянка 9.Софтстартер.
