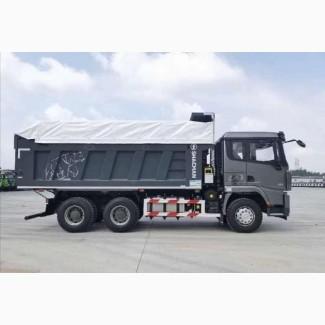

Shacman X3000 dump truck 30 tons, Kyiv

Shakman X3000 dump truck
Model SX32586T384О
Wheel formula - 6x4
Body volume, cubic meters - 19.3 (U-shaped with an awning);
Carrying capacity, kg - 25000;
Curb weight, kg - 15000;
Engine - WEICHAI WP12.375E53 (EURO-5)
6-cylinder, in-line turbocharged diesel.
Power, kW (hp) - 275 (375)
Working volume of the engine, l - 11.6
The maximum torque, Nm (rpm) - 1800 (1000-1400)
Transmission - Shaanxi Fast Gear 12JS160TA, manual, 12-speed, forward - 12 reverse - 2, fully synchronized
Pendant:
MAN front axle (7.5 t), spring, with hydraulic shock absorbers, with anti-roll bar
MAN rear bogie (16+16 t), balancer, with reactive rods, with stabilizer of lateral stability, two-stage retarder, with locking of inter-axle and inter-wheel differential;
Power supply system - Common Rail brand BOSCH
Direct fuel injection with a common ramp
BOSCH injection pumps and injectors
Air filter - Fleetguard, centrifugal, dry type;
Clutch - EATON (manufacturer - USA) 430 mm, dry, single disc with diaphragm spring
The drive is hydraulic with a pneumatic amplifier;
Main gear:
Two-stage gearbox with wheel planetary transmission;
Transmission number - 5.262;
Steering:
Hydraulic booster - ZF 8098, integral type;
Braking system:
Working brake system - WABCO, pneumatic, two-circuit drive separately for front and rear wheel brakes, drum type brake mechanisms onall wheels, АВС
Brake system: mechanical drive from spring energy accumulators to the wheels of the rear axle
Spare braking system: engine brake-retarder with a flap in the exhaust gas exhaust system;
Tires - 315/80R22.5, tubeless;
Body lift:
Hydraulic cylinder of the front location (location behind the cab)
Platform elevation angle up to - 45°;(//tractor-service.com)
Dump platform:
Body volume, cubic meters - 19.3;
Awning with remote control from the cabin or key fob
All-metal U-shaped body with rear unloading, heated by exhaust gases.
Platform dimensions:
Length / Width / Height, mm - 5600/2300/1500;
The thickness of the metal of the bottom/sides, mm - 10/6;
Overall dimensions - Length / Width / Height, mm: 8329 / 2490 / 3450;
Wheel base, mm - 3800+1350;
Front/rear wheel track, mm - 2036/1850;
Minimum clearance, mm - 314;
Maximum speed, km/h - 90
Minimum turning diameter, m - 9
The volume of the fuel tank, l - 380;
Cabin:
German MAN license, insulated, all-metal, two-seater, with one wide berth. Cabin suspension – four shock absorbers, rear shock absorbers with hydraulic lock.
Cabin equipment:
• climate control;
• wide berth;
• cruise control;
• pneumatic driver's seat GRAMMER (Germany);
• multifunctional steering wheel;
• the steering column is adjustable in angle of inclination and height;
• wide-angle rear-view mirrors with heating;
• LED daytime running lights;
• fog lights;
• MP3\USB\Bluetooth radio with steering wheel control;
• electric windows;
• central lock with remote control;
• triplex windshield;
• three-speed windshield wipers.
