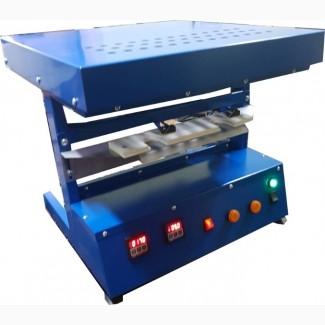

Equipment for sealing tubes, Kyiv region.

Installation intended for sealing ready-made bags (doi-packs), tubes, ampoules, etc., made of multi-layer polymer materials. When sealing, the bags/tubes are in a vertical position, which prevents spillage/pouring of the product, with the date applied to the product.

The installation is intended for work in closed rooms with an air temperature of +10 0C to +35 0C with a relative humidity of up to 70%.

Its compactness and low weight allow the installation to be placed on a work table in the work area of the tube product dispenser and the operator to work in a sitting position.

Technical characteristics*:
Execution - desktop

Heating - constant

The number of seams is 1

Stroke of the heater, mm - 50 (according to the Customer's request)

The closing of the instrument is horizontal.

Seam length, mm - 300 mm

The width of the sealing sponge, mm - 20

The number of daters is 2

Installation of daters - mounted in sponges

The number of digits in one dater is 6

Date size of 6 digits - height 5.3 mm, width 22.5 mm

Installation and removal of tubes (packets) - manual (2 tubes according to the photo mark)

Tool drive - pneumatic
(//tractor-service.com)
The height of the sealing unit is adjustable

Control and adjustment block - electronic

Control - pedal

The time range of the sealing cycle is 0-9 seconds.

Compressed air pressure, MPa - 0.5...0.6 - 60 l / h.

Temperature range of the sealing tool - 80-180oС (regulated)

Overall dimensions, mm - 550 x 450 x 550;

Weight (no more) - 30 kg.

The compressor is not included in the delivery set.

*Mazhet is equipped with an additional set of sealing sponges, a device for cutting the tube above the seam - options.

Principle of operation:

The operator, based on the materials of the tubes (packages), once on the control unit, sets the sealing modes: the heating temperature of the tool and the sealing time, adjusts the height of the sealing tool from the level of the tabletop, depending on the height of the tubes and the width of the seam to be obtained. After that, he installs one or more tubes between the sealing traverses, presses the pedal of the pneumatic drive of the installation. The rear traverse with the sealing tool is pressed against the front ones and the sealing process begins. After the specified time, the sealing sponges are automatically decompressed, the sealed tubes are removed by the operator, and new tubes are installed.

To position the position of the tubes according to the photo-label on the installation, photo sensors are installed that signal the position of the tubes during their installation.

A replaceable digital dater is installed on the sealing tool to set the date or article number on the seam of the sealed tube. The computer consists of six characters with spaces xx - xx - xx (date - month - hour).  A box of symbols is attached to computers for setting the desired date.

Installation price: UAH 95,500.

It is available.

Warranty: 12 months.
