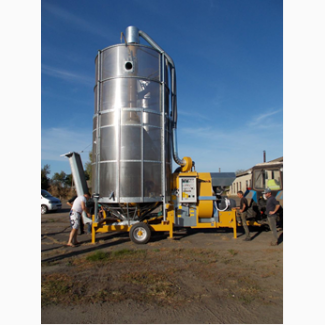

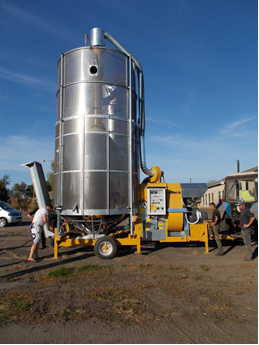

New mobile grain dryer MECMAR D 24/175 T2, Kyiv region.

Drying chamber capacity ( m3 ) 32
Capacity of the drying chamber (t) 24
Cylinder type Telescopic
Diameter of the working cylinder, m 3.00
The height of the cylinder in the transport position, m (without/with the inclined pipe) 4.6/5.14
Height of the cylinder in the working position, m (without/with aspiration) 7.05/8.15
Unloading height (with tray), m 5.36
Weight, kg 5,550
Loading auger, mm 200
Central screw, mm 368
Riello two-stage burner on diesel fuel RL100(//tractor-service.com)
Burner power range, kW 356-1186
SP consumption, l/t/% 1.1
Productivity of the fan, m3/hour, taking into account the back resistance of the grain 40,000
Electric drive power, kW 45
Productivity withcorn – from 25% to 14%, t/day 120
Productivity forwheat – from 19% to 14%, t/day 216
Rapeseed productivity - from 14% to 8%, t/day 96
Productivity forsunflower – from 14% to 8%, t/day 72
Loading/unloading time, min 24/24
Drying time from 19 to 14%, t/h (when 5% moisture is removed) 1.2
Maximum cooling time, h 1.0
Fuel tank capacity, l 550
