Продам борон шлейфову БЗШ-21, Дніпропетровська обл.

Продам борон шлейфову БЗШ-21 . Борона зубова шлейфова БЗШ-21 має шлейф який складеться із 16 рядів зубів з кутом атаки 45 і 67 градусів , виготовленних зі сталі 65г і загартовані та має 21 метр робочої ширини . Борона шлейфова підлягае частковій державній компенсації до 40% . Виробництво. Гарантія. Доставка по Україні
The harrow tooth bzsh-21 is intended for early spring tillage, closing moisture, leveling the soil surface, care of steam fields, pre-sowing field preparation. . The main purpose of the work of the plume tooth harrow BZSh-21 is the creation of a uniform loose soil layer, reducing the evaporation of moisture, partial destruction of weeds, destruction of soil crust, laying of mineral fertilizers, treatment of winter cereals at high speeds, closure of soil. Technical characteristics of toothpick bzsh-21
БЗШ -21
Type of the trailer
Processing width 21.2 m
The tractor power of 400 liters. p.
Working speed is 8-15 km/h
Processing depth 4-9 cm
45 ° attack angle; 67 °
Number of series of teeth 16/1344(//tractor-service.com)
= Transport width is 4.9 m
The mass of kg. 7000

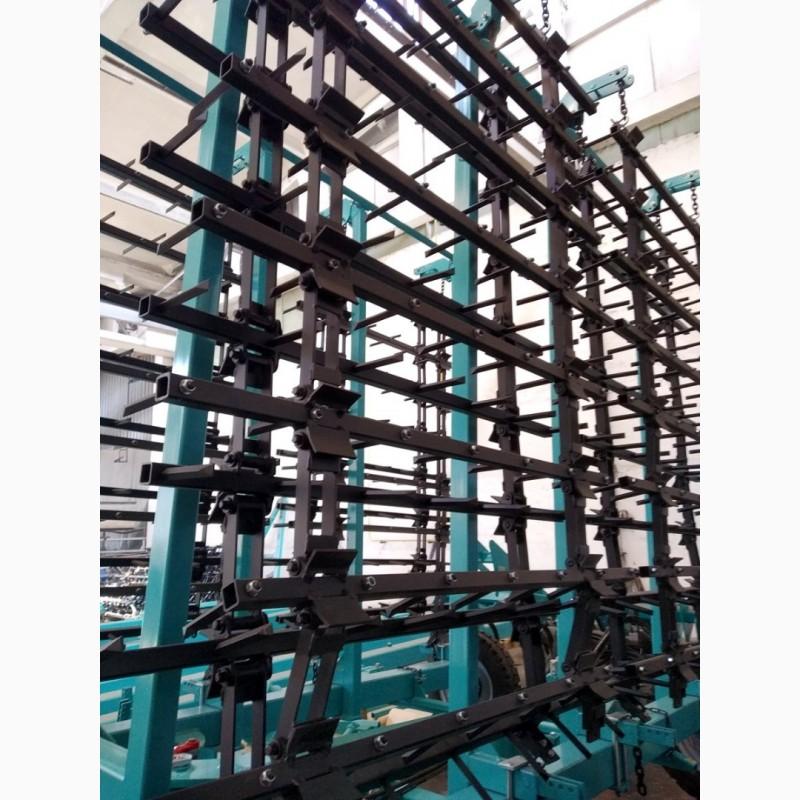

Design features of BZSh-21 plume tooth harrow.
The distinguishing features of the tooth harrow by plume (heavy) BZSh -21 consist in the following design and technological solutions, which can significantly increase reliability and work resource, also improve repair.
= • The tooth is made of a square of steel 65g with appropriate heat treatment. The use of a square of milling on two sides on a sharp wedge, provides the work of the cutting face of the square and the wedge of the work surface with the effect of self -renishing. A sharp wedge easily penetrates the soil.
?
• links that collect load -bearing bars in the loop are made of strong sheet steel steel of 30g2p, used for preparation of disks - Borin, paw. Also, the frame design of the link gives the plume stability when working without demolition should be in the trail. Fastening of the link to the tooth beam with the help of volume axes significantly increases the repair capacity of the site.
= • stamped from sheet steel stops mounted on the tooth beam provide the required angle of installation of teeth (23 ° or 45 ° from the vertical).
= • The layout of the teeth at the intersection of the distance of the adjacent teeth 25 mm and the diagonal of the square 22 mm provides almost complete overlap of the work area over the entire width of the grip on the design of the plume, consisting of ten load -bearing bars with teeth. • The load -bearing frame allows you to install additional containers and systems for application of the necessary chemicals and fertilizers. Dnipro
• Несуча рама дозволяє встановлювати додатково ємності і системи для внесення необхідних хімікатів і добрив.
