MKG-25 crane. Main lift reducer, turn reducer, Zvezdochka vedushachya, Dnipropetrovsk region.

MKG-25 crane. The main lift reducer, the turn reducer, the leading star.
On the crawler crane MKG-25, MKG-25BR available:

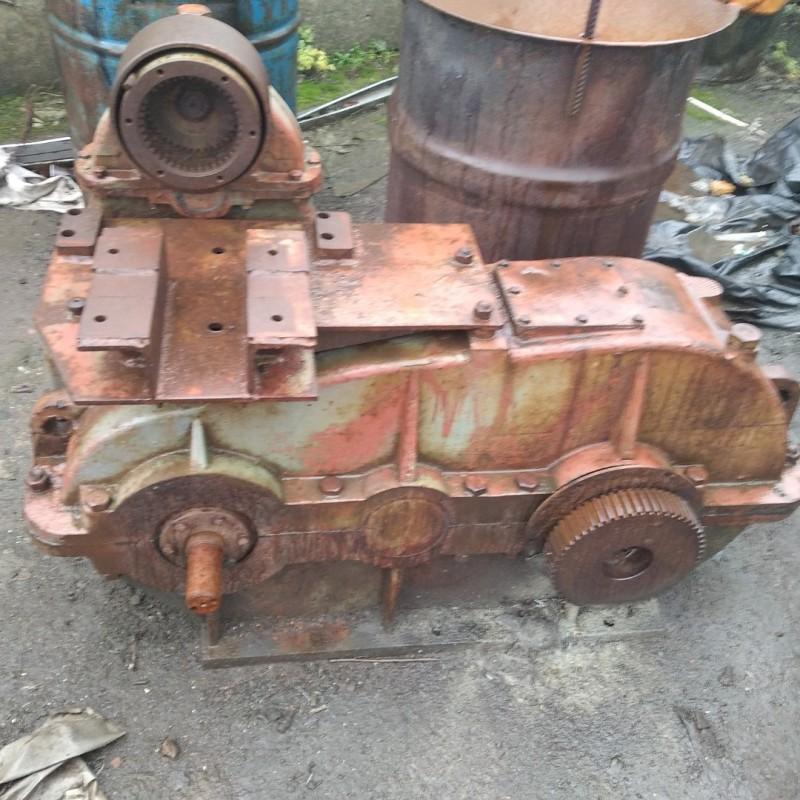

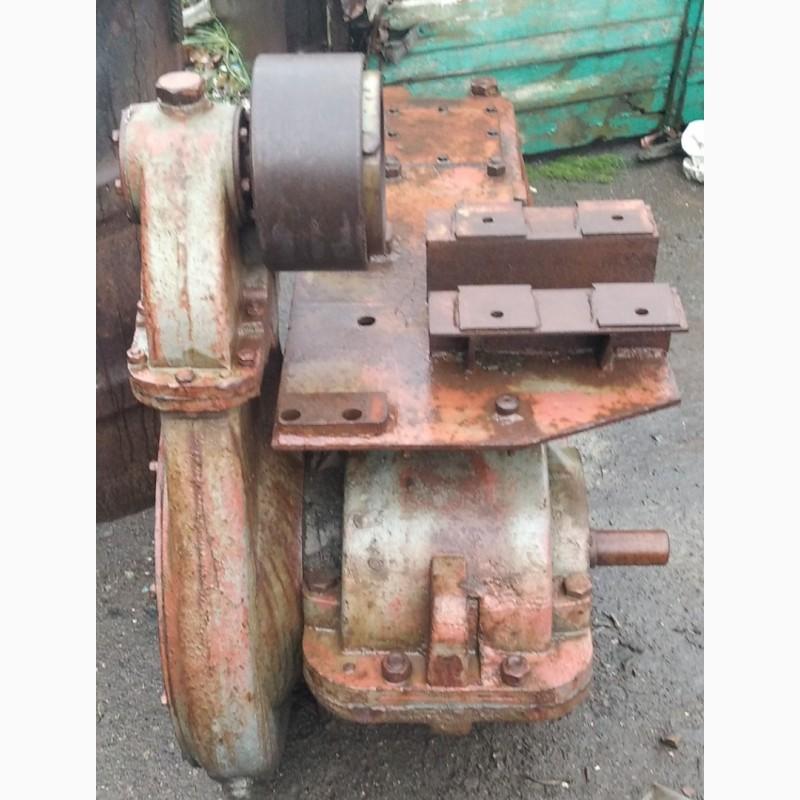

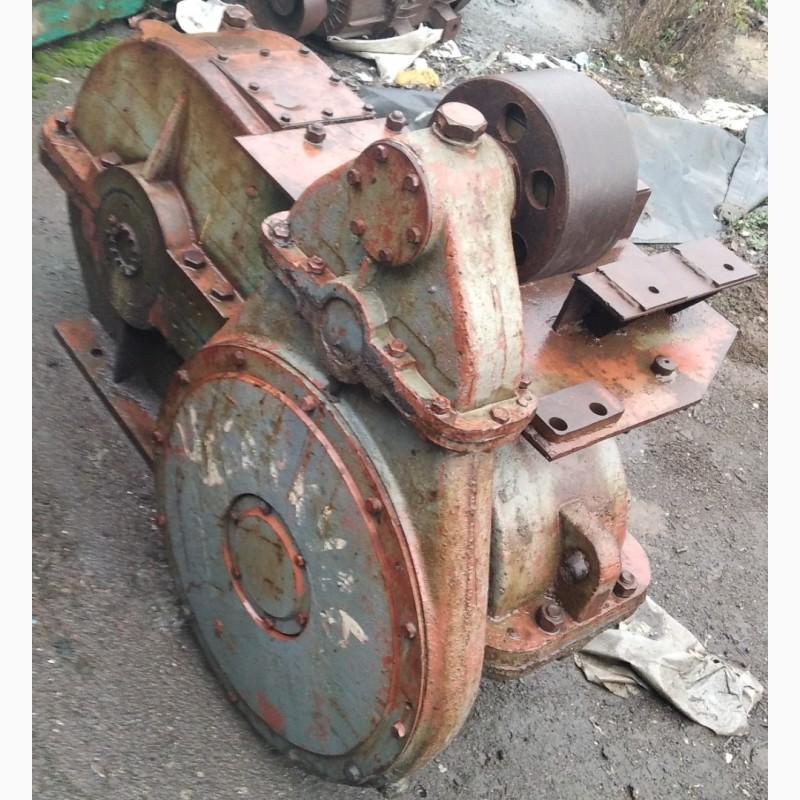

1. reducer of the main lift 961.32.10.00 winch of the main lift 800.32.00.00 (961.32.00.00). The reducer of the main lift 961.32.10.00 of the MKG-25 crane consists of two interconnected parts - the main reducer and the additional reducer. The torque from the small electric motor is transmitted through an additional gearbox and a differential to the output shaft of the main gearbox of the MKG-25 crane.(//tractor-service.com)

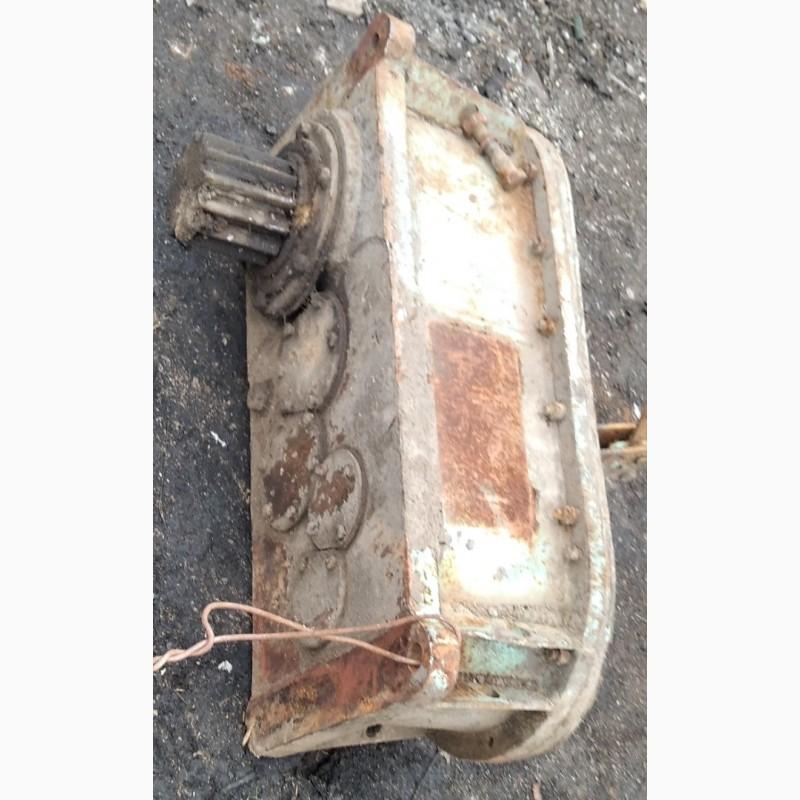

2. rotation reducer 800.35.00.00 (961.35.00.00) of the MKG-25 crane. The gearbox of the turning mechanism is four-stage two-speed with a gear shifting mechanism located on the second shaft. The gear ratio of the gearbox is 1:149, which allows the rotary platform to rotate at a speed of up to 0.385 revolutions per minute.

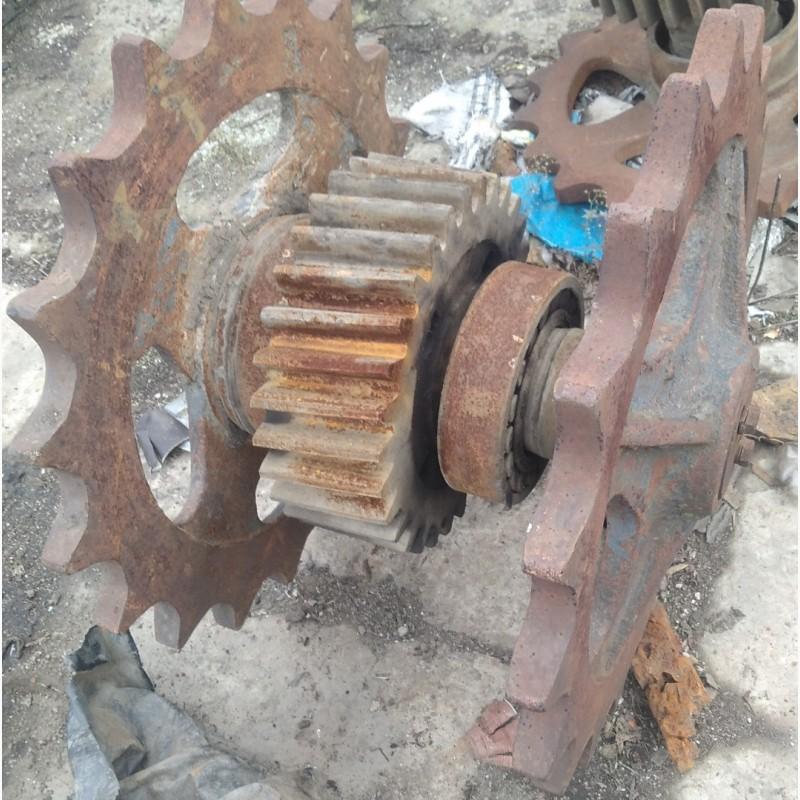

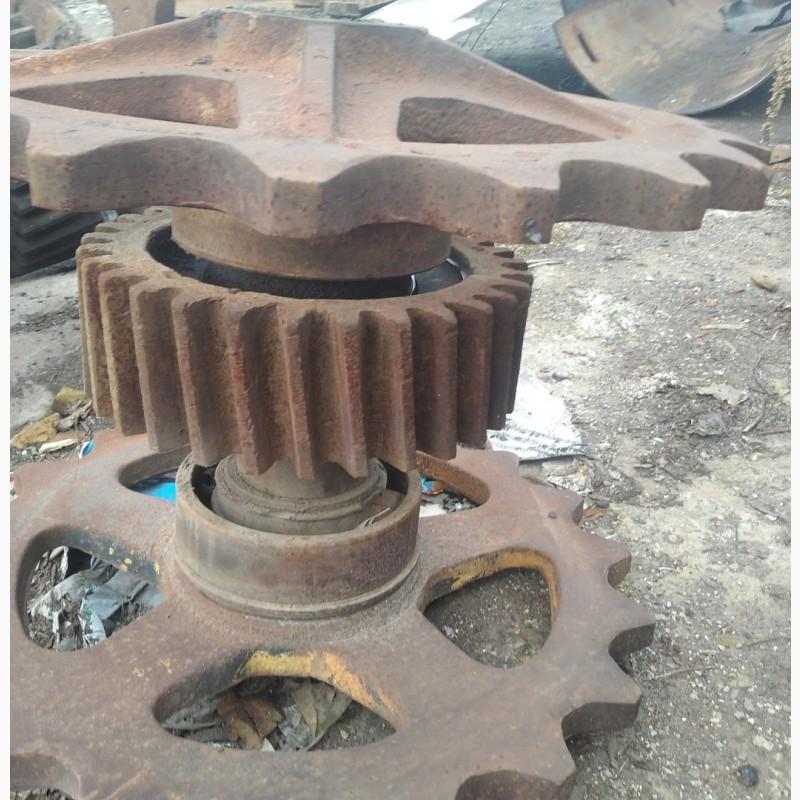

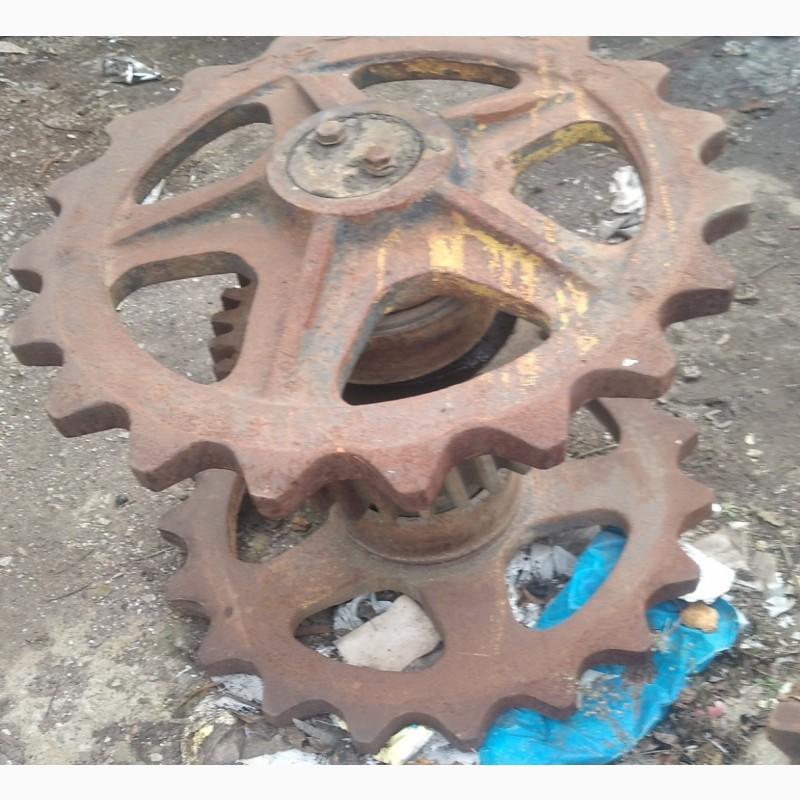

3. Guide star 800.11.20.27, Star guide 800.11.20.14. The leading sprocket, which engages with its teeth with the depressions of the tracks, is mounted on the output shaft of the on-board gearbox with a splined connection. Each output shaft of the on-board gearbox has two sprockets 800.11.20.27 and 800.11.20.14.
The price of the main lifting gear 961.32.10.00 for the MKG-25 crane, the price of the turning gear 800.35.00.00 (961.35.00.00) of the MKG-25 crane, as well as the price of the guide star 800.11.20.27 and 800.11.20.14. договрные, недоговор.
