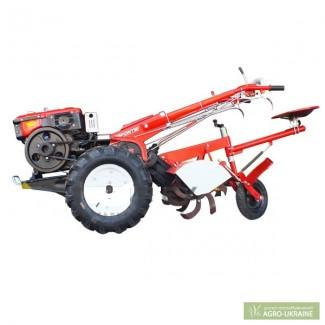

Diesel motoblock FORTE SH 101, Mykolaiv region.

DieselFORTE motoblock SH 101 uses a four-stroke single-cylinder engine 190N with a volume of 573 cubic cm
The engine power is 10 hp. (7.35 kW),
that allows you to attribute this model of the walk-behind tractor to
productive equipment for performing complex agricultural work. The unit is quite fast
implements plowing of difficult areas, the presence of active
milling cutter allows soil cultivation.
The advantage of this model is the presence of
of a special power take-off shaft, allowing to connect additional attachment equipment, thus,
the FORTE SH 101 walk-behind tractor can be used as a
mowers for harvesting hay, like a garden minitractor
with a trailer, and even as a motor pump for pumping water.
(fulfilment of watering works). The engine has a sufficient reserve of power, the water cooling system allows you to avoid
overheating when working under heavy loads.
A gear reducer (bevel gear) on a belt clutch is used as a transmission.
The number of speeds is two rear, six front.
The disc clutch system will ensure comfortable operation.
with unit. Use of dieselFORTE motoblock
SH 101 will provide high quality processing, the necessary work productivity.
It should be noted the economy of the engine and the reliability of the construction of the unit.
Engine - 190N
Starting the engine - Manual(//tractor-service.com)
Type - Diesel single-cylinder four-stroke.
Cooling is water.
Power (kW/hp) – 7.35/10.0
Engine revolutions – 2,300
Engine volume (cc) - 573
Cylinder diameter x piston stroke (mm) – 90x90
The drive is a horizontal V-belt transmission.
Transmission – gear reducer with bevel gear, belt clutch
The number of gears is 6 forward / 2 backward.
Power take-off shaft (rpm) – 1176
Working speed (km/h) – 2-5
Disc clutch
Track widthwheels (mm) – 680-760
Minimum ground clearance (mm) – 210
Cultivation width (mm) – 900
Cultivation depth (mm) – 195
Wheel size (inches) – 6.00-12
Fuel tank volume (l) – 5.5
Fuel consumption (liters per hour) - 0.8
Dimensions (mm) - 2180x840x1310
Weight (kg.) - 230
