KUN front loader for MTZ, Cherkassk region.

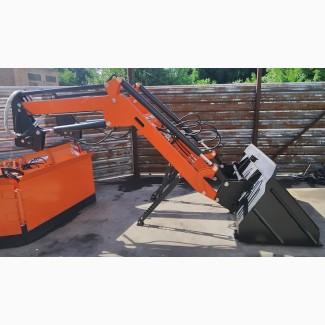

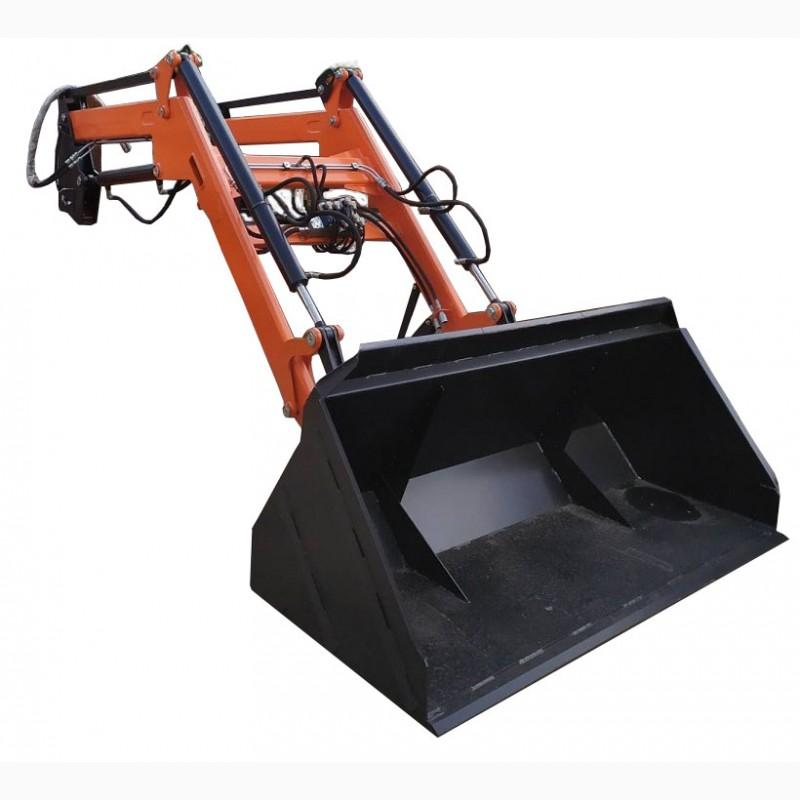

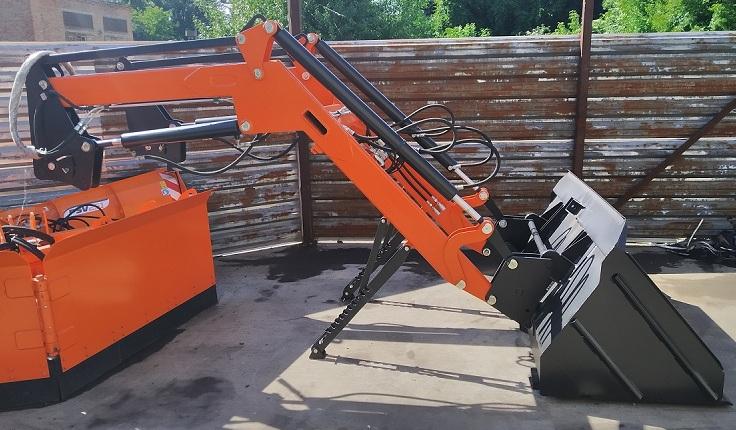

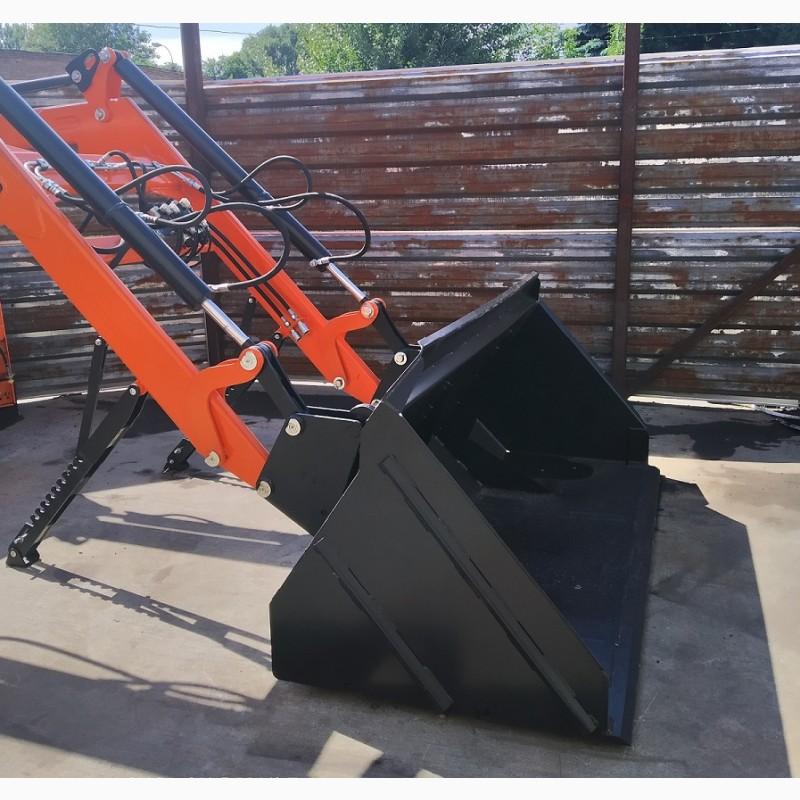

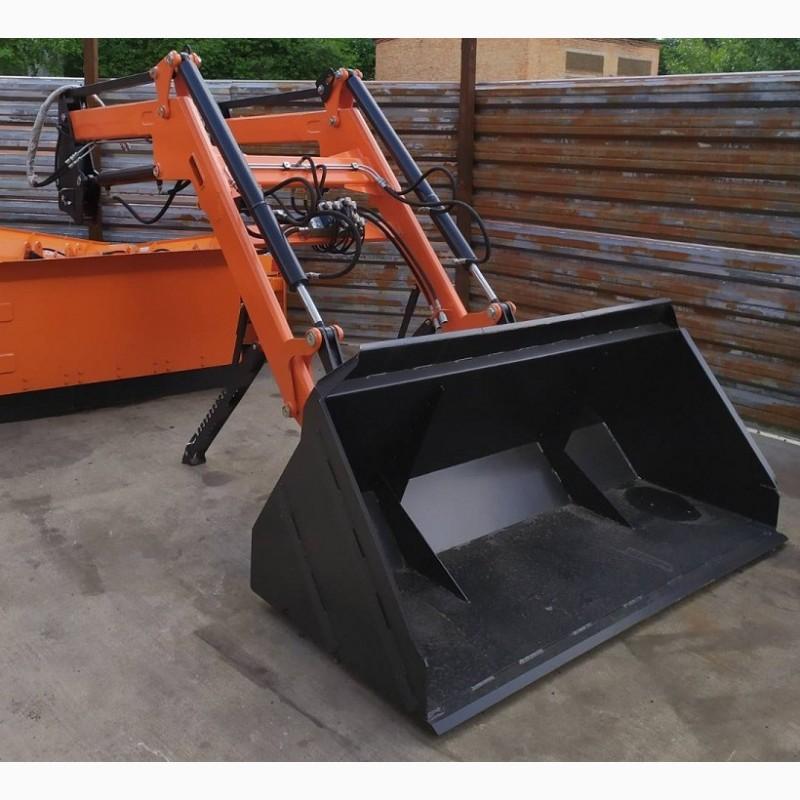

Front loader KUN for MTZ

Features:

Quick replacement of working units due to their fastening using the EURO frame.
Quick assembly/disassembly. A quick-release attachment and an electro-hydro distributor are used.
The electro-hydro distributor makes it much easier to connect the unit to the hydraulic system.
The frame is made of continuous, seamless timber with a wall thickness of 6 mm, which significantly strengthens the structure.
The unit is controlled using an electric joystick.
All finger joints are equipped with lubrication channels.
The frame design is designed in such a way that thetractor with the loader remains as maneuverable as possible.
Reinforced nalangeron fasteners.
In the basic configuration, the KuN loader is supplied with a bucket. The complete set can be replaced or supplemented with other attachments:
(//tractor-service.com)

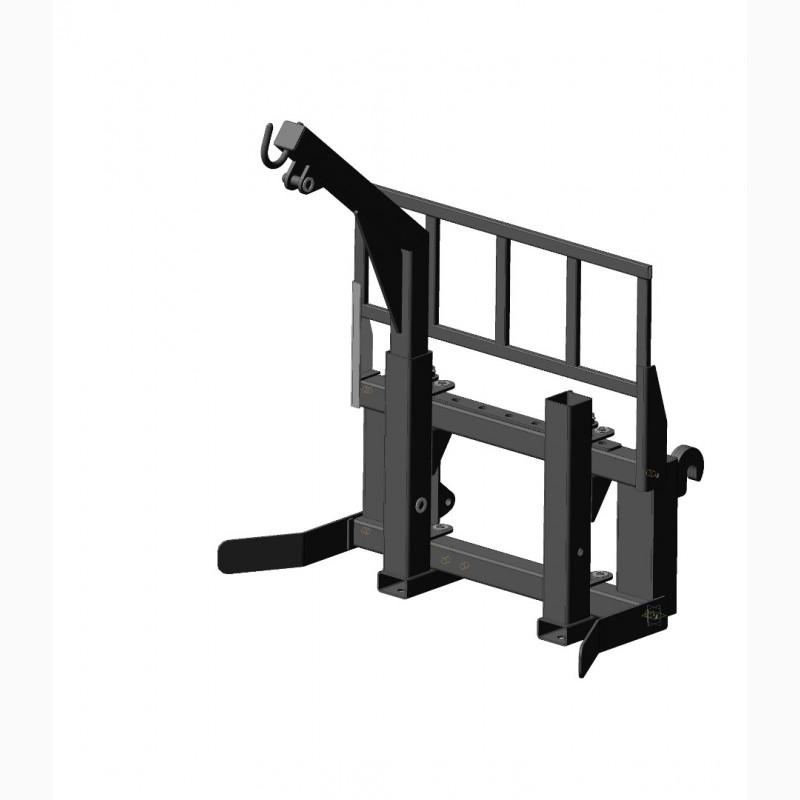

Hook for big-big;

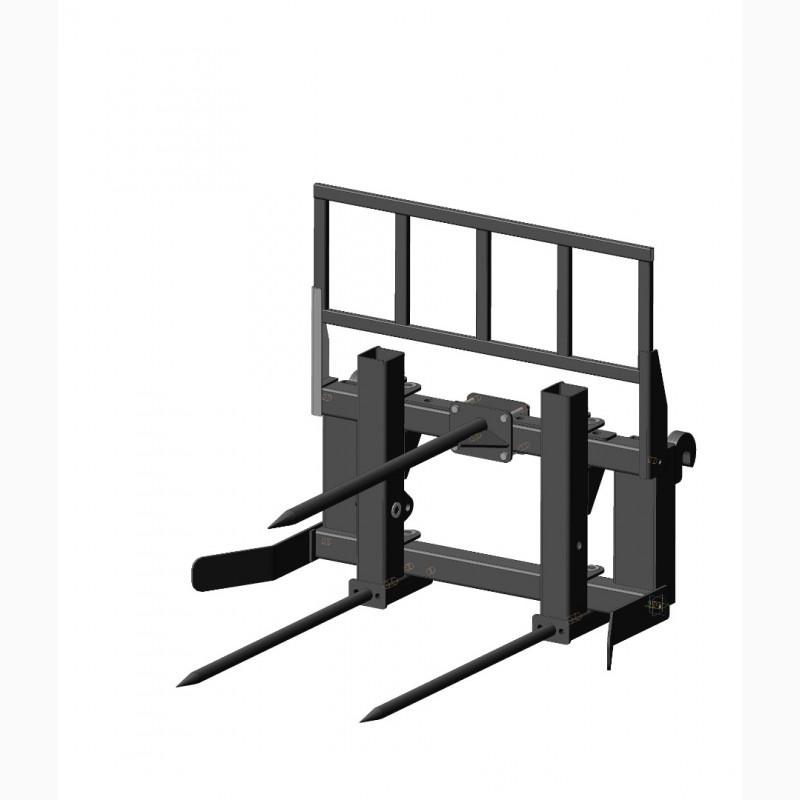

Bale fork;

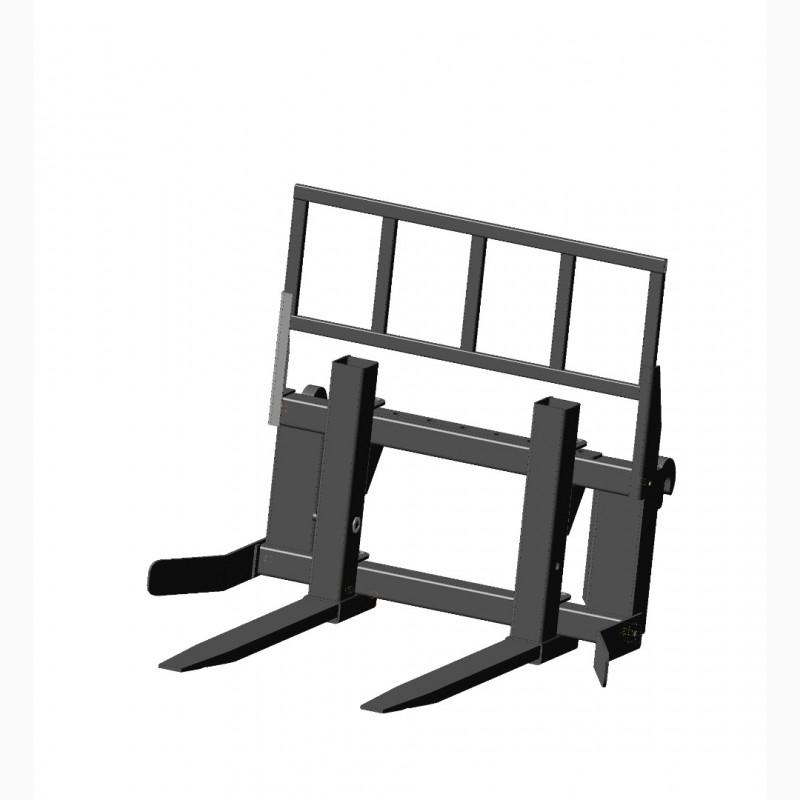

Fork for pallets;
Jaw bucket;

It is aggregated with tractors, capacity: 80-120 hp.
Unloading height, maximum: 4 m.
Load capacity in the entire range of lifting heights: 1500 kg.
Mounting: Frame EURO
Weight: 980 kg.
Bucket width: 2 m.
Bucket volume: from 0.6 to 1.2 m3
Unloading angle: 66°
Knife thickness: 20 mm.
