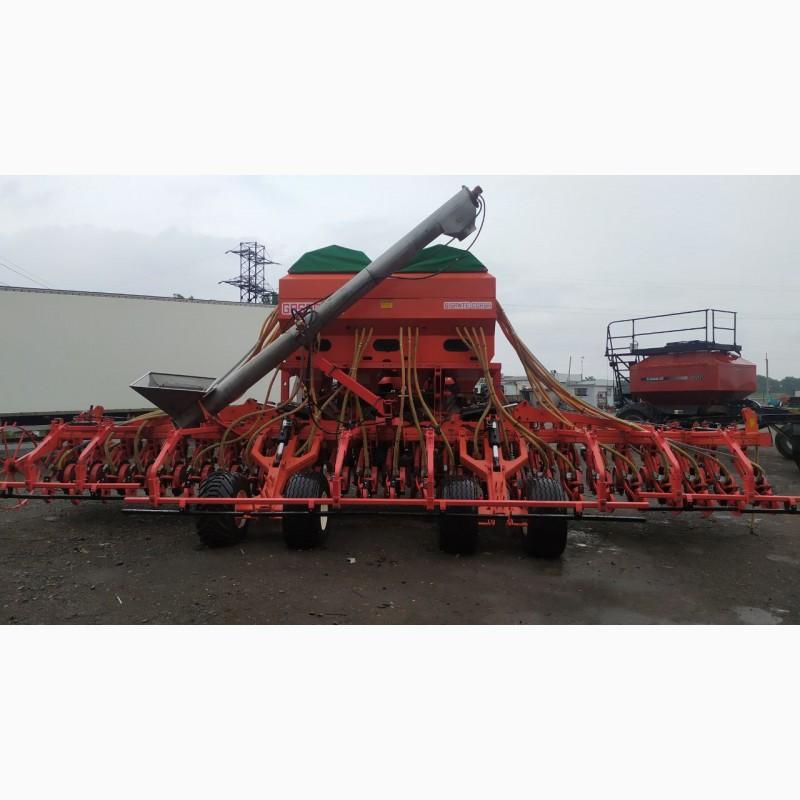

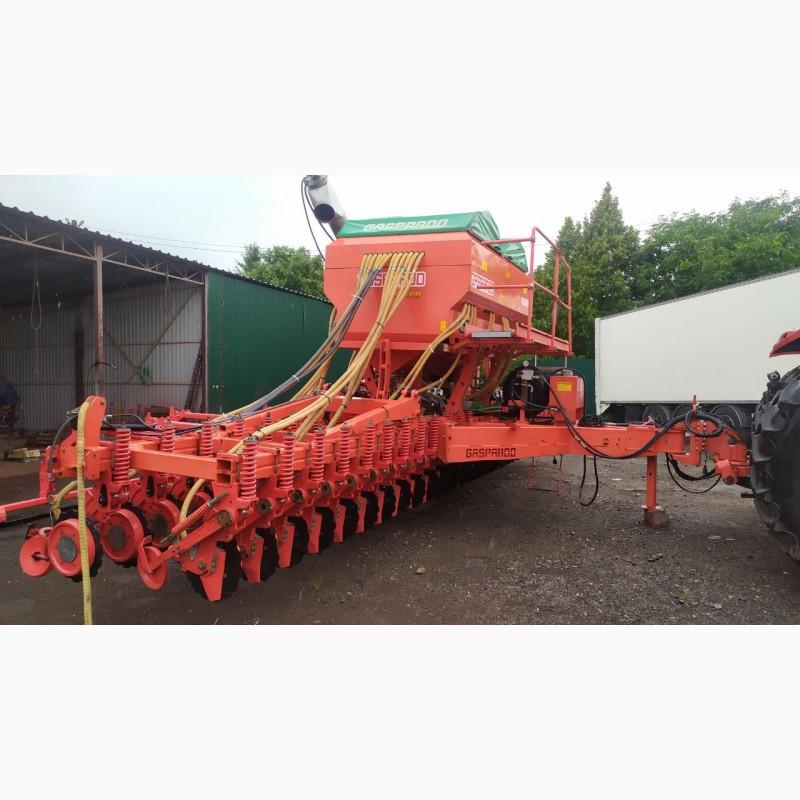

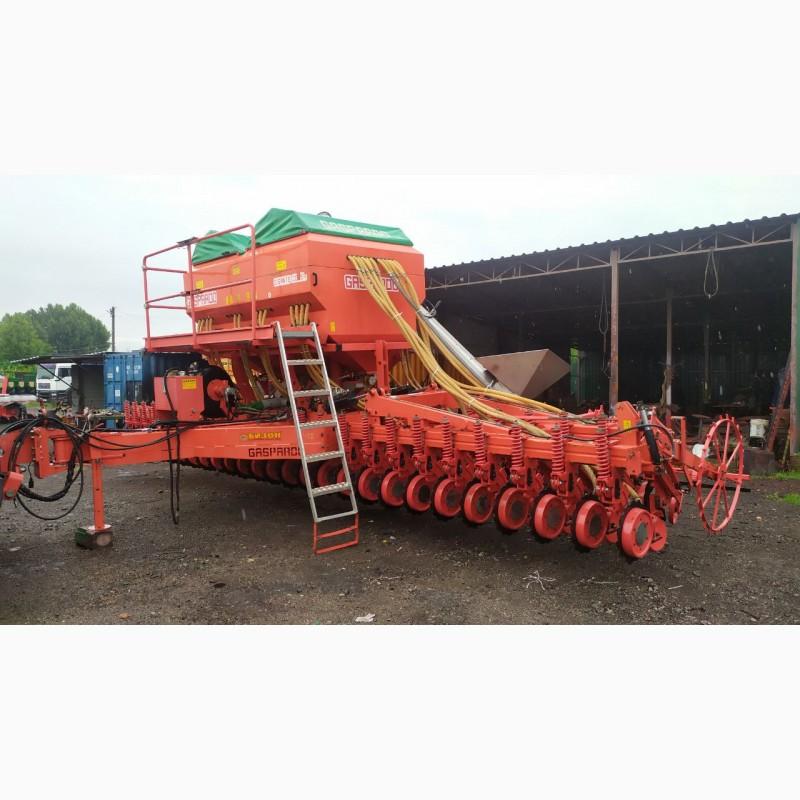

Grain seeder GASPARDO Gigante 900 Corsa - 9m (Used), Dnipropetrovsk Region.

Gigante pneumatic grain seeder is designed for "direct" sowing of grain crops, rapeseed, soybean, alfalfa and other fodder crops when working with zero tillage technology (No-Till).
Sowing in untreated soil is an environmentally safe treatment method that does not disturb soil fertility. Preparing the soil for sowing seeds with at least 20% of the remains of the previous crop on the surface is one of the ways to preserve the upper fertile soil layer. In order to prevent any loss of the fertile soil layer due to erosion, avoid compaction, increase water infiltration and reduce evaporation, as well as regulate soil temperature with the help of microorganisms, no-till sowing is increasingly used in modern agriculture as a reliable model.
MAIN ADVANTAGES:
- Application for stubble sowing of grain, leguminous and small-seeded crops using zero tillage technology;
- The sowing section consists of a toothed disc with a diameter of 475 mm and a powerful spring knife;
- Each section has an independent suspension;
- The pressure of the coulter on the soil is about 200 kg, so the coulter easily cuts any crop residues;
- Due to the completely independent installation of working elements, the coulter maximally copies the topography of the soil;
- Permissible seed sowing rate from 0.9 to 421 kg/ha;
- Autonomous hydraulic system of the turbine drive;
- Independent adjustment of coulter pressure on the soil for each coulter separately;
- Bunker with a vibration system to prevent seeding from caking;
- Coil dispenser for seed supply with mechanical drive and gearbox;
- A wide range of additional accessories and equipment.

LEMISH
In addition to cutting the stubble, forming and strengthening the furrow, sowing seeds, the ploughshare presses about 200 kg on the soil, thanks to which the machine can dig into the soil and "track" the topography of the area. The accuracy of sowing depth is ensured by limiters that can be changed depending on the type of cultivated soil.

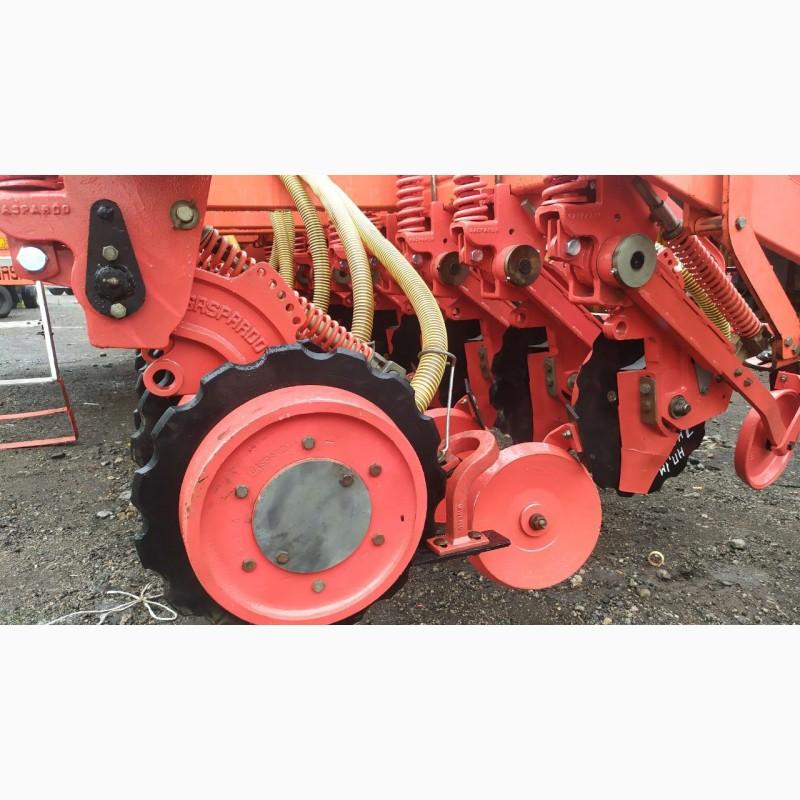

Each sowing coulter is equipped with a toothed disc of large diameter (475 mm), which cuts soil and plant residues. A powerful anchor-type coulter with a replaceable tip is firmly attached to this disc. The seeding depth control wheel of different diameters and widths is installed with the coulter, for any type of soil. The seeding depth adjustment wheel has a conical shape and is easy to install. This system guarantees effective soil treatment along the seeding line, which ends with closing the furrow by covering the seeds with loose soil. The improved disk attachment system allows it to rotate continuously, better trimming the residues and leaving a furrow with well-prepared soil.

STRIP PLATE
The thickness of the coulter is reduced and it is directed frontally in order to increase the angle of penetration into the ground and ensure thin furrow sowing, easy closing of the sowing furrow and reduce the necessary traction reinforcement. When marking the sowing line, the cast-iron rolling wheel (option) helps to avoid clogging, especially in wet soil or with a large amount of plant residues.

The GIGANTE MODEL FRAME COUPLING is a movable unit connected to the front drawbar, which guarantees high maneuverability of the unit. In the rear part, the frame is connected to a cart with largewheels, which is used for maneuvers during sowing and transportation. During work, thewheels cart are raised, which allows you to avoid tamping and compaction of the sown area and guarantee maximum soil copying.

PNEUMATIC DISTRIBUTION SYSTEM
The pneumatic system includes an independent hydraulic system with apump working directly from the tractor PTO shaft, a 70 l oil tank and a distributing valve that ensures constant operation regardless of the tractor engine speed.

Harrow FOR FINISHING TREATMENT
Tillage is completed with a harrow with flexible teeth, consisting of a supporting beam on which 4 swinging links are hinged for fastening the teeth. Thus, the harrow manages to copy the surface of the soil, putting again in the same place, the plant residues that were previously moved by the sowing coulter.(//tractor-service.com)

Complete set and additional equipment:
- Spring seed wrapping harrow.
- Set of rear marker lights.
- Hydraulic fan drive (RPM 1000 rpm).
- Cast iron wheel for wrapping seeds.
- Trial sowing tray.
- Hydraulic marker.
- Multiplier for tractors with a GDP of 1000 rpm. or 540 vol. / min.
- Conversion of DP 300 SPRINT from mounted to trailed modification.
- Conversion of DP 300 SPRINT from trailed to mounted modification.
- Electronic breakdown for hammering 2 + 2 rows.
- Manual switch for a separate row.
- Hopper with increased capacity for DP 300 SPRINT, DP 400 SPRINT and GIGANTE 400 (500 liters).
- Electronic counter of hectares.
- Electronic seed level control.
- Auger seed loader (hydraulic).
- Surface seeding depth limiter.
- Narrow cast-iron seed wrapping wheel.

Model Seeder GASPARDO Gigante 900 Corsa
Transport width, m 5.3
Working width, m 9.0
The maximum number of lines, pieces 50
Distance between lines, cm 18
Sowing depth, cm 0 - 8
Pneumatic seed distribution
Weight, kg 11380
The required power of the wheeled/tracked tractor, k.s. 280 / 220
Required wheel/track tractor power, kW 205 / 160
