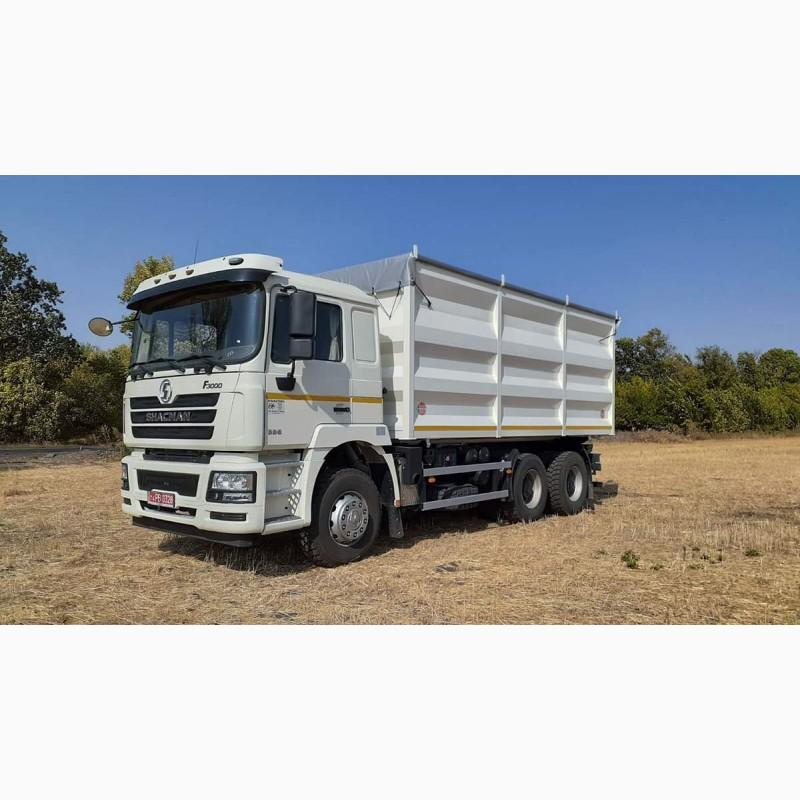

Shakman v/p grain dump truck 30 tons, Kyiv

Dump truck-grain truck Shakman Model SX3258DR384
Wheel formula - 6x4 Load capacity, kg - 30,000; Engine - Weichai WP10.375E53 Environmental class EURO-5 6-cylinder, in-line turbocharged diesel.
Power, hp - 375
Working volume, cm3 – 11576; The maximum torque, Nm/(rpm) 1500 / 1200-1500;
Gearbox - Shaanxi Fast Gear 12JSD160TA, mechanical, 12-speed, forward - 12, reverse - 2, fully synchronized; Suspension: MAN front axle (7.5 t), spring, with hydraulic shock absorbers, with anti-roll bar.
MAN rear bogie (16+16 t), balancer, with reactive rods, with stabilizer bar, two-stage retarder, with inter-axle and inter-wheel differential lock; BOSCH Common Rail fuel system Direct, fuel injection with a common fuel pump ramp and BOSCH injectors
Air filter - Fleetguard, centrifugal, dry type; Clutch EATON (manufacturer - USA) 430mm, dry, single disc with diaphragm spring.
Drive: hydraulic with pneumatic booster.
Main gear Shaanxi Han De Axle Two-stage gearbox with wheel planetary gear.
Gear ratio – 4.769; Power steering, integral type, screw-ball nut-rail-sector.
Brake system.
Working: pneumatic, dual-circuit, split, drum type brakes, ABS, dryer, relay valve, receiving valve, trailer control valve, trailer manual valve, independent trailer braking device.
Stoyankova: brake mechanisms with spring energy accumulators, manual brake valve(//tractor-service.com)
Auxiliary: automatic motor retarder - retarder ABS: six-channel 6S/6M WABCO;
Tyres – 315/80R22.5 (tubeless); Platform with two-way unloading.
Volume, m3 - 32;
Platform dimensions: length/width/height, mm: 6200/2500/1900;
Overall dimensions: Base, mm: 3790+1400
Track front/rear wheels, mm: 2036/1850
Front/rear overhang, mm: 1485/725
Clearance, mm: 320;
Frame - reinforced double (spar in spar); Mounting length of the frame, mm - 5430
Frame width, mm – 850;
The volume of the fuel tank, l - 300 (aluminum), with electric heating;
AdBlue tank volume, l – 40;
Cab: German MAN license, insulated, all-metal, two-seater, with one berth. Driver's pneumatic seat with armrest, climate control, electric windows, heated rear-view mirrors, steering column adjustable in angle and height, wide-angle rear-view mirrors, LED daytime running lights, fog lights, MP3/USB magneto. Cabin suspension - four shock absorbers, rear shock absorbers with hydraulic lock, triplex windshield, three-speed windshield wipers. Exclusive importer in Ukraine! Possible credit, leasing!
