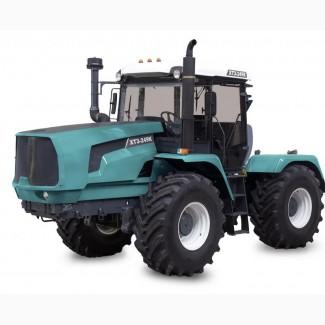

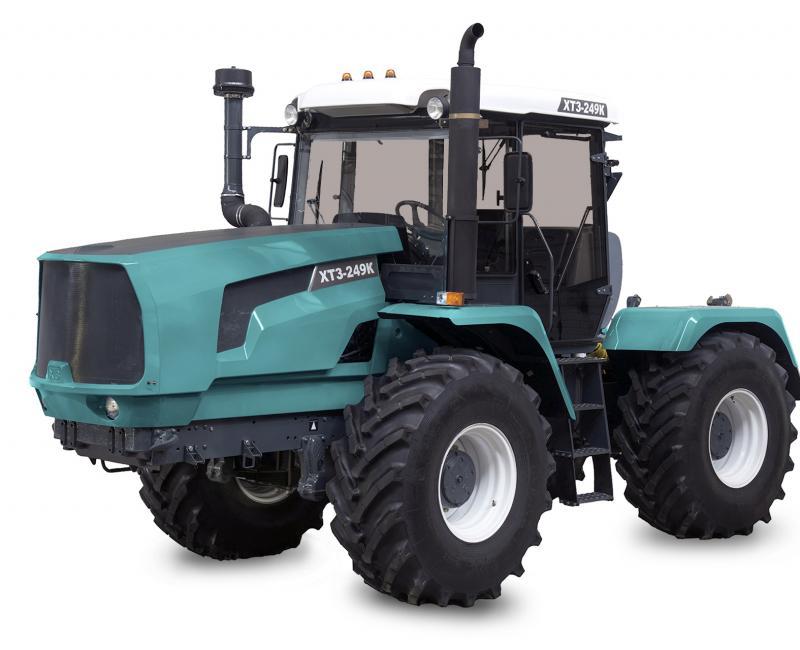

KHTZ-249K.20 tractor, Kharkiv region.

Description of the tractor
KhTZ-249K.20 is a further modernized version of the T-150K tractor. In the process of creation, the latest technologies were used, which made it possible to modify the transmission, hydraulics, as well as the suspension system for effective use of the tractor with modern high-speed agricultural implements. A specially developed ergonomic design in combination with a new lining allows to increase the working area of the operator's visibility, as well as simplify access to the main components of the tractor.

An undoubted advantage of the KhTZ-249K.20 tractor is its low cost of ownership.

The main use of the tractor is agriculture: basic tillage, sowing, harvesting, transportation, fodder harvesting.

Modernization of nodes:
New engine - six-cylinder, in-line, powerful - 240 hp, modern - Common Rail system, environmentally friendly - Stage III A, economical - 145 gr.kW/h engine
Gearbox – modernized oil cleaning system – applied new filter with increased service life from 250 to 500 mch., bypass valve moved to an accessible place, oil filler neck relocated.
The cabin has a new steering column, glued toning film, pneumatic handbrake, installed sun blind, improved interior lining, and also installed new LED headlights.

Technical characteristics
Engine
Engine model WEICHAI POWER WP7G240
Ecological class 3А
Working volume, l 7.47
Nominal power, kW (hp) 176 (240)
Nominal rotation frequency (rpm) 2200
Torque, Nm/rpm 1050/1500
Number of cylinders, units 6
Specific fuel consumption at nominal engine power, g/kWh (g/l.s.h) 198 (145)
Type of fuel system Common Rail
Chassis
Wheel formula All-wheel drive (4WD)
Gearbox PowerShift 12/4, mechanical, with hydraulic shifting of gears within each range
Maximum transport speed, km/h 33.67
Working speeds, km/h I – (3.37-6.64), II – (7.78-13.95), III – (17.9-33.67)(//tractor-service.com)
Tires 23.1 R26 Ф-37 НС10
Track width, mm 1860
Turning radius, m 6.7
Agricultural clearance, mm 400
Hydraulic system
Type of hydraulic system Combined with one hydraulic pump and one hydraulic tank
Productivitypump (l/min) 100
The number of free pairs of hydraulic outlets of the distributor is 4
Flow capacity of one section of the hydraulic distributor, l/min 0 – 100/option 0-200 mechanical adjustment of each section
Working sections with hydraulic motors, pcs. 2
Maximum fluid supply for working with hydraulic motors, l/min 55
Hinged system
Type of hinged system Articulated-lever mechanism with longitudinal rods and hook grabs
The dimensions of the connecting layers, mm 32×51 – upper pull, 37×45 – lower pull
Maximum load capacity, kg 5000
PTO
PTO type Nezavisimy. Single-stage gearbox with hydraulic engagement clutch and oil cooling heat exchanger
PTO speed, rpm 540 / 1000
The number of shank slots, pcs. 20 (45 mm) involute - installed on the tractor, 8 (38 mm) straight side - included in the ZyP kit
Electrical system
Mains voltage, V 12
Starter voltage, V 12
Accumulator battery 6ST-190A3, 2 pcs.
Overall dimensions and mass
Length, width, height, mm 6596, 2460, 3565
Operating mass (without ballast), kg 8480
Refueling capacities
Fuel tank, l 430
