DPM-25-H3-01 motor, DPM25-H3-01 electric motor, Kharkiv region.

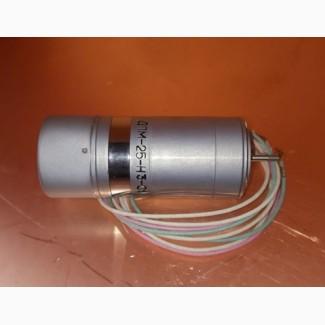

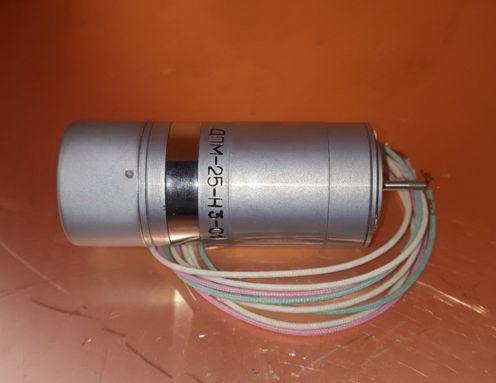

Electric motor DPM-25-Н3-01 (DPM25-Н3-01, DPM 25-Н3-01, DPM-25 H3-01, DPM25 H3-01, DPM 25 H3-01, DPM-25-H3 01, DPM25-H3 01, DPM 25-H3 01, DPM25H301)
The DPM-25-N3-01 electric motor is a DC machine with excitation from a permanent magnet and a built-in stabilizer. Designed for use in automation systems and service devices.
Overall dimensions - 59mm.
Technical characteristics of the electric motor DPM-25-N3-01:
Power supply:
- minimum - 24V;
- nominal - 27V;
- maximum - 31V;
Rotational frequency:
- PSI – 6000 rpm ±120 rpm;
- operational - ±180 rpm;(//tractor-service.com)
Load moment:
- nominal - 5 gs.ohm/mNm-105 gs.ohm/mNm and 0.495 gs.ohm/mNm-0.985 gs.ohm/mNm;
- start - 120 gs.ohm/mNm and 11.8 gs.ohm/mNm;
Current consumption:
- PSI - 0.22A;
- operational - 0.37A;
Useful power - 0.616W;
Power consumption - 9.99 W;
Mass of DPM-25-N3-01 - 0.150 kg.
Specify the price.
Phone: (О66) 688-74-75, (О67) З15-З6-ЗЗ
