Pump for pumping juices 1Г2-ОПД (25 M³/H | 50-1Ц7, 1 - 31), Poltava region.

Nasos 1G2-OPD pishchevoy
pump centrifugal food production Feniks-Techservice, Ukraine
for pumping food products, juice, beer, wine, milk and similar food products in viscosity from t to 90С

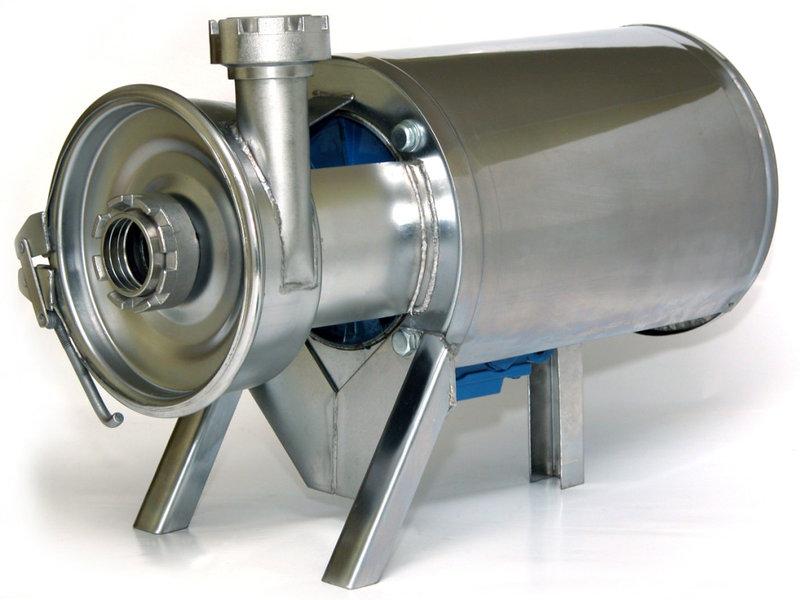

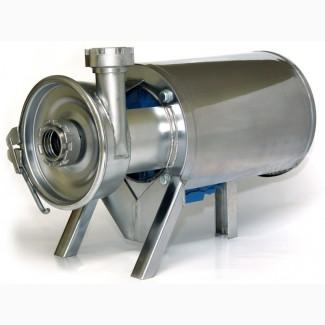

Pump 1G2-OPD

Pump device centrifugal food pump.

By design, a centrifugal food electric pump for pumping food products, juice, beer, wine, milk, single-stage, cantilever-monoblock with closed working bladeswheels. In the following text, an electric pump for pumping food, juice, beer, wine, milk is called a "pump". It can be bought from us instantly if it is in stock, and also ordered. And in the shortest possible time to get the ego into its operation.

The centrifugal food pump is installed without a foundation on three legs. All parts of the pump that come into contact with the pumped product are made of stainless steel and materials approved for use in the food industry.

The main components of a centrifugal food pump: electric motor, pump body, support, impeller.

The pump cover is pressed against the pump body with the help of a clamping ring. The rubber ring serves to seal the working chamber of the centrifugal pump, formed by the pump housing and cover. The pump cover has a threaded fitting in the center, to which the suction pipe is attached by means of a union nut. The ring serves to seal the gap in the connection .

Inside the housing of the food pump, an impeller is installed, fixed with a nut on the tip, pressed onto the shaft of the electric motor and fixed with a pin.(//tractor-service.com)

The end seal creates a seal at the point of passage of the tip into the pump chamber. The seal consists of an oil seal, a sleeve and a star.

To the outlet pipe of the pump body, the nozzle of the discharge pipeline is attached by means of a union nut through a sealing ring.

A protective cover is installed to protect the electric motor from water ingress. A grounding clamp is installed on the end wall of the casing.

The principle of operation of the food centrifugal pump for pumping food products, juice, beer, wine, milk of the company Feniks-Techservis made in Ukraine.

The pump works as follows. Pumped liquid is supplied to the centrifugal food pump connected to the suction and discharge pipelines.

A centrifugal electric pump is included for pumping food, juice, beer, wine, milk, and by means of a working wheelwheel is created. pressure and liquid supply to the discharge pipe.

The pump is not self-priming and requires preliminary filling. Centrifugal food pump is perfect for pumping milk, juice, wine, beer and substances similar in physical properties.

Fenix-Techservice (Poltava) produces in Ukraine, centrifugal pumps for pumping food, juice, beer, wine, milk of good quality of different modifications:
1g2-opd, 2g2-opd, v3-ora-10, v3-ora-2, v3-ora, g2-opa, g2-opb, milk pump, g2-opg, g2-opd, g2-ope, disperser, nts-12-10, nshm, nshm-10, centrifugal pump, buy, order , in Ukraine
