Hub IL30-95/6H-M20 FKL, analog IL30-95/6H-M20 Celsan, IL30-95/6H-M20 Checchi&Magli, Dnipropetrovsk region.

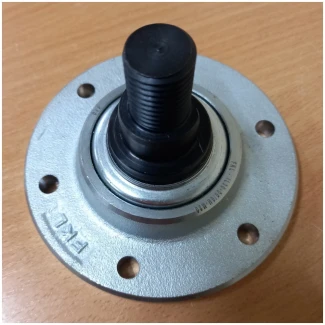

We offer for delivery the hub of the cutting assembly IL30-95/6H-M20 FKL (Serbia).
Field of application -seeding equipment.

The distance between the centers of the holes is 95.5, the outer diameter is 117, the diameter of the hole is 28, the external thread is M20, the total length is 76, the total length of the flange is 35, the length of the threaded part is 25.5, the weight is 1.21, the dynamic load is 29.6, the static load is 21.0.
(//tractor-service.com)
OEM: IL30-95/6H-M20 Celsan, IL30-95/6H-M20 Checchi&Magli.

IL30-95/6H-M20 is a bearing unit for adverse sowing conditions. This is a reinforced version of the IL20, the carrying capacity is increased by 30%.
The design of the unit is made as a radial thrust four-contact bearing, in which the flange is the outer ring of the bearing. This makes it possible to operate the seeder at a higher speed and in aggressive conditions.
The galvanized surface of the flange provides reliable anti-corrosion protection. The forged flange increases the rigidity of the bearing assembly and prevents deformation during installation and operation.
The ability to operate the hub without additionallubricant and maintenance - increases the service life and reduces costs during its operation.
