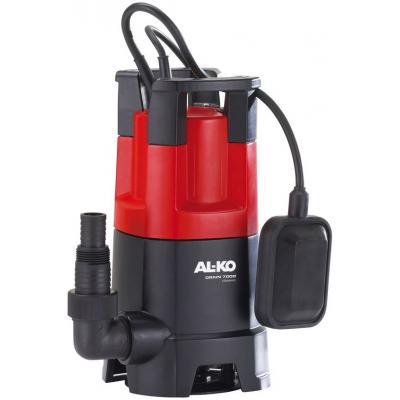

Submersible pump for dirty water AL-KO Drain 7000 Classic
Type of water: for dirty water
Water level control: float mechanism
Grinding function: no
Mains voltage: 220 V
Engine power: 350 W
Productivity: 7000 l/h
Head height: 6 m
Maximum depth of immersion: 5 m
Type of pumped liquid: dirty water
The maximum size of pumped particles: 30 mm
Spout/Connection Diameter: 1/4"
Automatic operation on/off: +
Pump housing material: technopolymer
Pump chamber material: technopolymer(//tractor-service.com)
Work materialwheels: technopolymer
Motor shaft material: stainless steel
Mechanical sealing: ceramic graphite.
Protection against dry running: +
Overload protection: +
The maximum temperature of the pumped liquid: 35°C
The location of the pressure nozzle: lateral
Universal adapter forhose: +
Degree of protection: IP68
Electric cable: 10 m
Weight: 10 kg
Depth: 213 mm
Width: 152 mm
Height: 308 mm
The principle of action of the AL-KO DRAIN 7000 CLASSIC series submersible pump consists in the suction of the pumped liquid through the slits and its further movement to the pump outlet. Therefore, the scope of use of this model is not limited to pumping or pumping water from storage tanks. The presented pumping unit is also used for taking water from mines and wells, as well as for removing liquid from absorbing wells and drains. At the same time, an essential feature of the DRAIN-7000 model is high-quality transportation of dirty water with a maximum particle diameter of 30 mm and a proportion of suspended inclusions of up to 5%. In addition, the optimal ratio of the power and overall dimensions of the pump, as well as the impressive for this ratio the speed of liquid supply (7000 dm.cubic/h) and the head (up to 6 m) deserve attention.
