Weeding cultivator KPK-5, 6, KRN-5, 6, Lviv region.

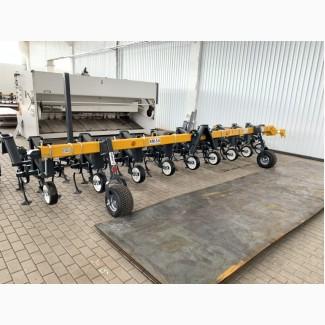

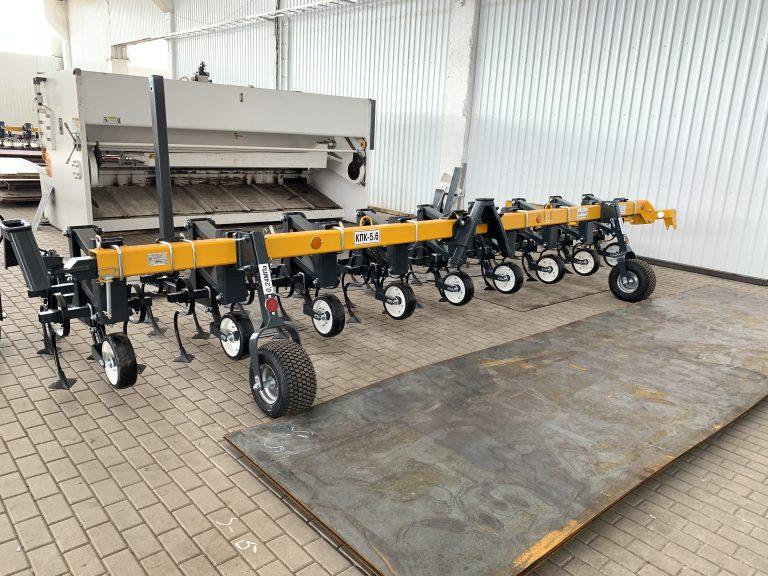

Cultivator for inter-row cultivation of PDA - 5.6 series "Veles".

Due to the unit's creation of ideal mulch and fine-grained soil, it not only preserves, but also contributes to the accumulation of moisture.

The PDA section is equipped with 5 Bellota vibration racks with 150 mm arrow legs with an overlap of at least 50 mm. The arrangement of the working bodies can vary depending on the machined row spacing - from 450 to 700 mm, there is also an option to use sections for continuous soil cultivation. 151обработки почвы. Пантографный механизм обеспечивает отличное копирование почвы и работает на необслуживаемых втулках, а использование транспортного устройства, обеспечивает удобную транспортировку к полю.

This is an ideal option for arid regions with a small amount of moisture.

Distinctivefeatures of the cultivator PDA-5.6:
(//tractor-service.com)
Weight - 1100 kg;
The sections are attached to the frame with the help of a pantograph mechanism, which in combination with the increased mass of the sections contributes to the most accurate copying of the soil relief and the maintenance of the specified processing depth;
Depending on the layout of the working bodies, the width of inter-row processing can be adjusted in the range from 450 to 700 mm;
Each of the 9 sections is equipped with 5 S-shaped shock absorbers manufactured by "Bellota" (Italy);
Each rack is equipped with a 150 mm arrow foot manufactured by "Bellota" (Spain).
Sections are installed on composite bushings that do not require maintenance. The working area of the bushings is several thousand hectares.
The use of shock absorbers instead of standard razors ensures:
100% weed destruction.
Creation of good mulch between rows (5-7 cm.)
Learning rows.
The use of a cultivator for continuous (levelling) cultivation (possible work up to 15 cm)
