Packing line in big bags with the platform of the operator "KOMPACT-2", Kharkiv region.

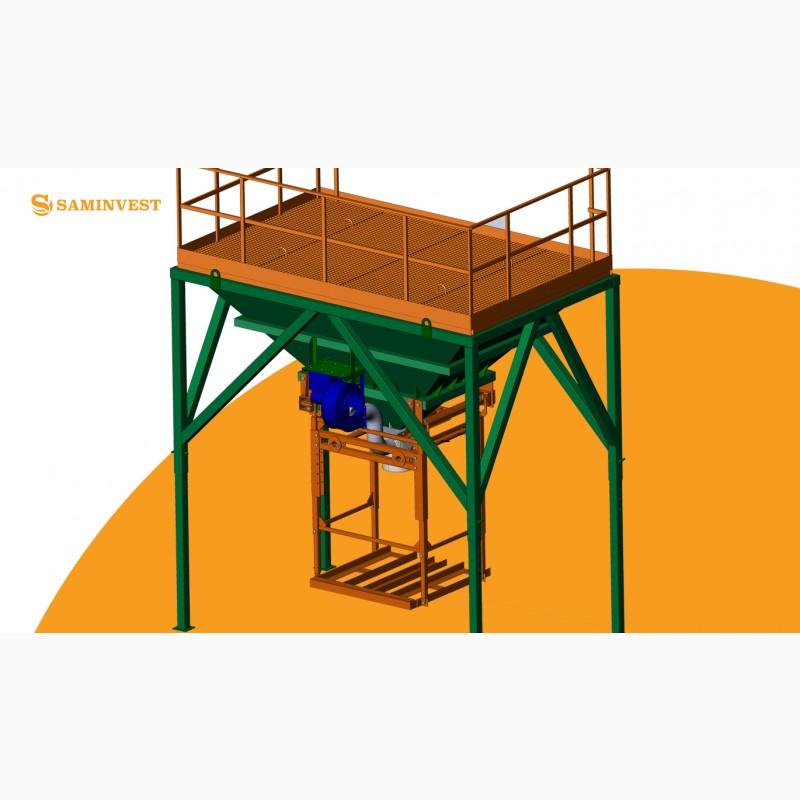

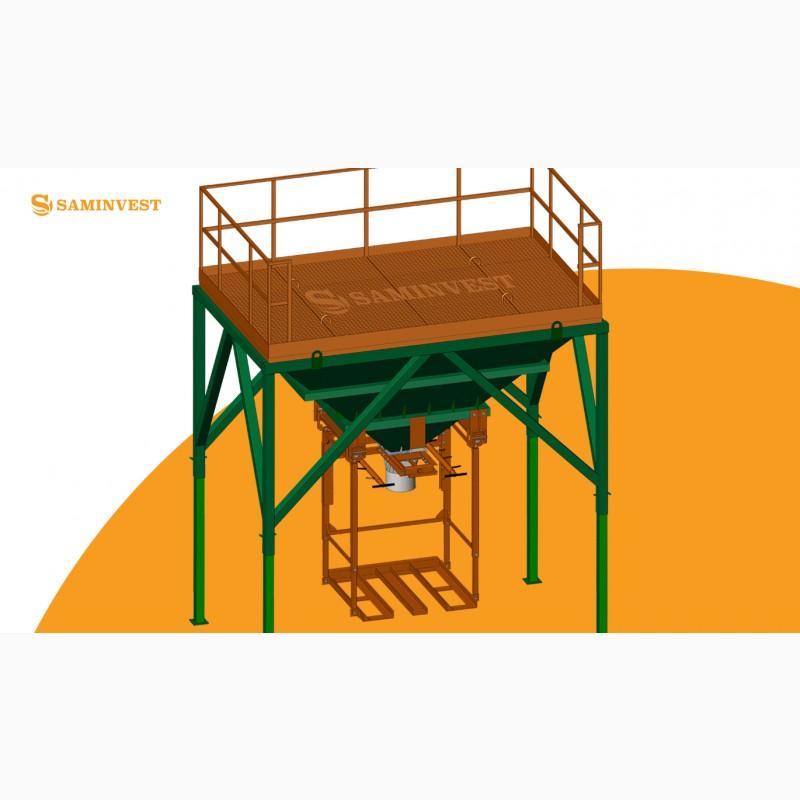

We present to your attention a complex filling station in Big-bag bags For convenience, the station is equipped with a platform for the operator, which will allow you to repackage products from big-bags into new big-bags, this is relevant for those whose products depend on the warehouse for a long time and require a commercial appearance. Thanks to the lattice flooring on the site, you can install a big bag and cut it in a convenient way for filtering your production into the bunker through the flooring.

Для удобства станция оснащена площадкой для оператора, что позволит Вам перефасовывать продукцию из биг-бегов в новые биг-беги, это актуально для тех, чья продукция длительное время залеживается на складе и требует коммерческого вида. Благодаря решетчатому настилу на площадке Вы сможете установить биг-бег и разрезать его удобным способом для фильтрации Вашей продукции в бункер через настил.

Also, the line is equipped with a big-beg inflation unit, so you don't have to spread the big-begs manually, especially this is convenient when the big-beg has a polyethylene pad inside it.

Weighing is carried out with the help ofplatform scales, which are installed under the conveyor with a control panel and an electronic panel to determine the accuracy of dosing.
Dosing is carried out by the operator with the help of a sliding (manual) valve.

After the weighing process, the big bag moves on conveyors to the shipping point. It is recommended to remove the Big Bag from the transporter using aforklift truck or a stacker.

Features:

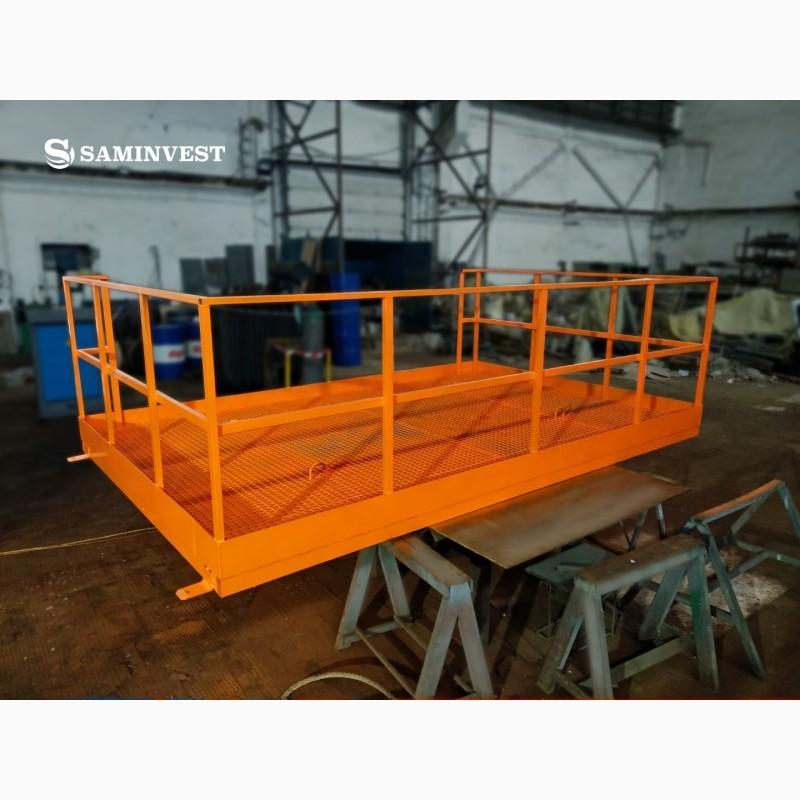

• Operator site:
It is equipped with railings on three sides with a height of 1 m.
Width: 2250 mm
Length: 3600 mm
The size of the floor cell: 34x38 mm.
Loading: 1159 kg/m2

• Storage bunker:(//tractor-service.com)
Hopper volume: V = 5.5 m3 (can be increased to 7 m3);
Height: adjustable from 3200 mm to 3900 mm with the help of extendable legs with latches;
Height with the operator's platform: about 4325 mm - 5025 mm.
Length: 3700 mm;
Width: 2350 mm.

• Weight basket for big bags:
Equipped with a gripping system with a unit for weighing and filling big bags;
Height: adjustable from 1400 mm to 2100 mm with the help of a retractable pallet with latches;
Permissible weight of big-begs: up to 1000 kg;
Type of big bag: 2 or 4 slings.

• Centrifugal fan (inflating unit for big bags):
Rotation speed: 3000 rpm.
Device protection class: 54 IP
Voltage: 220/380 V
Power: 1.1 kW
Current frequency: 50 Hz
Type of electric motor: asynchronous
Nominal current consumption: 2.7 In (A)

• Total weight of the line: 2029 kg
