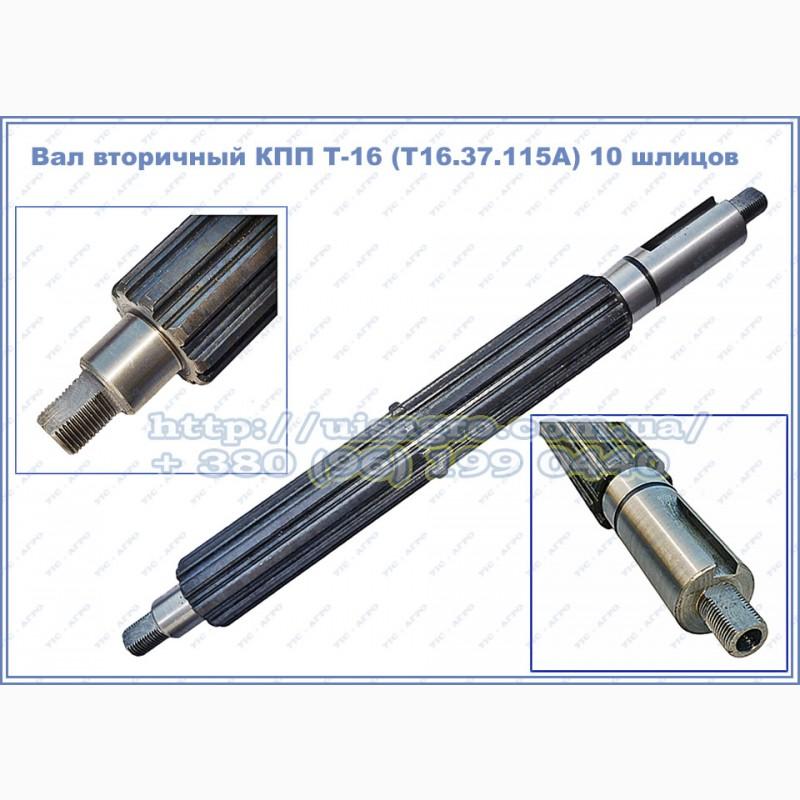

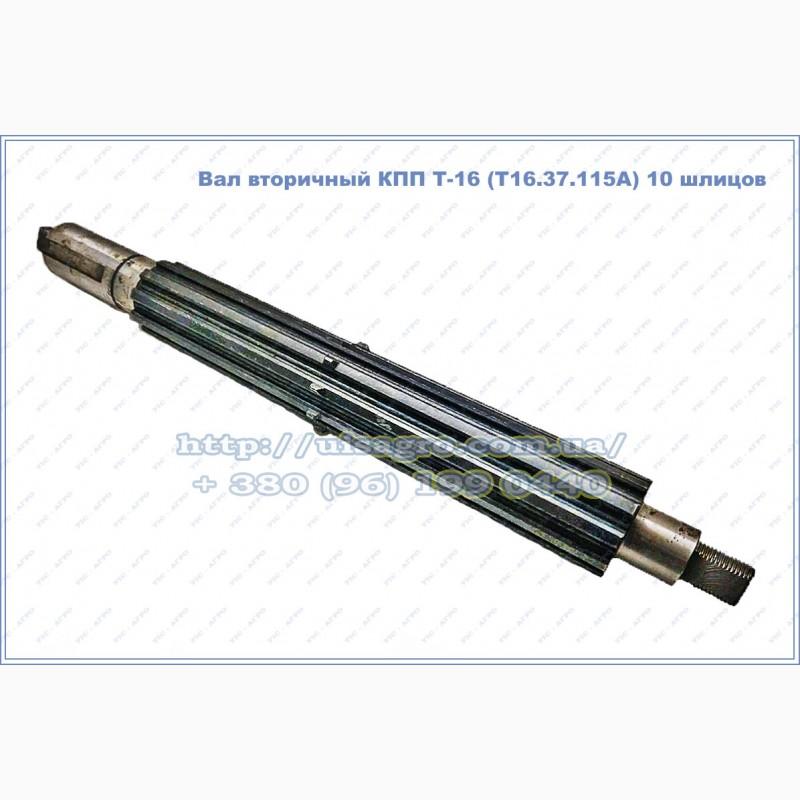

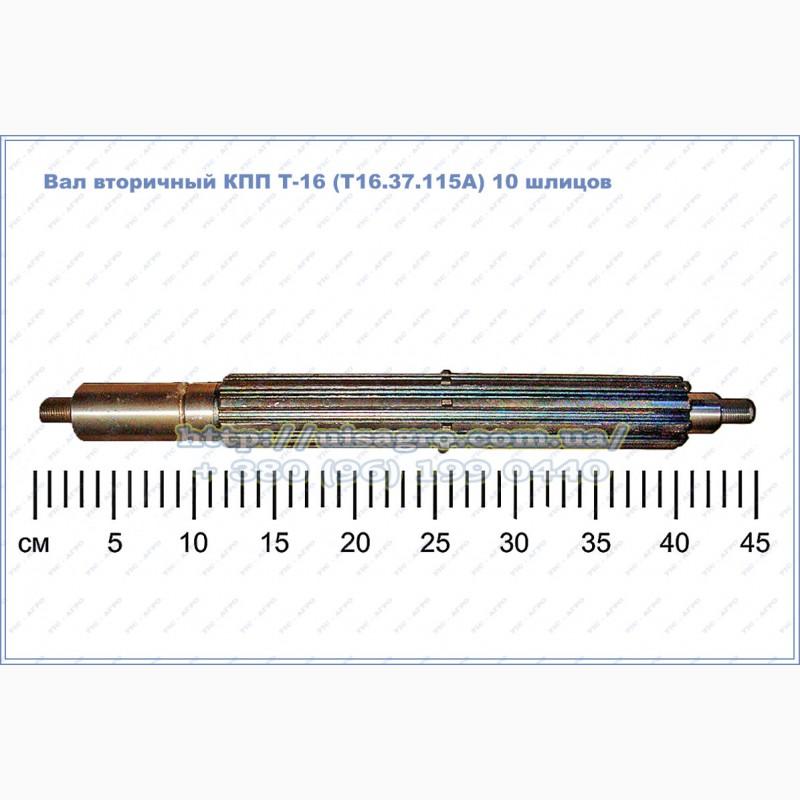

Shaft secondary gearbox T-16 (Т16.37.115А) 10 splines, Kharkiv region.

SAMIY BOLSHOY ASSORTMENT, WHOLESALE PRICES

Buy a new spare shaft T16.37.115-А (Z=10) gearboxwheel tractor СШ-2540 (T-16MG, T-16), at a minimally low price with a maximum quality guarantee. It is used in self-propelled chassis (tractors) T-16, T-16M, T-16MG, СШ-25, СШ-2540 produced by the Kharkiv factory of self-propelled chassis (Kharkov, Ukraine).

Weight — 4,020 kg Material — steel 40X

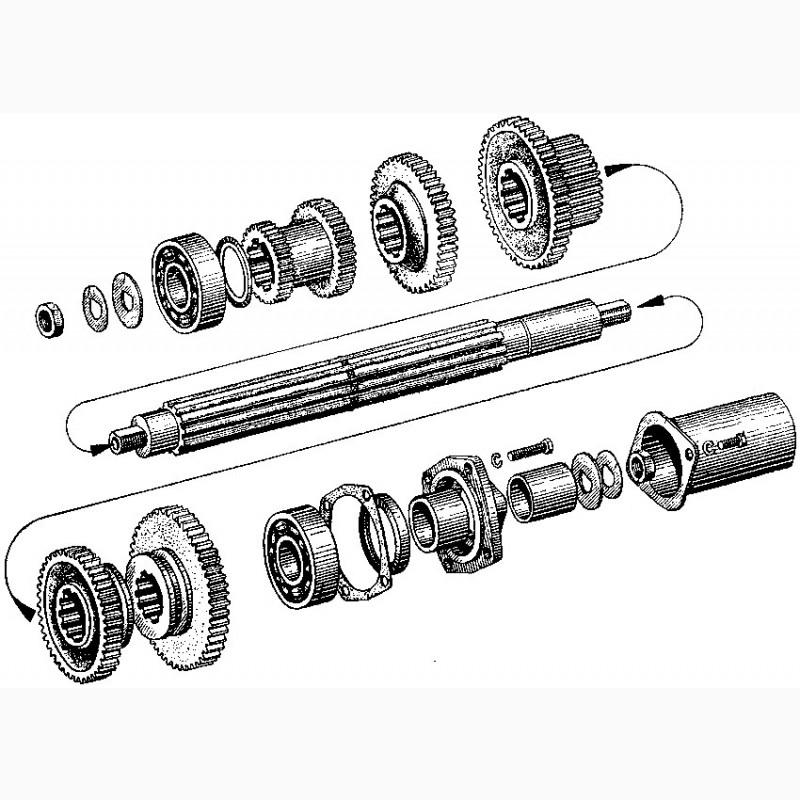

The secondary shaft T16.37.115A has ten splines. In the middle part of the shaft, a flange is made, which is a stop for the driven fixed gears of fifth and sixth gears СШ20.37.116, third gear T16.37.117А, second gear and differential T16.37.118А. Fixed driven gears are clamped with a crown nut through the locking washer DSSH14.37.120A, the inner ring of the bearing 405 and the thrust washer T16.37.135. On the right slotted part of the shaft, movable driven gears of the fourth gear and reverse gear T16.37.119A, as well as the gear of the first and additional decelerated gear T16.37.121A are mounted. The left ball bearing 405 is freely installed in the hole of the partition of the gearbox housing. The right ball bearing 307 of the secondary shaft is installed in a socket in the right wall of the gearbox housing. The inner ring of the bearing is pressed to the splined part of the shaft through spacer bushings T16.37.122 and T16.37.123M with a crown nut. At the right end of the shaft there is a groove for the drive pulley fastening key.
(//tractor-service.com)
The original. Manufacturer's warranty and quality. High strength, reliability and wear resistance is due to modern production technologies and high-quality materials. DO NOT CHINA. Not artisanal production.

We sell anyspare parts for tractors T-16(СШ-2540), T-25А, T-25FM(ХТЗ-2511), T-40, ЮМЗ, MTZ, DT-75, T-150, T-150К, T-156, ХТЗ-17021, ХTZ-17221 and cars KAMAZ, GAZ families, as well as kselkhoztechnike, a wide assortment is available, wholesale prices. All products comply with all necessary norms and standards.

We sell all over Ukraine. Fast delivery with the help of transport companies, to any city in Ukraine, within 1-2 days and on the terms of transport companies.

Cash on delivery, cash on delivery. Cashless payment (with VAT). Transfer to a PrivatBank card. 100% refund. Discounts for regular customers.
