AUSBAU mobile ramp from the manufacturer, Kyiv

Standard models with loads of 6, 8, 10 and 12 tons. We offer mobile ramps from the manufacturer of any size to order. They save the time of loading/unloading the truck/wagon. They can move around the territory of the enterprise with the help of installed industrial wheels. AUSBAU loading ramps will work in any weather.

Warranty: 18 months. Worldwide delivery. Ready, to order. EU compliance.

Learn more about loading ramps on our website: ausbau.pl id: WIy68gQ

Technical characteristics:

● Ramp load, kg - 6000 / 8000 / 10000 / 12000
● Total length of the ramp, mm - 9000 / 9500 / 10500 / 11200 / 12000 / 13000
● The total width of the ramp, mm - 2130
● Roadway width, mm - 2000
● Length of the inclined part, mm - 8000 / 8500 / 9200 / 9900
● Apparel length, mm - 300
● Min. working height, mm - 900
● Max. working height, mm - 1550 / 1750
● Height of fence boards, mm - 180
● The number of folding drives, pcs - 2
● Number of wheels, pcs - 2(//tractor-service.com)
●Wheels - solid cast
● Material - S235
● Covering the roadway - galvanized anti-slip grid
● Components - locking brakes – 2 pcs., coupling device – 1 pc., set of chains for the ramp – 7 pcs., hand pump – 1 pc.

Additional options:

● hydroelectric station on the ramp;
● mobile trestle with three-way unloading. Supplied with safety feet;

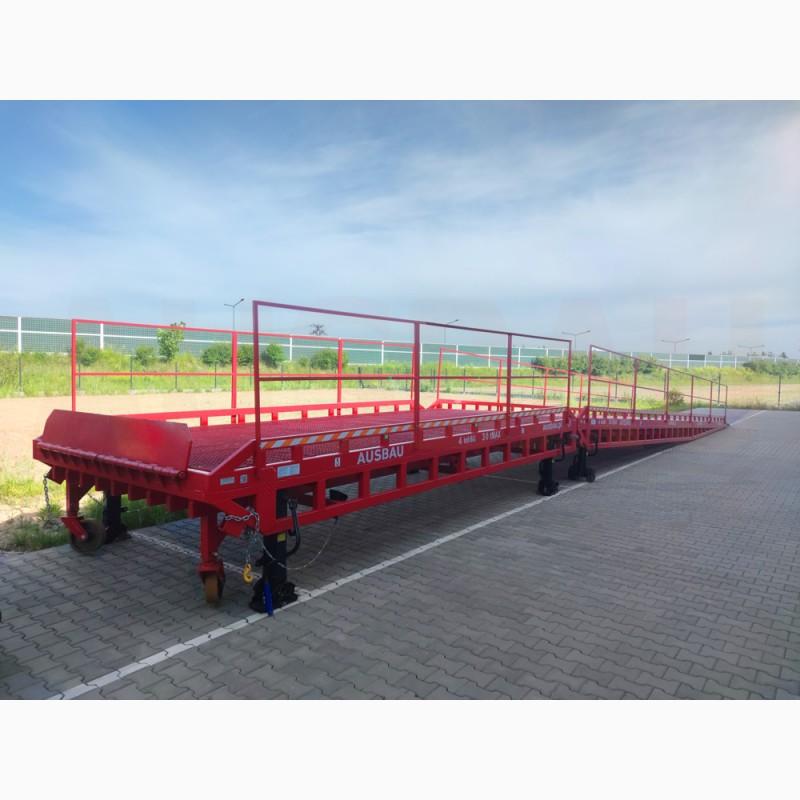

● safety adjustable legs, installed on the ramp for increased safety;

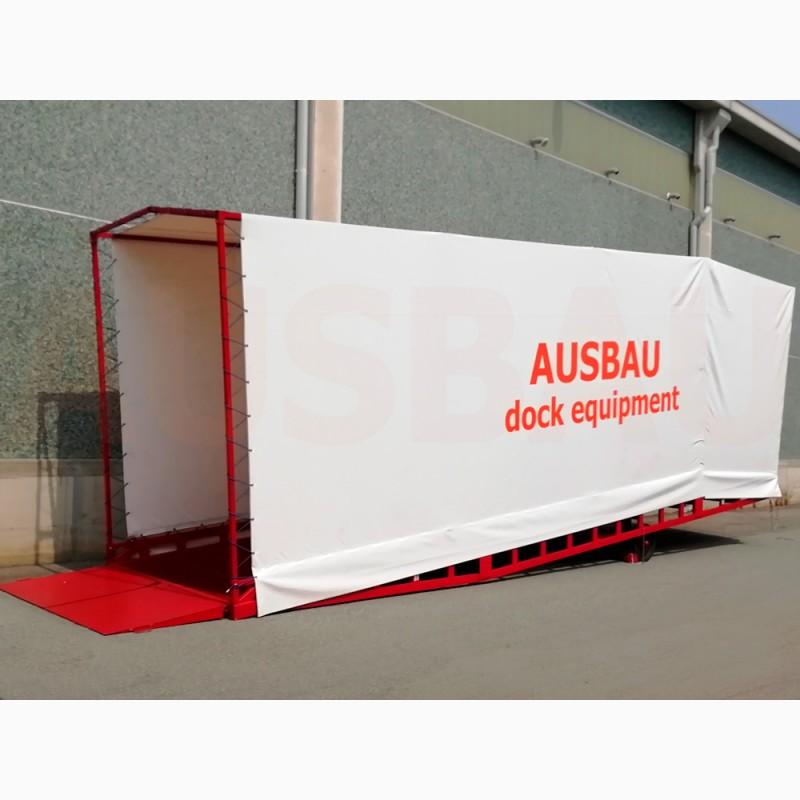

● awning over the carriageway of the ramp;
● additional railings 1100 mm high;
● additional pair of wheels: 4 instead of 2;
● choosing a different color (standard color – red).

The principle of operation of the mobile ramp:

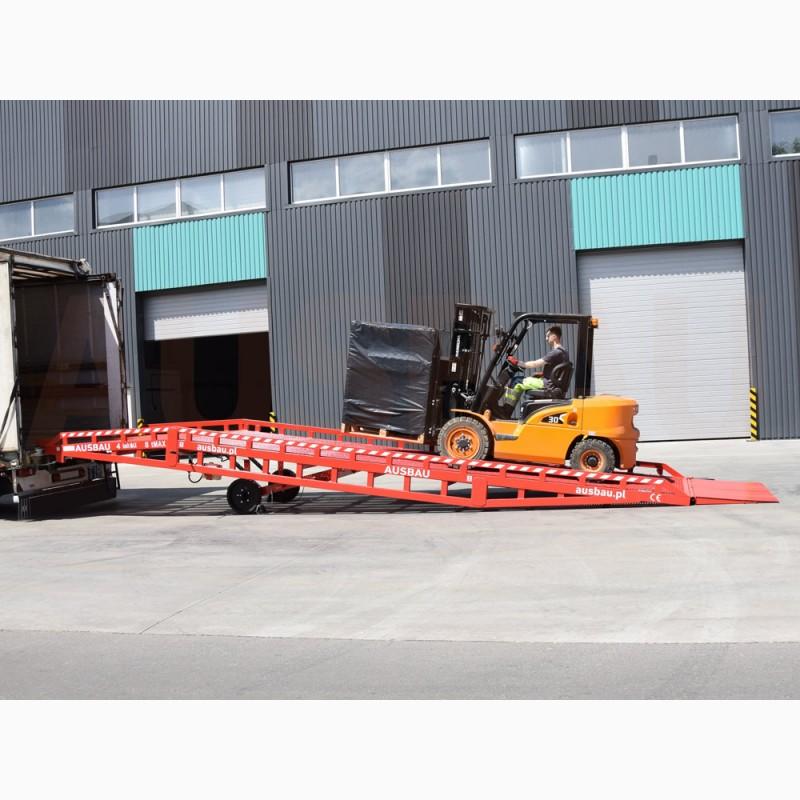

The loader drives the ramp to the truck, bringing the edge of the trestle (inserting the fork into the rigid swivel coupling). With the help ofhydraulic pump, the height of the ramp is set to the required level (from 900 mm to 1750 mm). Locking brakes and chains are included with the ramp. Brakes are needed to prevent the ramp from moving. Chains - for additional attachment of the ramp to the truck. Then the forklift moves along the mobile trestle, driving inside the truck or container.

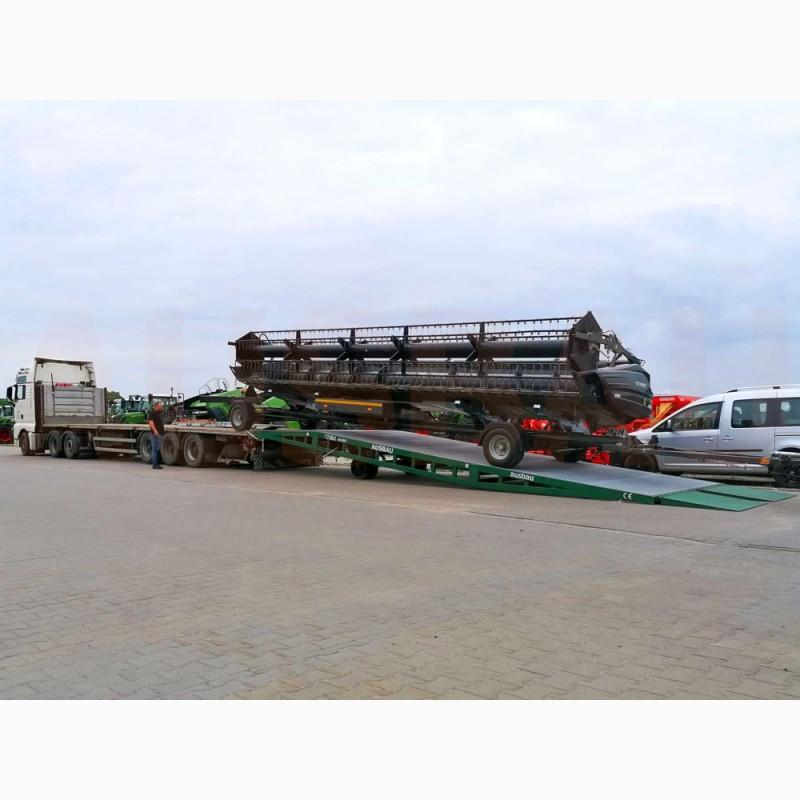

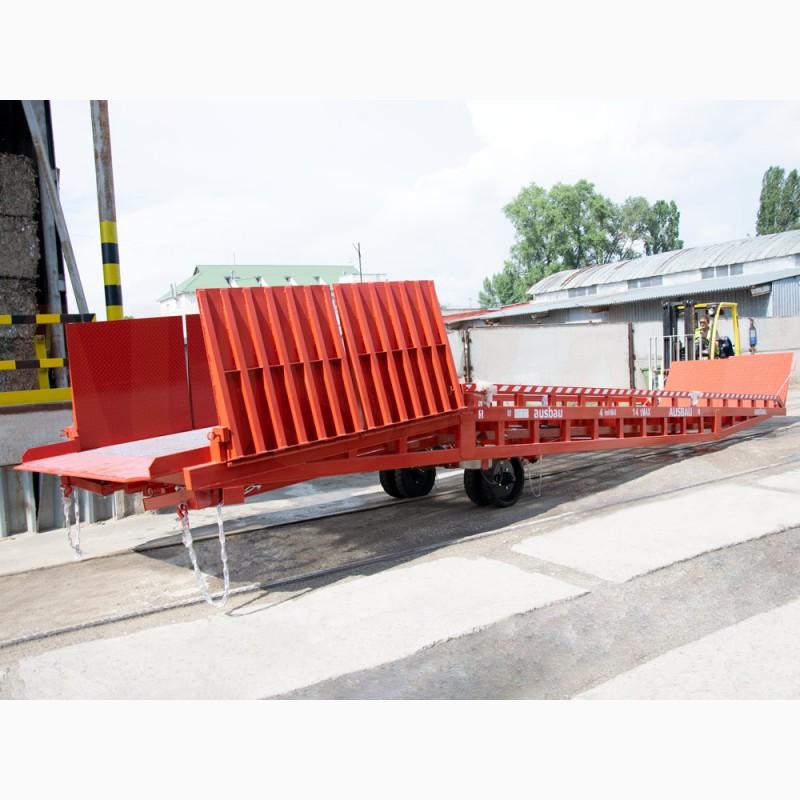

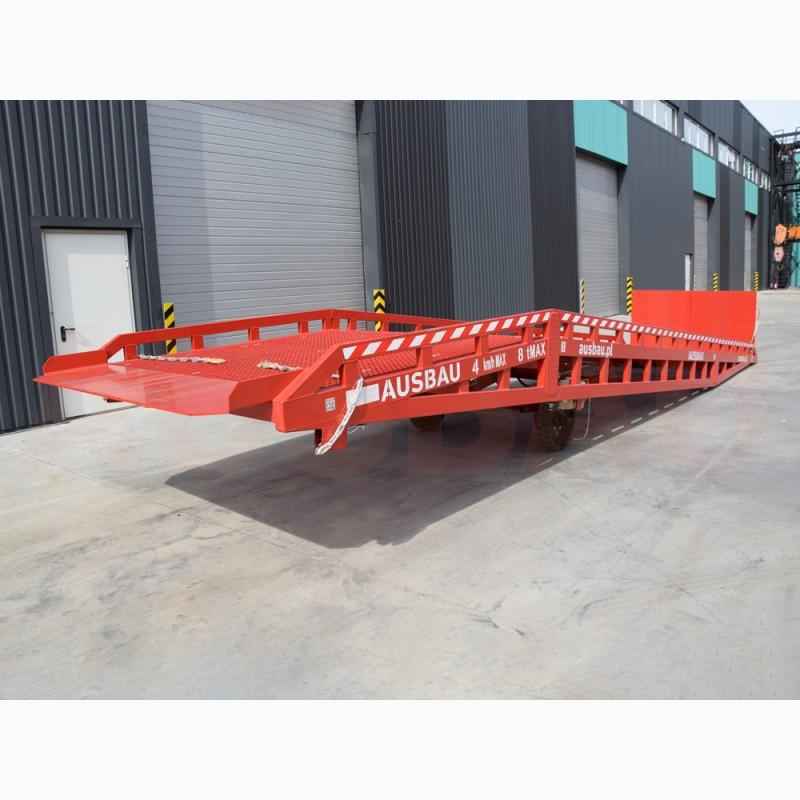

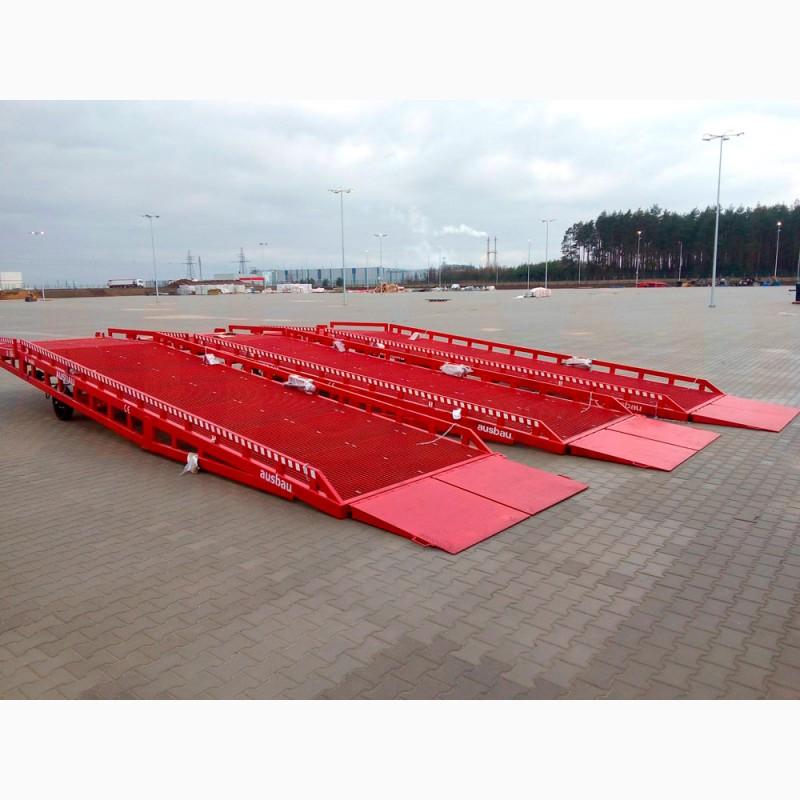

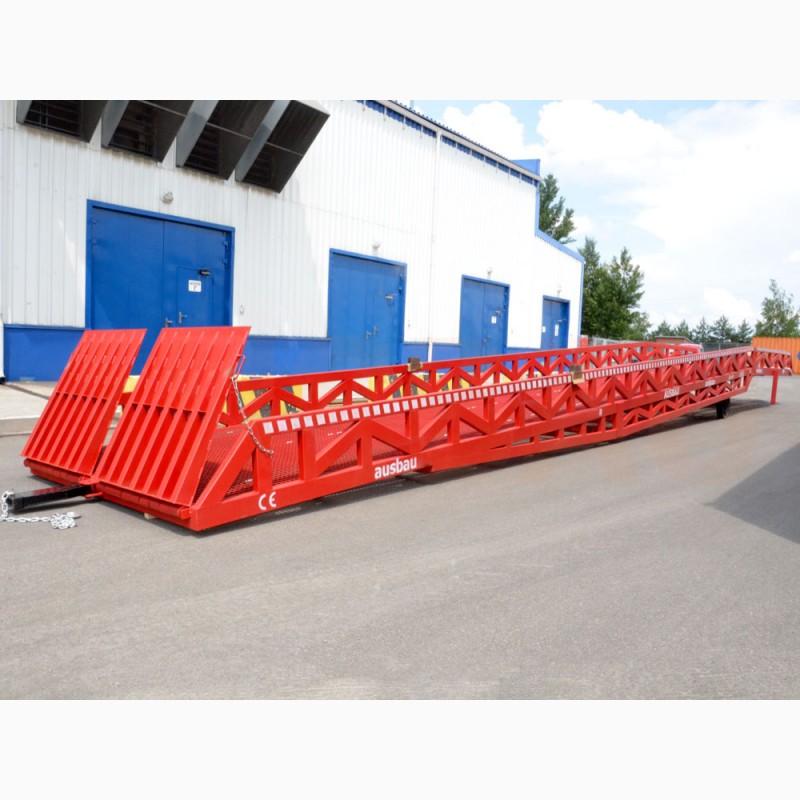

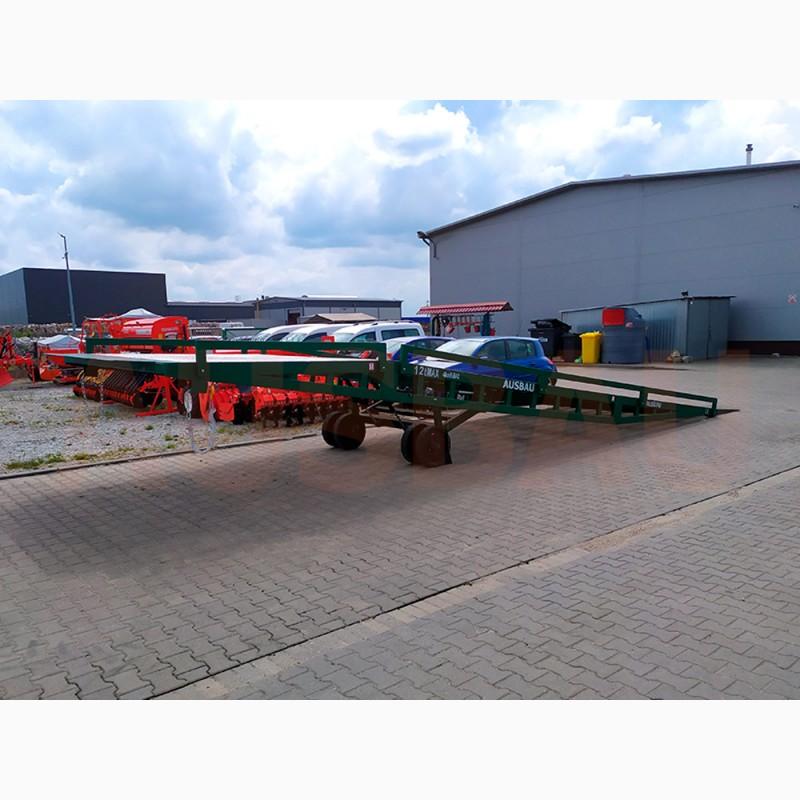

The presented photos are purely illustrative. For detailed sales information, please contact the manufacturer.
