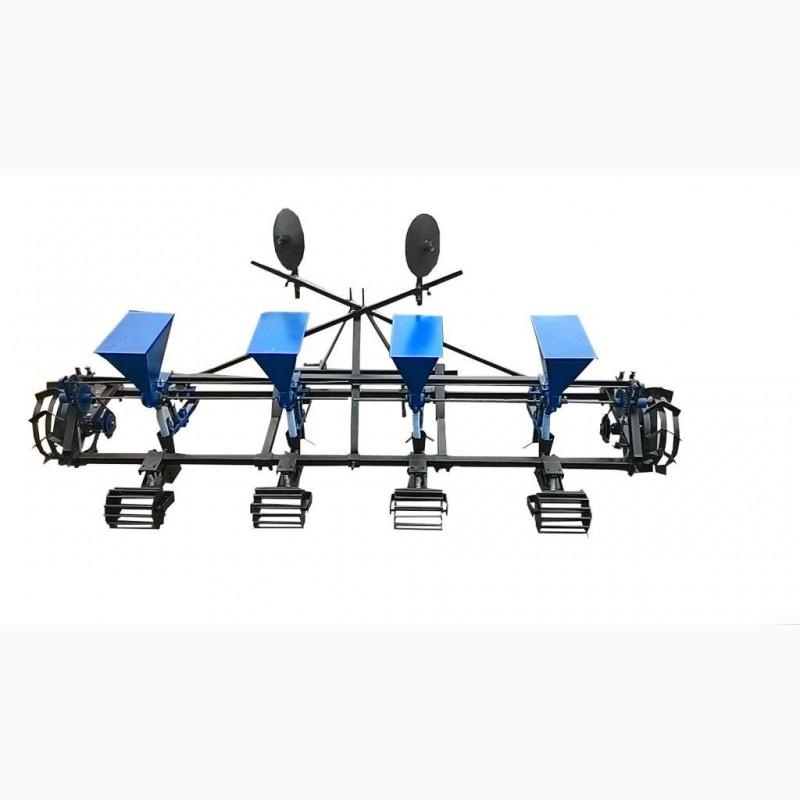

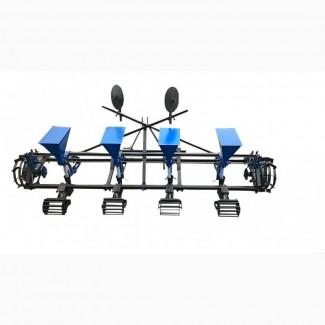

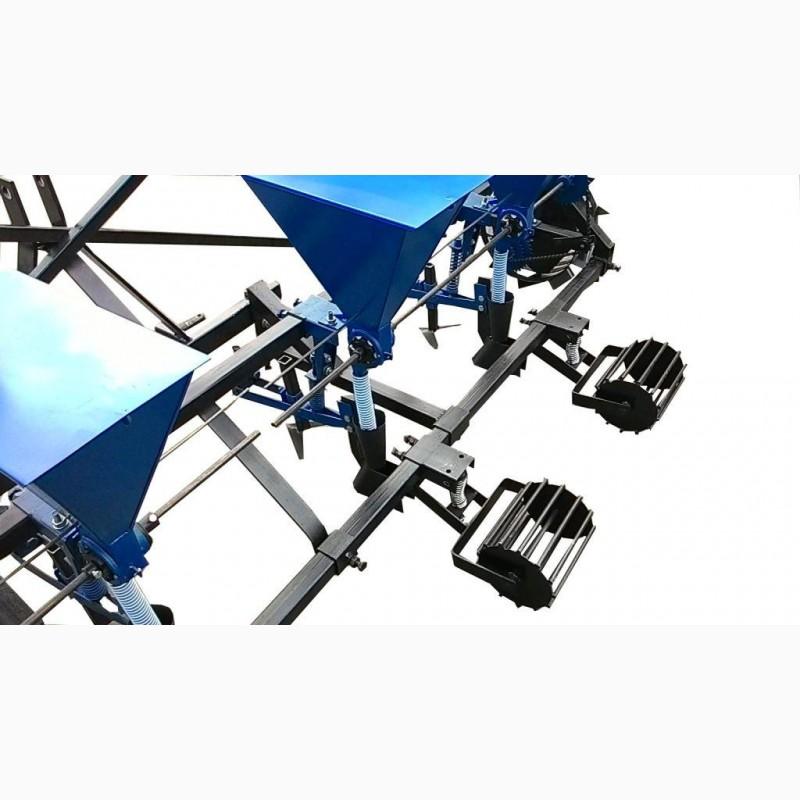

4-row planter for minitractor (vegetable), СИ3, Kyiv

Type of dosing device brush-cellular
The type of opener is naralnik (keel-shaped)
The type of wrapper is rotary.
The type of mechanism for transferring rotation to the shaft of the dosing drums is chain (there is a clutch for disconnecting the drive)
The step of sowing in a row depends on the installed drum and the gear ratio on the dosing device)
Seed wrapping depth, cm 1-8
Row width, cm 25-70(//tractor-service.com)
Hopper capacity, l 7.5
Working speed km/h 4-6
Productivity ha/h 0.8-1.6
Track width, mm 2800
Diameterwheels, mm 430
Overall dimensions, mm 3000x950x850
Width of capture, cm 166
Weight, kg 153.6
