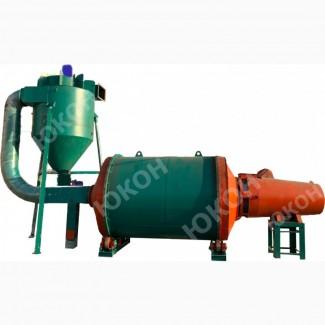

Drying complex AVM-0.65
Products intended for drying enter the rotating three-pass drying drum through the drying pre-furnace. The drum of the dryer is equipped with heat-resistant steel. This leads to an increase in the surface area and, consequently, to an increase in efficiency and durability.

The product is slowly transported through the drying drum, through the inner part of the drying drum and the flow of hot gases, which is produced by a heat generator (at least 1 MW). Hot gases or a drying agent continuously flow around the product during drying, heating it and removing moisture. After the product has passed through the drying drum, the cyclone separates it from the cooled and moist drying gases. At the end of the process, the dried product is discharged from the dryer through a hermetic sluice dispenser. The second part is released in the form of exhaust gases.

The model of the AVM-0.65 drying complex was developed quite a long time ago and proved to be very successful even in the USSR. The AVM-0.65 drying unit is an economically beneficial solution for drying crushed raw materials with the best price-quality ratio.

After our overhaul, our biomass dryers are rated for 8,400 hours per hour.

What does the drying complex on the basis of AVM-0.65 consist of:

Name

Quantity
1 Mixing device, remelting 1 pc.
2 Drum 1 pc.
3 Drum subframe 2 pcs.
4 Drive roller 2 pcs.
5 Roller thrust 2 pcs.
6 Drum drive station 1 pc.
7 Connecting bandage front 1 set.
8 Connecting bandage rear 1 set.
9 Set of fasteners 1 set.(//tractor-service.com)
Unloading device:

1 set.

10 TSO cyclone with supports
11 Pneumatic transport pipes, complete.
12 Fan
13 Smoke pipe
14 Sluice gate with el. by reason
Types of raw materials that can be dried on the drying complex:
sawdust, wood chips of different fractions;
milling peat;
hay andstraw, grass, alfalfa;
zhom;
bird droppings;
alcohol bard;
other types of raw materials that have sufficient fluidity and suitable bulk density.
Typical specification of drum drying AVM-0.65:
0.6-1.5 tons per time for dry product (depends on the heat generator or burner).
The initial humidity is not more than 65%.
The final humidity is 6-15%.
The drying complex is used in the industry for drying: husks, bards, bird droppings, straw, alfalfa, chips, sawdust, and other raw materials for the production of pellets and briquettes.

If you have any questions about drum drying AVM 0.65 and about the possibility of drying the second type of raw material, call our consultant on the phone number posted on the site.
