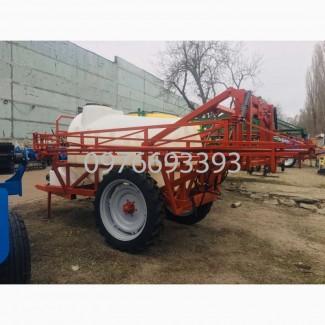

Trailed sprayer OP-2000 (18m), Dnipropetrovsk region.

Trailed sprayers of the OP line are simple in design and at the same time reliable, intended for medium-sized farming operations with a medium-grip boom. They are used for processing field crops and surface fertilization with solutions of inorganic liquid fertilizers, such as pesticides, herbicides, fungicides, insecticides.
The trailed sprayer OP-2000-18 is made in the form of a single-axle semi-trailer and is aggregated with tractors of class 1.4 and 2. It consists of a chassis, a plastic tank with a mechanical (injector) agitator cardan transmission, a 3-piston membranepump, a pressure regulator, a 5-section distributor. Equipped with slotted or injector sprayers. The boom is controlled (assembly, unfolding - manually), and lifting is carried out from the tractor cabin with the help of hydraulics. The bar is stabilized parallel to the soil surface and painted with powder paint at a temperature protected from corrosion.

Technical characteristics:

Bar width: 18 m;
Capacity: 2000 l;
Type: trailed;
Rod, hydraulics: lifting-lowering;
Working height of the bar: 700-1700 mm;
Sprayer clearance: 500 mm;
Track width: 1350-1750 mm;
Nozzles: 1-position, flat jet; 160
Количество форсунок: 36 шт.;
Distance between nozzles: 500 mm;(//tractor-service.com)
Pump: diaphragm piston, 140 l / min, UDOR, Italy;
Complete set: cardan shaft;
Unit weight: 960 kg.
Dimensions in transport position:
total height: 2.40 m;
height to the top of the barrel: 1.80 m;
width: 1.70 m;
length: 3.45 m.
Trailer-type sprayers are equipped withwheels large-diameter 9.5R32 ф-268, which ensures high-speed operation with a clearance of 500 mm:
track width in OP-2000 can be infinitely adjusted from 1400 mm to 1800 mm;
mechanical bar 18 m wide with a pendulum stabilization mechanism and hydraulic lifting;
simple and strong rods made from closed profiles;
equipment washing system, two tanks: the main one with hydraulic mixers for washing hands;
effective piston-membranous pump firm UDOR with high productivity. Warranty - 1 hour;
filter (sieve) in the filler neck of the sprayer tank.
