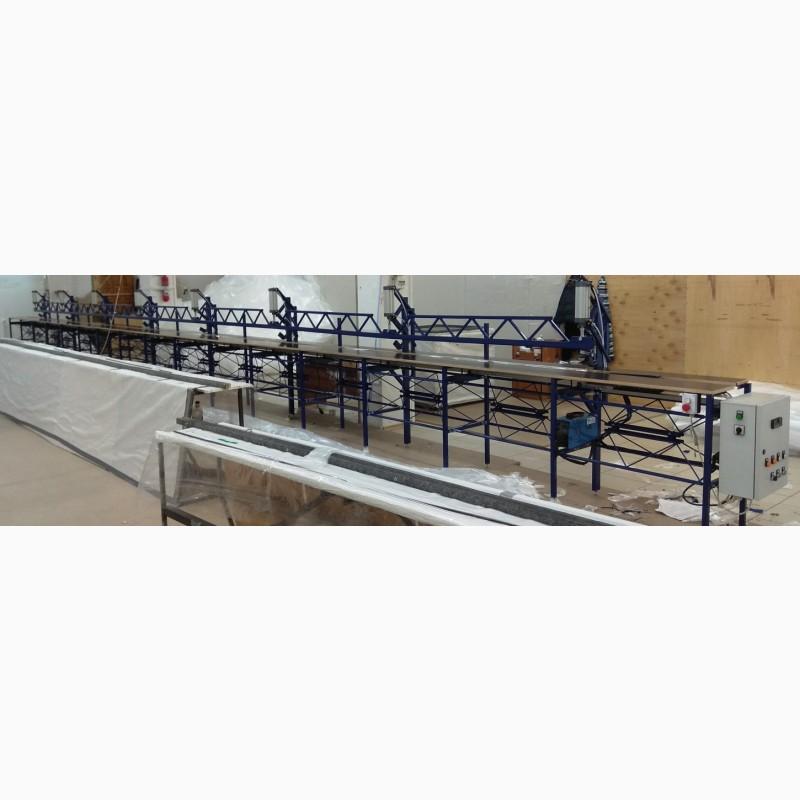

Length film sealer (any long seam), Kyiv

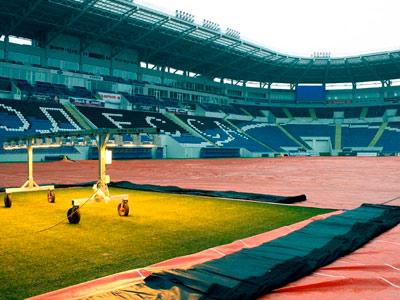

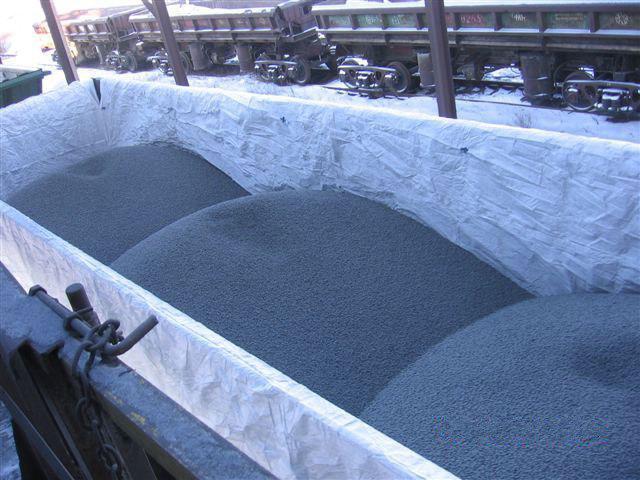

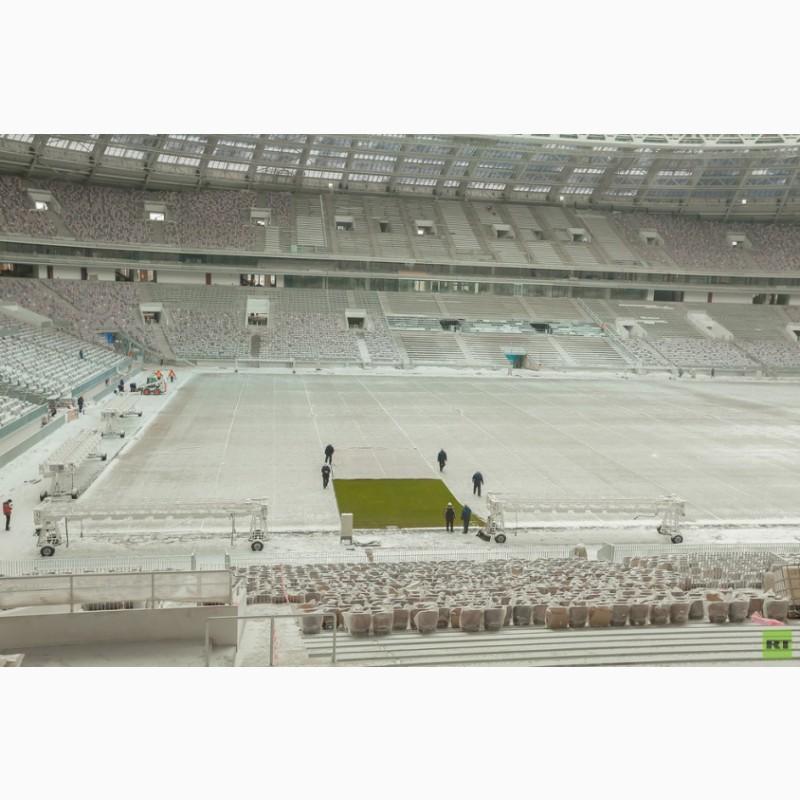

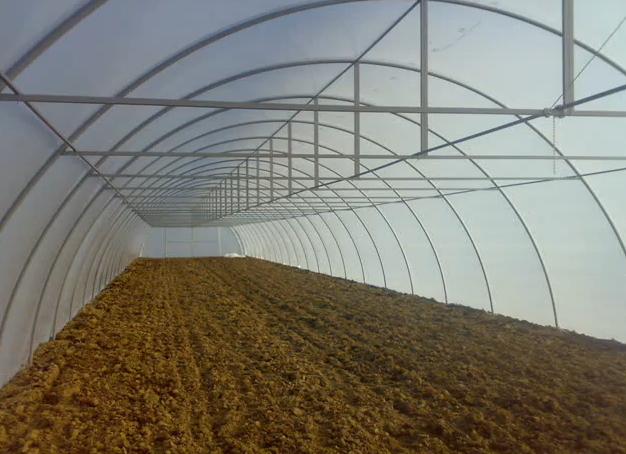

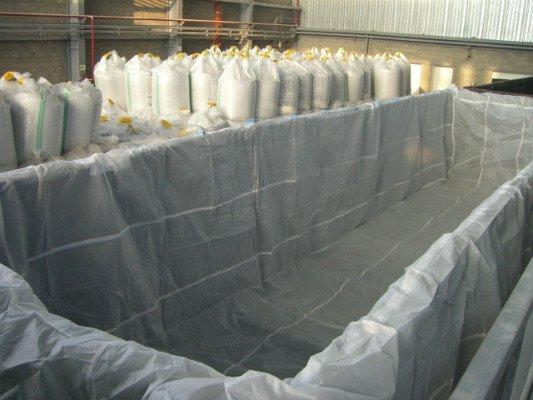

The line is intended for sealing film on long products for theirpackaging for protection from the influence of the environment. With this equipment, it is possible to make liners from polymer materials for wagons, coverings for football fields, coverings forgreenhouses, coverings for swimming pools, and other dimensional products from polymer materials.

We will make any seam length, according to your request!

Video link: https://www.youtube.com/watch?v=l6L9JEP-17w

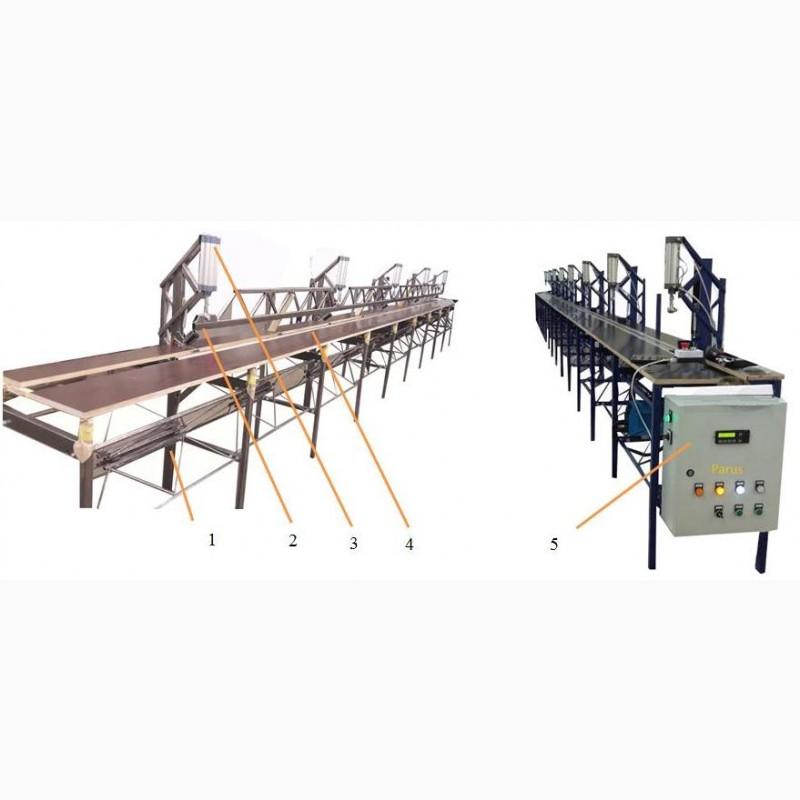

Composition of the line:

1- Frame.

2- Beam of the welding module.

3- Pneumatic cylinders.

4- Tabletop.

5- Control unit (not shown in the photo).

Principle of operation:

The installation is a completely collapsible structure. The operating mode is semi-automatic. The welding parameters of the material are set by the operator on the control unit (5). Polymer materials are placed on the tabletop (4) manually and fixed with clamps. The operator presses the start button, the welding traverse lowers, the welding process of the material is carried out. After the time of welding and cooling of the seam, the upper traverse automatically rises, the material is extracted. The process is repeated.

Technical characteristics*:
(//tractor-service.com)
Long seam - up to 30 m.p.

The method of quarreling is impulse.

The width of the seam is 3 - 10 mm (flat seam)

The thickness of the film is up to 500 μm.

The drive is pneumatic

Execution - floor.

The number of service personnel is 1-2 people.

Dimensions of the line - 630x1500x16000 mm (w*h*d, with a seam length of 13500 mm)

The installed capacity is 0.3 kW + 5.6 kW at the moment of the quarrel.

Productivity - seam welding 20-40 sec.

Air consumption - 65 l/cycle

Connection - 220V, 50Hz, 6 atm.

Warranty 12 months.
