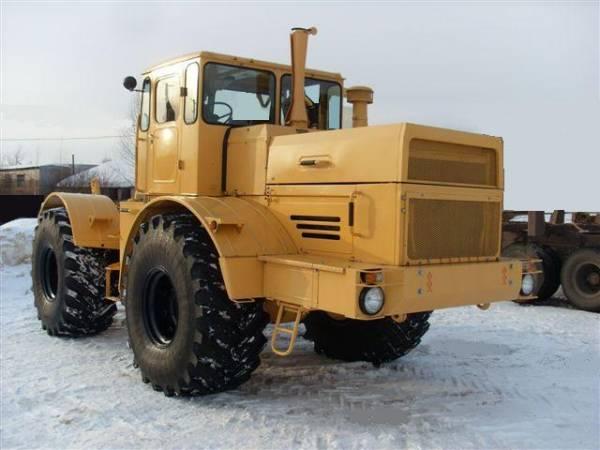

KIROVETS K-700 tractor radiator; K-701; K-701A, Kyiv

Tractor radiator KIROVETS K-700;K-701;K-701А

Radiator for water cooling of the engine of the wheeled tractor "Kyrovets" Model - K-701K, Engine - YAMZ-238ND5 (300kW)

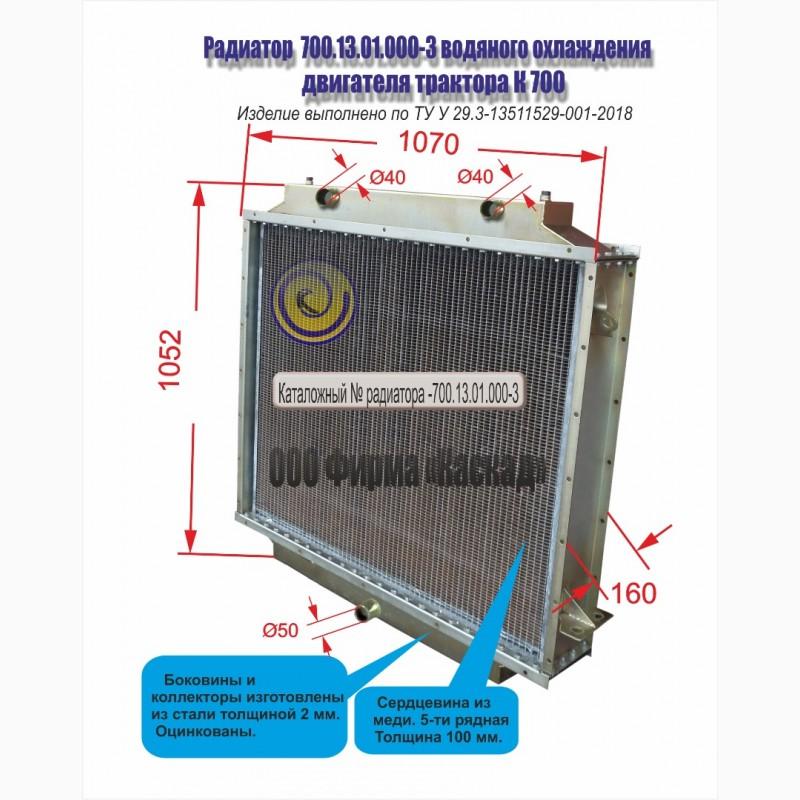

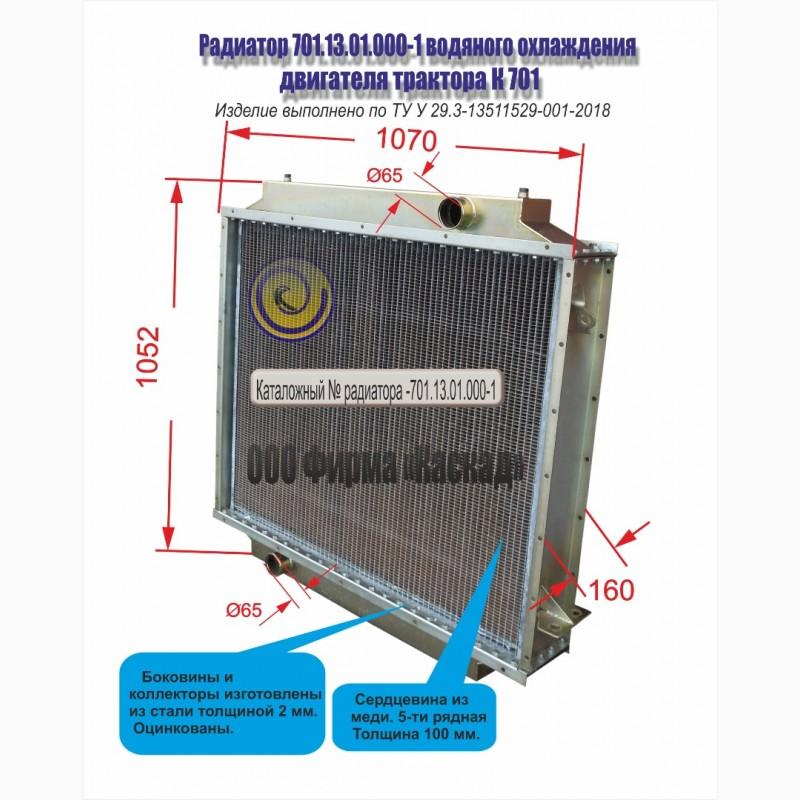

Radiator catalog number -700.13.01.000-3,701.13.01.000-1

The water cooling radiator manufactured by Kaskad LLC is an analogue of radiator 700.13.01.000-3,701.13.01.000-1, widely used in cars and special equipment.

Our product uses: copper-brass core and steel collectors.

The technical parameters are developed according to TU U 29.3-13511529-001-2018 and are listed in the table.

Due to the introduction of innovative technologies, it was possible to achieve an acceptable price, while maintaining the high quality of production.

The buyer chooses the way to order a radiator himself.

1. Specifications for the manufacture of a radiator.

2. The original sample (usually a used radiator)

3. Detailed, approved by the Customer, design documentation (KD) or drawing of the radiator.

"Cascade" LLC is open for cooperation. Dialog with customers is of great importance in our work. The result of the dialogue is an improvement in the quality of the output.
(//tractor-service.com)
We suggest you fill out the product order form.

Tractor radiator KIROVETS K-700;K-701;K-701A

Dimensions:

A (collector width), mm

B (core width), mm

C (core thickness), mm

Dв (diameter of the upper pipe (ov), mm

Dn (diameter of the lower pipe (ov)), mm

E (height with collectors), mm

H (core height), mm

F (collector thickness), mm

Firma "Cascade" LLC guarantees compliance with the dimensions, mounting holes, pipes and other elements of the KIROVETS K-701;K-701А tractor radiator
The price is indicative. It depends on the exchange rate of the national currency and other factors.
