Bearing unit LEFG 207 TDT FKL, 1013877 Unia, Aw/0101 Unia, LE 207 TDT FKL, Dnipropetrovsk region.

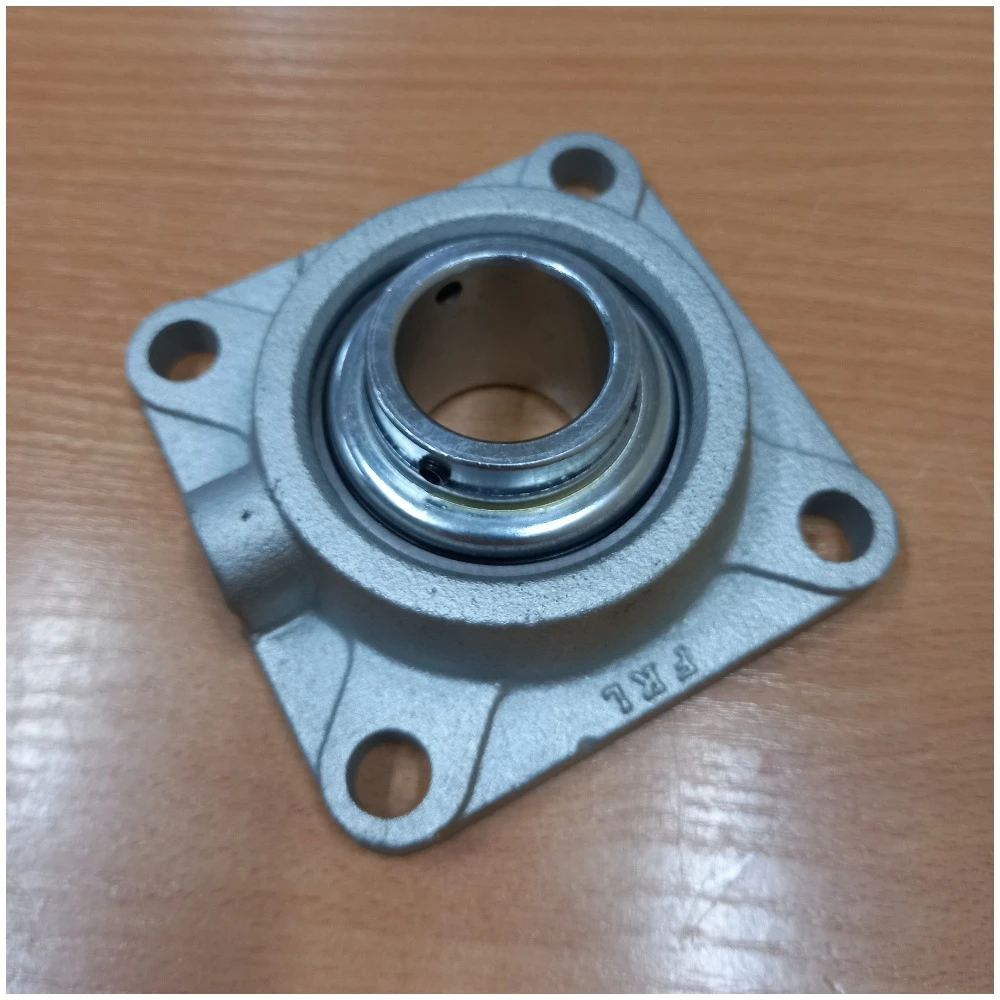

We offer ARMOR LEFG 207 bearing unit TDT FKL (Serbia).
Field of application — tillage machinery, rollingcats.

Bearing ID - 35, Bearing Width - 44.4, Housing Width - 34, Overall Length - 118, Hole Center Distance - 92, Weight - 1.45, Housing Edge Width - 13, Bore Diameter - 14, Dynamic Load - 25.5, Static Load - 15.3. Case type — FG. Sealing type – 6-edge.

Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects againstdust ingress into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing is the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the outer ring locking pin prevents the bearing from rotating.(//tractor-service.com)

OEM: 1013877 Unia, Aw/0101 Unia.
Analogues: FYJ 35 TF SKF, UCF 207 NSK.

LEFG 207 TDT FKL bearing units are equipped with LE 207 TDT FKL bearings.

"Krasylivagromash" LLC is a business partner of "TVK "FKL Ukraine", which completes its own agricultural machinery with LEFG 207 TDT FKL bearing units.
