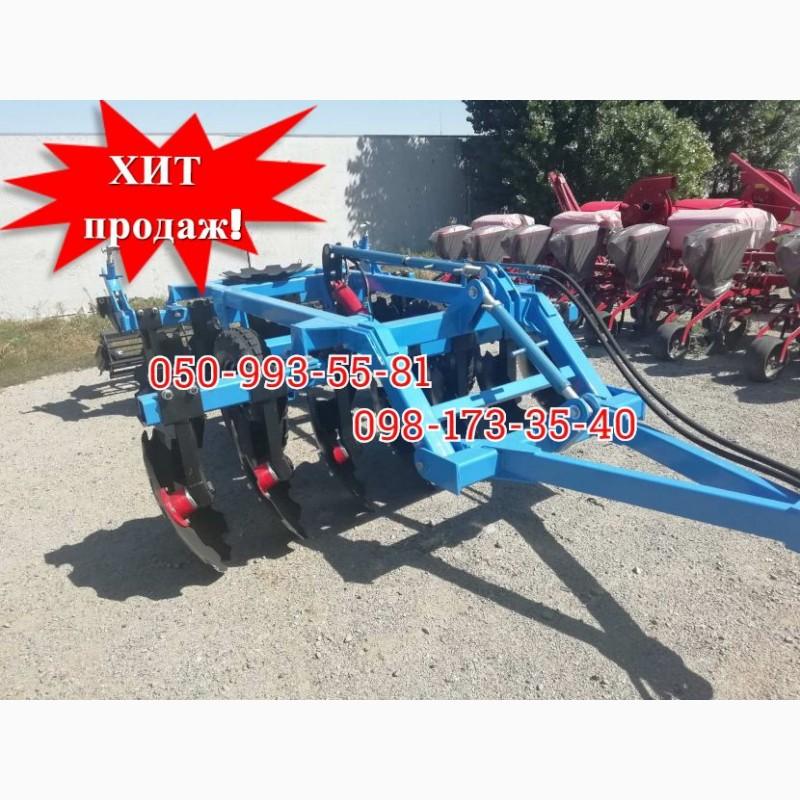

BDF(P)-2, 1, BDF(P)-2.4 disc mounted (trailer) harrow. GOSkompensatsiya 25-40%, Kharkiv region.

BDF(P)-2,1, BDF(P)-2.4mounted disk harrow (trailed) harrow is intended for continuous and pre-sowing cultivation of soils of various composition for industrial, grain and fodder crops with grinding and embedding plant residues in the soil (refreshing grassy meadows) in various agrotechnical schemes The adjustable processing depth is approximately 8 to 20 cm.

Unlike similar harrows of other manufacturers, the design of this harrow uses camomile discs (quick-release) (cut-out spherical) with a diameter of 650 mm, a thickness of 6 mm, made of 65G steel.
The harrow is produced bothmounted BDF (working width from 1.8 to 4.2 meters) and trailed BDF (working width from 2.4 to 10 meters). The harrow is equipped with plate cylindrical rollers with a diameter of 400 mm. Disks are installed on hubs that rotate around an axis on roller bearing units at an angle of attack of 21 degrees and a vertical inclination of 21 degrees.
The metal anther, which is installed on the axis during assembly, covers the hub, forming a protective structure, which is supplemented by a sleeve with an oil seal inside and an anther outside. The unit is very well sealed from the outside environment due to this design.

Unmaintained working case. Complete with plate cylindrical rollers with a diameter of 400 mm
Disk working body, which is a cut-out spherical disk (chamois) installed on the hub, with a diameter of 650 mm. and 6 mm thick, with internal sharpening along the entire contour. Thanks to the special geometry of the tubular stand, it is installed at an optimal angle of attack to the line of traction and an angle to the vertical, which ensures high-quality crushing, crushing and turnover of the cut layer.
The harrow is produced as a mounted BDF (working width from 1.8 to 3.1 meters) and a trailed BDF (working width from 2.4 to 7.0 meters). In both cases, the harrow is equipped with plate-type cylindrical rollers with a diameter of O 400, and harrows with a hydraulic lifting mechanism of the wings (grip width of 5.5 meters and higher) are equipped with a set of rods that allow to install a set of two rollers with a diameter of O 400 and O 255 ​​mm. or from a three-row spring-toothed harrow and roller O255 mm.
The harrow contains two rows of disks, each of which is located on an individual rack, which is attached to the bar with two L-shaped brackets (diameter 20 mm). This design excludes clogging of the interdisk space. The harrow can be used in all soil and climatic zones where the soil moisture does not exceed 27 percent and the soil hardness does not exceed 3.5 MPa, and it is also not recommended to use this harrow in areas with significant stony inclusions. Due to the use of individual racks in the design, the front harrow can be used at high working speeds - up to 14 km/h.
Disks are installed on hubs that rotate around an axis on roller bearing units at an angle of attack of 21 degrees and a vertical inclination of 21 degrees.
The metal anther, which is installed on the axis during assembly, covers the hub, forming a protective structure, which is supplemented by a sleeve with an oil seal inside and an anther outside. The unit is very well sealed from the outside environment due to this design.
The fixing and adjusting nut of the hub bearing is closed by a flange with a cap, which performs two functions: sealing the hub, securing the working body (BDF disc) to the hub.
The scraper is attached with two bolts with square headrests to a bracket with two grooves, which, in turn, is welded to the rack and when the harrow is working, it cleans the working body (BDF camomile disc) from sticking soil, winding plants, clogging harvest residues, and also directs the flow of soil in the direction of the harrow and turns it.

Technical characteristics of disc harrows:
Name BDFP-2,4 BDFP-2,8 BDFP-3,1 BDFP-3,5 BDFP-3,8 BDFP-4,2(//tractor-service.com)
Type Trailed
Working speed 8-12 km/h
The depth of soil treatment is 8-18 cm.
Height in transport position 1400 mm.
Height in working position 1100 mm.
Length 4940 mm.
Width 2.4 m. 2.8 m. 3.1 m. 3.5 m. 3.8 m. 4.2 m.
Productivity 1.9 Ha/h. 2.2 Ha/h. 2.5 ha/h. 2.8 Ha/h. 3.1 Ha/h. 3.4 Ha/h.
The power of the tractor is 80 hp. 100 HP 130 L.S. 160 HP 180 HP 200 HP
Transport speed, no more than 20 km/h.
Number of working bodies 14 racks 16 racks 18 racks 20 racks 22 racks 24 racks
Number of rinks 1 rink 2 rink
Ground clearance, not less than 300 mm,
Transfer to the transport and working position by the hydraulic wheeled transport mechanism of the disc harrow, connected to the hydraulic system of the tractor.
Weight 1400 kg. 1630 kg. 1850 kg. 2000 kg. 2250 kg. 2400 kg.
The BDFP Trailed Harrow is produced with a working width of 2.4 to 4.2 meters. Complete with plate cylindrical rollers with a diameter of 400 mm.

BDF(P) harrow, Disc harrow, Disc harrow available. Delivery across Ukraine. State compensation 25-40%. Any form of payment
