Wharfs, pontoons, piers, watercraft, floats for mariculture, Dnipropetrovsk region.

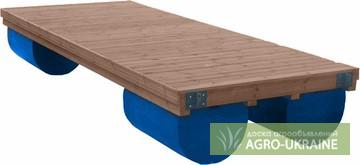

We offer buoyancy modules complete with a durable body-supporting frame galvanized profile (1.2; 1.5; 2 mm). Any coating can be used on this structure (terrace board, waterproof plywood, OSB, etc.)

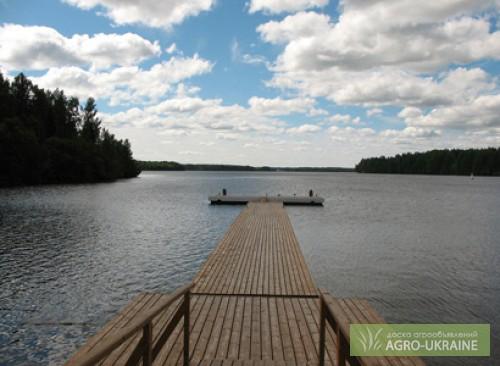

Fields of application: Berths, pontoons, piers, bases for dredgers and other floating structures.

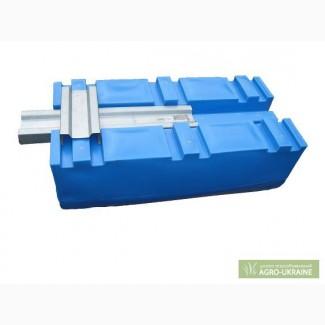

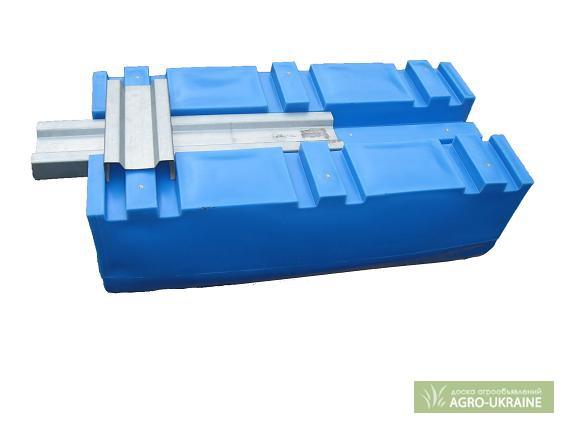

2 modifications of the module are presented: hollow and filled with expanded polystyrene.
Module size: Length-1200mm. Height-550 mm. (580 mm. with a profile). Width-590 mm. The weight of the module is 18 kg. (24 kg. - filled) Nominal load on the module 180-200 kg., maximum - 225 kg.
The configuration of the pontoon structure can be any.(//tractor-service.com)
Load capacity from 65 to 400 kg. per 1m².
Profile weight: 1.2mm-3kg. 1.5 mm.-3.76 kg. 2mm.-5kg.
The cost of 1 m² (construction without flooring and assembly work) is from 680 gr. The cost of assembling a pontoon structure is 10-25% of the cost of construction materials.
Completion of the pontoon structure: Buoyancy modules with molded M10 galvanized steel screw fasteners; a set of profile beams of the required size with holes for fastening; hardware kit.
Assembling a pontoon structure is simple, convenient and does not require special training. For self-assembly, you need a set of socket wrenches. A drill with 3-6mm drill bits is used to fasten the flooring. and a screwdriver with bits (metals for fixing the flooring and the flooring itself are supplied separately).
