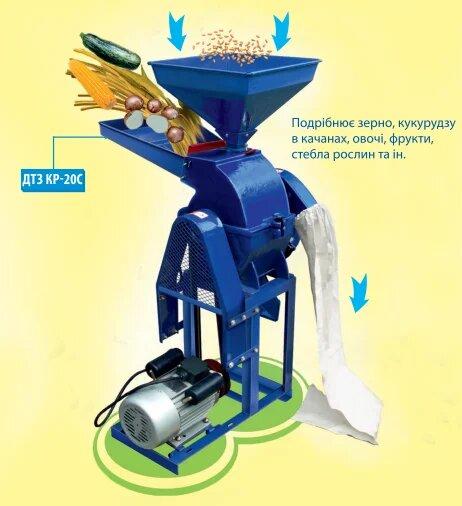

Forage cutter + grain crusher DTZ KR-20C (stalks + grain + corn cobs + vegetables + fruits), Kyiv

Forage grinder DTZ KR-20C (grain + corn cobs + vegetables + fruits + stalks)

It is intended for grinding grains, corn in the cobs, vegetables, fruits, dry grass for the preparation of fodder.

The set includes 5 sieves (covered with an anti-corrosion coating), which allows the material to be ground into 5 fractions: 1mm, 1.5mm, 2mm, 4mm, 6mm.

The working body is made according to the classic scheme: 4 rows of 9 heat-hardened hammers with a two-sided saw blade sharpening, which allows to increase the productivity of thegrain crushers DTZ and wear resistance of the hammers.

The DTZ KR-20S feed grinder is probably the most versatile and productive unit in the line, able to satisfy the requirements of the most demanding consumers. This model combines the functional capabilities of a grain crusher, vegetable cutter,forage cutter: it is designed for the processing of grain crops, fodder, early corn, root crops, fruits and vegetables.

The DTZ KR-20S electric fodder grinder is perfect for farms and private households, commercial activities, provides long-term operation and readiness for intensive loads. The unit is characterized by simplicity and ease of use, and is distinguished by its ergonomic design.

Features

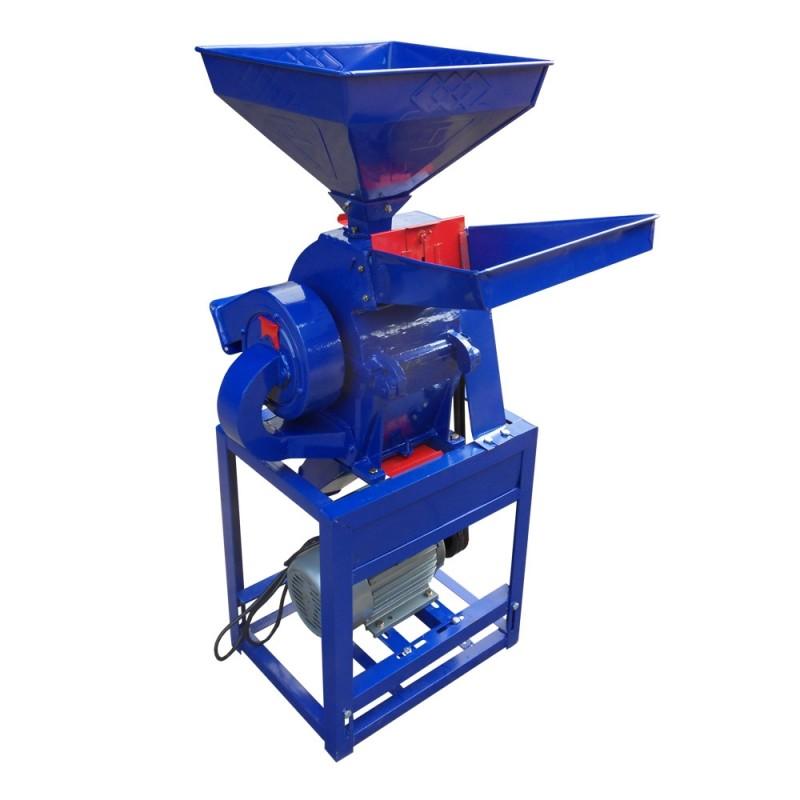

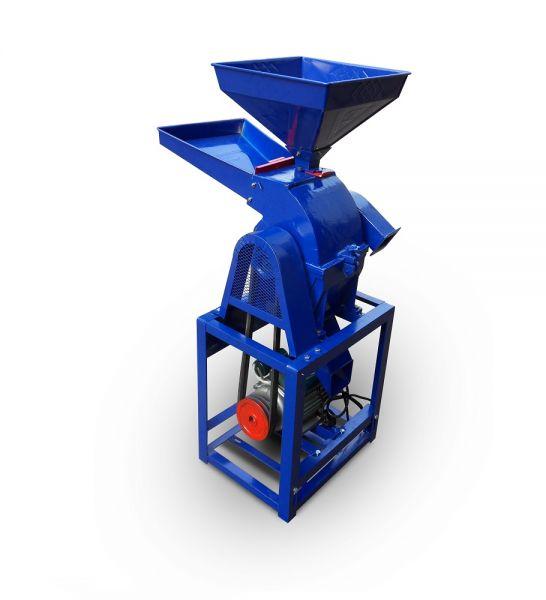

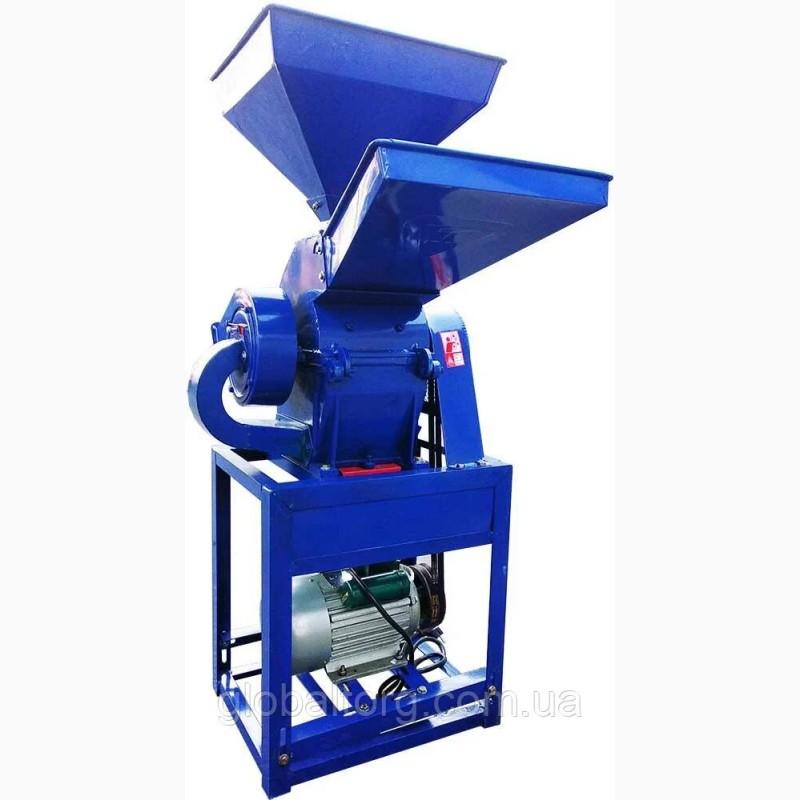

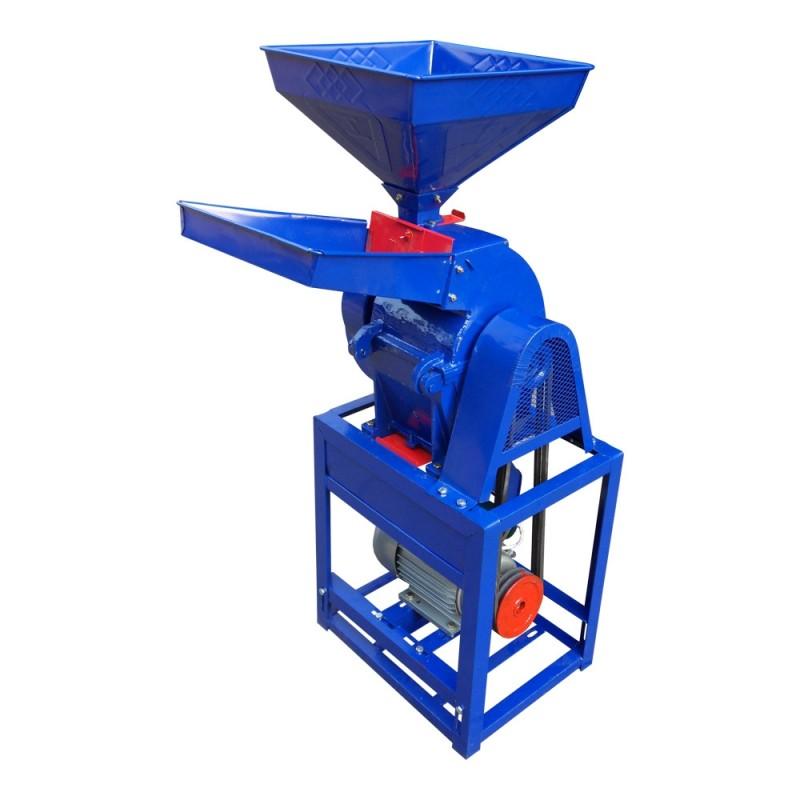

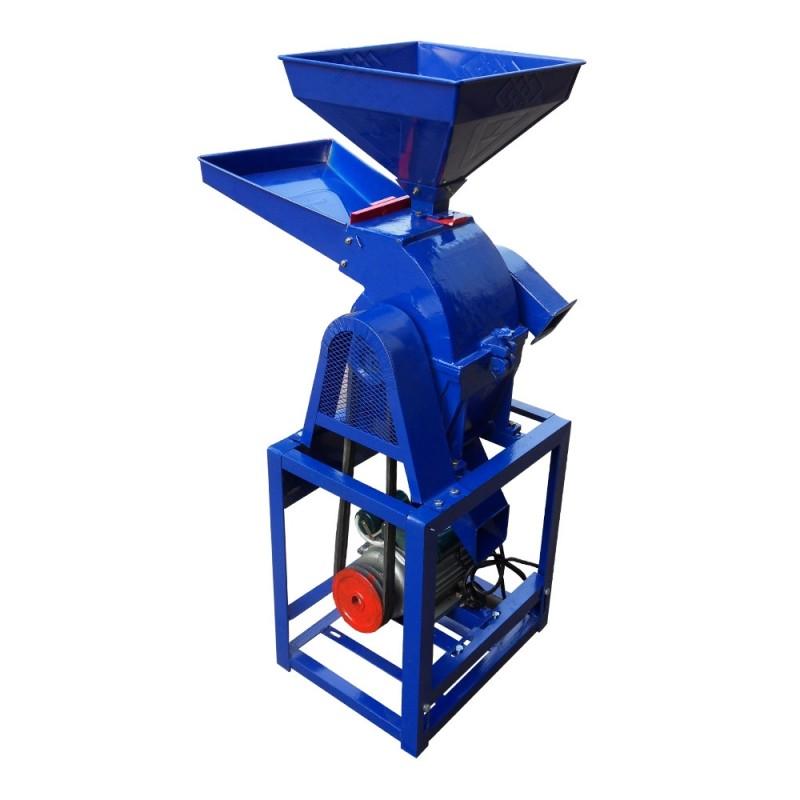

The design of the feed grinder provides a fairly high metal frame on which the grinding block is placed. The fodder grinder, like a machine, is completely ready to start working - all you need is a connection to the power supply.
The efficiency of the DTZ KR-20S forage cutter is provided by a powerful 3 kW asynchronous electric motor powered by a single-phase household network. The automatic thermal relay ensures the safety of the working process by automatically shutting off the motor in case of overload.
Power transmission is carried out by means of a belt.

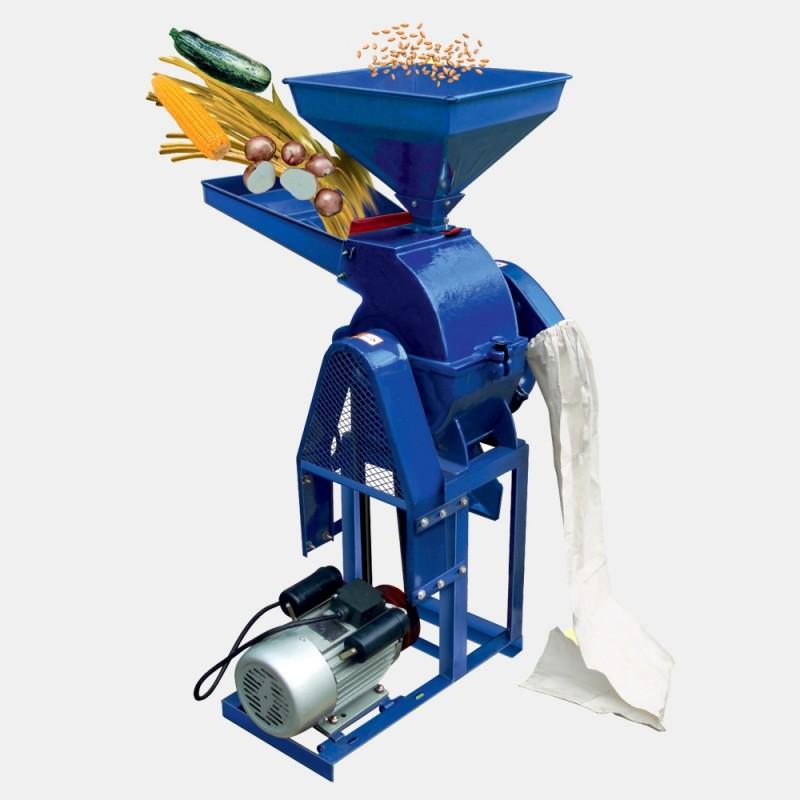

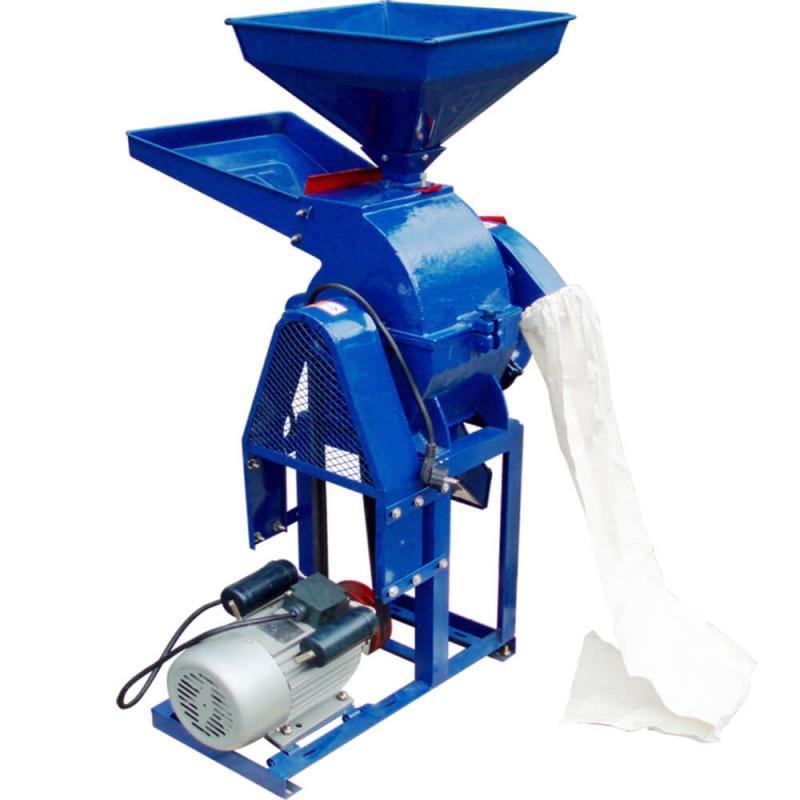

The supply of grains to the grinding mechanism takes place through a hopper-accumulator, all other raw materials are sent through a wide side chute. The unit is designed so that the feeding process is as safe as possible for the operator.
The productivity of the unit depends on the type of initial products and is:

up to 600 kg/hour - for grain;
260 kg/hour – for root crops;
210 and 160 kg/hour – for starter corn and stalk fodder, respectively.
Additionally, a bag for collecting processed crops is included in the set.

The DTZ KR-20S feed grinder is a profitable, quick-payback investment that will help you organize and optimize the process of preparing feed and ingredients, taking care of animal health and significantly saving your time. Warranty for DTZ KR-20S feed grinder - 12 months.

Overall dimensions of the shredder :
As a whole: (LxWxH), mm: 900 x 500 x 1050;

In the package: (LxWxH), mm: 470 x 530 x 850;

Main attributes

Manufacturer of DTZ

Country of manufacture Ukraine(//tractor-service.com)

Type Feed chopper

Processing raw materials Cereals, Roots, Corn cobs, Vegetables, Fodder, Fruits, Hay, Straw

Type of drive Electric motor (from mains)

Engine power 3.0 (kW)

Nominal voltage 220

Current frequency 50 (Hz)

Number of engine revolutions 2800.0 (rpm)

Productivity, kg/hour Grain 600 kg/hour Roots 260.0 (kg/hour) Corn cobs 210 kg/hour Stalk fodder 160 kg/hour Vegetables 360.0 (kg/hour) Fruits 260.0 (kg/hour) Dimensions Width 530.0 (mm) Length 900 mm Height 1050.0 (mm) Weight 86.5 (kg)

Productivity, kg/h grain up to 600
corn cobs 210
vegetables, fruits 260
plant stems 160
Engine
Type electric asynchronous single-phase with starting capacitor
Model DAK4ААУТ90L2
Voltage, V 220
Current strength, A 15.8
Current frequency, Hz 50
Power, kW 3
Frequency of revolutions, rpm 2800
Insulation class type F
Weight, kg 25
Working body (grinding drum)
Model DTZ KR-20S
Gear ratio of the belt transmission, n 1.6
Rotational frequency of the grinding drum, rpm 4480
Total weight with engine, kg 86.5
Overall dimensions in assembled form, mm 900x500x1050
Package dimensions LxWxH, mm 470x530x850
