Compressor Case, New Holland, Massey Ferguson 152mm, A2 (1999755C2, 1990760C1, 4478, 4609), Kharkiv region.

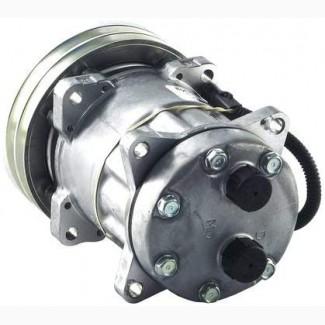

Case air conditioner compressor, New Holland 7H15 2GV 152 mm. 4478, 4609 (1999755C2, 1990760C1, 86983967, 86993462)

Characteristics:
Model: 4478, 4609, 4609E, 5409, 9571, 9588; OEM: 1990755C3, 86993462, 1990755-C3, 1999755-C2, 1999755-C3;
Family of compressors: SD7H15;
Attachment type: Ear 8 Long;
Ear ID: 83.3;
Refrigerant: R134A;
Direction of rotation: in both directions;
Factory oil level:oil 285 cubic meters.
Oil type: Pag100;
Cylinder head: md;
Port angle: H;
Synchronization port: rear;
Head port style: 1X14;(//tractor-service.com)
Pulley size: 152;
Number of streams: A2;
Measuring line to the first groove: 23.80;
Measuring line to the middle groove: 0.00;
Measuring line to the final groove: 39.55;
Coil voltage: 12;
Connector: 1-pin Female Packard # 12010996;
Diode protection: no;
Clutch assembly: 4609-993.

Applications:
Case IH 1640 1660 2188 7240 2166 2388 7130 1680 7230 7120 2366.
Ford-New Holland / Case / IH - Sanden Compressor.
case new holland compressors case / ih 2144 any compressors case / ih 2166 any compressors case / ih 2188 compressors case / ih 580 any compressors case / ih 580k any compressors case / ih 590 any compressors case / ih l any compressors case / ih m any compressors compressors - sanden models 4251-4500 4478 compressors - sanden models 4501-4750 4609 compressors - sanden models 9501-9750 9588 kenworth any any compressors peterbilt compressors

cross references: 1101177, 5300, abp n83 304992, 509-560, 1990755-c3, 199755-c3, 86993462, 1977959-c1, 1999755-c2, 1999755c3, 96993462, 967200, 300-4547, 330-1624, 967200, 8699342 , 78551, 75r84112, rd-5-10259-0p, 4478, 4609, 9571, 03-3730, 50-5360, 20-19571, abpn83304992, 124607, ptac5300, 1999755c3, 1521910, 0215, 0293, 86993462, 204609, abpn83 , 10348931, 47050714, 96993462, 638551, 3301624, 77551, 78551, 2041698, 5511638, 6511638, 7511638, 1977958c1, 1999755c2, 967200, tem967200, 1999755c3, 8699342, 75998, 1441, 4046060, 2004, 6086060, 2004 , rd5102590, rd5102590ds, rd5102590p, co2013ca, co2218ca, c2234, c2495, 033730, 3004547, 1999755-c3
