Air conditioner for tractor Mtz, Htz, Kirovets, Case, John Deere, Klaas,
harvester , truck, special equipment ()
It is used for agricultural, road, construction machinery, minibuses, trucks.
Scheme of arrangement of nodes and aggregates:

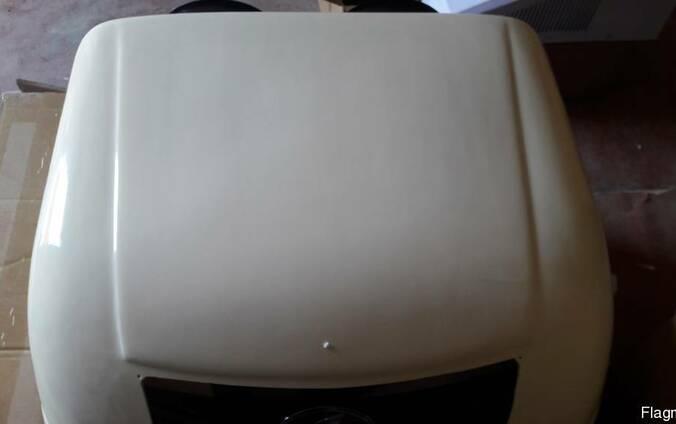

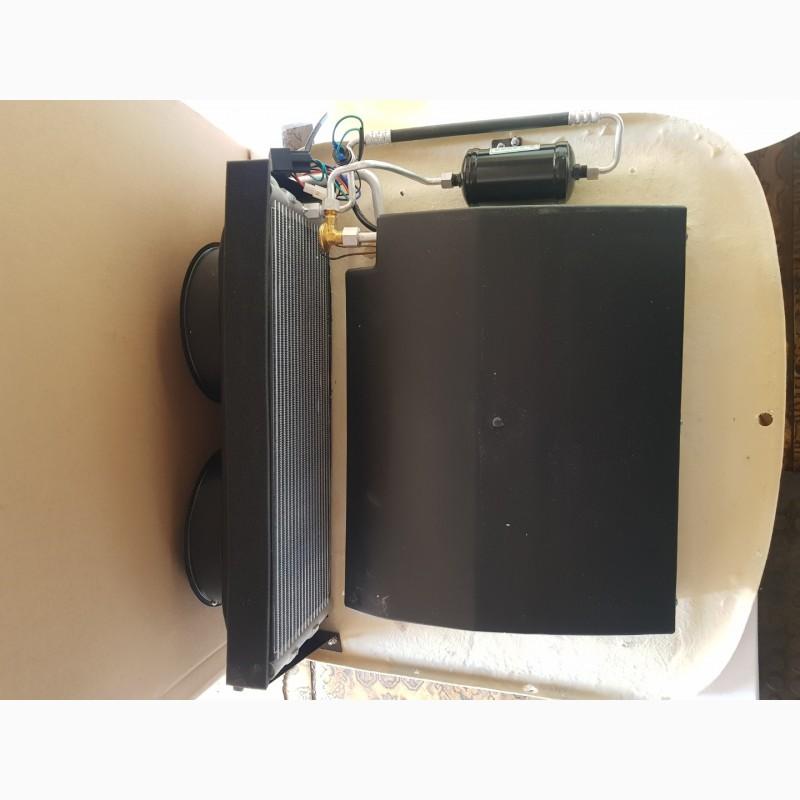

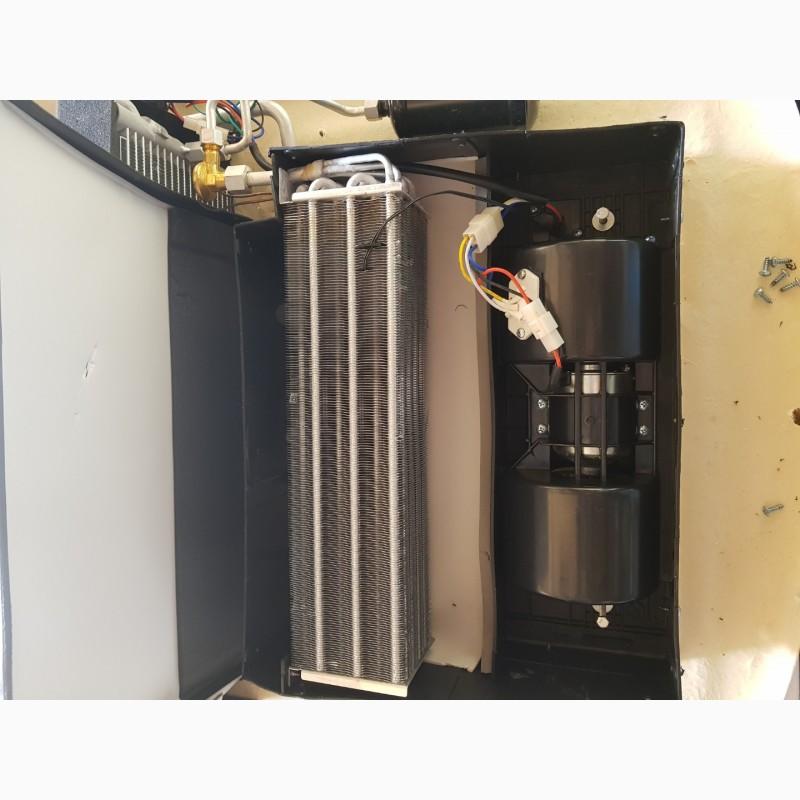

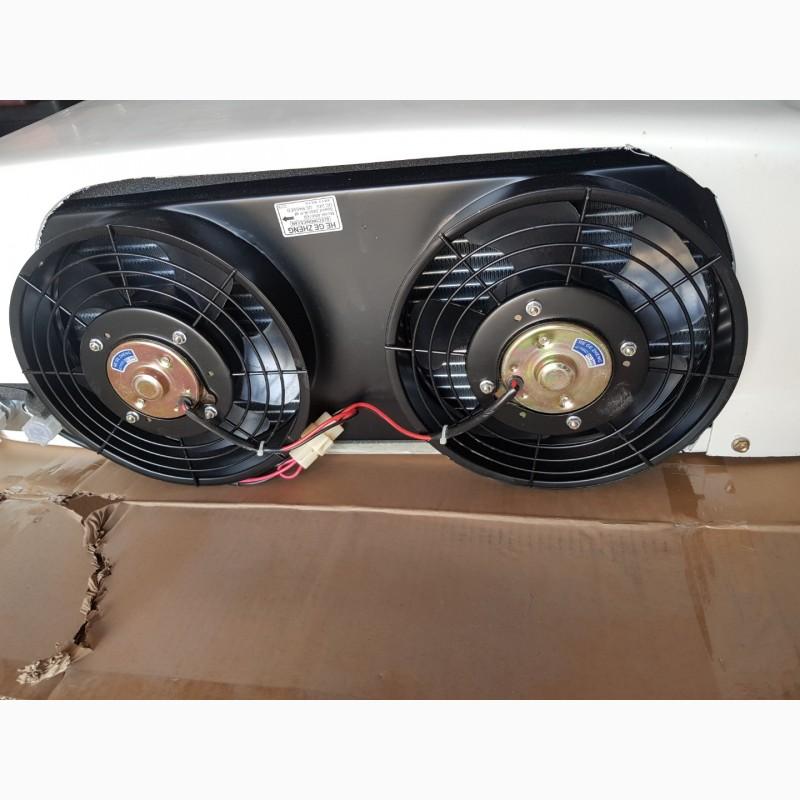

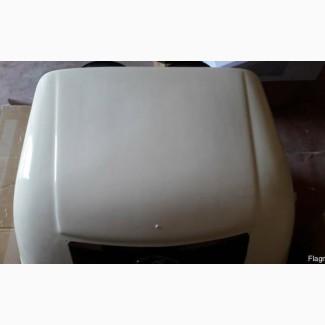

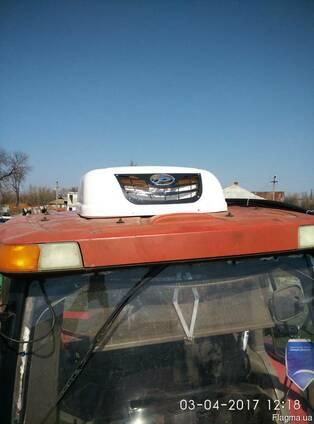

1) The main unit is installed on the roof of the vehicle. It consists of: an evaporator, a condenser, a filter-receiver, a condenser blowing fan (2 pcs.), a thermo-regulating valve, a hose, wiring. This is all in one block and is hidden under a plastic decorative panel.

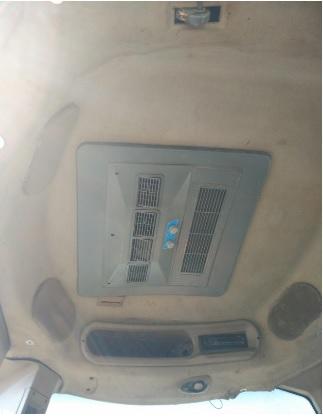

2) Inside, a panel with air deflectors and control elements (temperature regulator and fan speed switch for three positions) is installed on the cabin ceiling.
(//tractor-service.com)
This monobloc also requires a 5H14 compressor, a compressor mounting bracket and 2 hoses (from the compressor to the overhead monobloc).
The compressor is installed on the engine, driven by a belt. The compressor is connected to the main block with cooling pipes.
The monobloc is used on MTZ tractors - all models, KhTZ - all models, Kirovets, Slobozhanets, it can be installed on any imported tractor. Possible installation on
Slavutych combine harvester, Palesse, Niva, Klaas, possible adaptation of the air conditioner to any import combine harvester. It is possible to install the monobloc on any road and construction equipment - excavators, loaders, etc.
There is also a compressor,
hoses and others.
