Motoblock DTZ 570BN gasoline, 7 hp, gears 3/1, wheels 4, 00-10. Wheel unlockers, Zhytomyr region.

Motoblock DTZ 570BN (gasoline, 7 hp, gears 3/1,wheels 4.00-10)

The 570 BN model is a new product of 2020. It is an analogue of the popularCentaur motoblock MB2070B.

MAIN DIFFERENCES FROM THE BASE MODEL OF PREVIOUS YEARS:

filter with an air intake placed on the steering wheel (increased engine resource)
There are wheel unlockers (allows turning on the spot)
AVAILABLE PTO SHAFT (PTO) - allows the connection of active attachments.

3 forward gears / 1 reverse gear

The drive is a direct, multi-disc clutch. Not a belt!

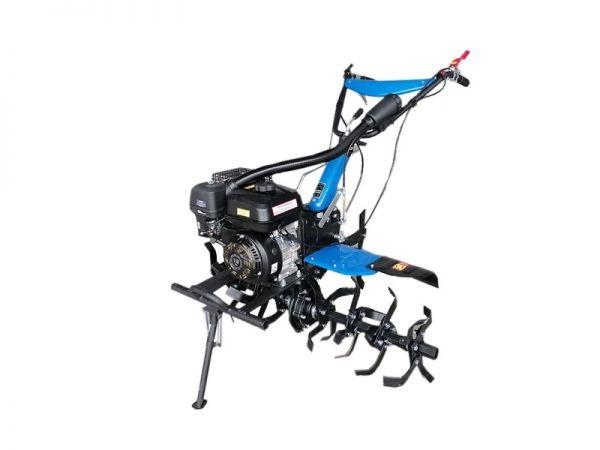

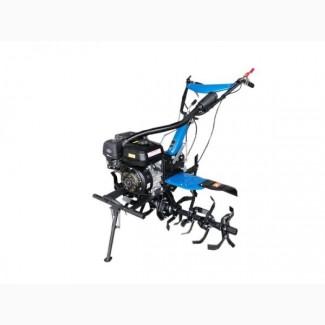

Motoblock DTZ 570BN

New paint scheme. Steering wheel turning and tilting mechanism. Transport wheels 4.00-10 in a set.

Air filter with an air intake placed on the steering wheel. Gearbox with a drive through a multi-disc normally open clutch

Additional protective cover on the muffler. Additional wing extenders. Strong front bumper with carrying handle and consoles for transporting cutters

3-speed gear transmission with a bevel gear for the milling cutter. A 3.7-liter fuel tank with inlet and outlet screens and a maximum fuel level indicator.

Tiller (1+1+2)+(2+1+1) processing width 620; 880; 1140 mm, Reinforced fastening of knives. Rigid brackets of protective wings. Protection of bearings from dust

A new lever of a non-baked clutch, bright color and ergonomic shape. Locking the reverse lever against accidental activation. New throttle knob

Overtaking unlockers on wheel hubs

Monobloc type trailing device with processing depth limiter. Longitudinal GDP for connecting active trailer equipment

"DTZ" motoblocks are included in the premium segment of agricultural machines of this class in terms of manufacturing quality, reliability, equipment and equipment and are significantly superior to motoblocks of other brands. Confirmation of reliability is the manufacturer's extended 2-year warranty for all models of walk-behind tractors of this line. These walk-behind tractors are the most convenient and safest for the operator, distinguished by well-thought-out ergonomics of controls, ease of operation and maintenance. Aesthetics have not been forgotten either - the new shape of the wings, the elegant curve of the steering wheel handles, the smooth lines of the steering column cover and the protective cover in combination with the strong, bright-colored paintwork are frankly pleasing to the eye.

All DTZ walk-behind tractors have a 3-speed gearbox, not a 2-speed one, as on walk-behind tractors of other brands. An additional reduced gear provides ideal movement speed for planting and harvesting with precision and accuracy unattainable for other walk-behind tractors. In addition, the reduced speed provides additional comfort to the operator: in the process of work, you can calmly walk at a leisurely pace, and not run after the walk-behind tractor across the field.

Another important difference is the presence of overtaking unlockers on the transport wheels, which greatly facilitate the turning and turning of the walk-behind tractor, giving the opportunitywheels to rotate at different speeds when turning, i.e. acting as a differential.

A safe multi-disc clutch of the normally open type provides a much higher degree of safety and ease of operation of walk-behind tractors, greatly simplifies and facilitates the process of starting the engine and controlling the walk-behind tractor, since one lever is used instead of two. You can safely start the engine and switch to any gear - the walk-behind tractor will remain motionless. The rotation of the power take-off shaft together with the attached equipment will not start, and therefore there will be no sudden danger to the operator and to the environment. To start the movement, it is enough to press the clutch lever with a slight effort. If you let go of the clutch lever, the walk-behind tractor will stop immediately, but the engine will not stop, but will continue to work, there is no need to start it again and again every time.

The safety lock of the reverse lever ensures a higher degree of safety of operation of the walk-behind tractor, eliminates the possibility of accidentally switching on the reverse gear. Now you can press the lever only after first pressing the fuse, that is, with the new lever, the probability of error is reduced many times. This is very important, because the wrong choice of the direction of movement can lead to breakdowns and even injuries. The "hand throttle" lever has a strong all-metal body and a convenient knob for adjustment. The steering wheel handles are comfortable and soft, they don't slip out of your hands.

Description and brief description:

The DTZ 570BN model is equipped with a 4-stroke gasoline engine with a capacity of 7 hp, a powerful gearbox with a bevel gearbox. The engine is equipped with an intake air filtration system with a remote air intake on the steering wheel, which improves the protection of the engine from abrasive particles in the air.

The delivery set includes:

Collapsible cutter: (2+1+1) rows of knives on the right + (2+1+1) rows on the left. The thickness of the cutter blades at the base is 6 mm.
Transport wheels 4.00-10

Connecting an active pendant :

Behind the checkpoint is a longitudinal GDP and a monobloc-type towing device for connecting active towing devices.

The motoblock DTZ 570BN is one of the most high-quality and convenient models of motoblocks in this class.

Characteristics of DTZ 570BN walk-behind tractor:

Type

Gasoline with air cooling

Engine

Single-cylinder four-stroke

Maximum power, k.s./kW

7.0/5.2

Engine starting system

Manual starter

Number of forward/backward gears

3/1

Drive from the engine to the transmission

Straight through clutch

Clutch

Multi-disc in an oil bath, normally open

Fuel tank volume, l

3.7

Nominal fuel consumption, g/kW*h

374
(//tractor-service.com)
Cutter reducer

Geared with a conical reducer

The number of cutter sections

8=(1+1+2)+(2+1+1)

Cutter grip width, mm

620; 880; 1140

Cutter rotor diameter, mm

360

Cultivation depth, mm

to 200

The maximum frequency of rotation of the cutter, rev/min.

114

Transport wheels

Pneumatic, 4.00-10 "herringbone"

Estimated maximum speed on wheels, km/h

Forward 3.8; 7.6; 10.3 / back 2.5

Overall dimensions (LxWxH), mm

1615x655x860

Equipped weight on wheels/ on the cutter, kg

100 / 108

The model is equipped with a 4-stroke gasoline engine with a capacity of 7.0 hp, a multi-disc clutch, a powerful gearbox with bevel gears and a power take-off shaft. It is an analogue of the Centaur 2080B model, but it has a number of improvements, such as: the presence of a powerful metal bumper, a reinforced frame. A contact-oil type air filter with an oil bath is installed on the engine, which protects the engine even better.

Motoblock DTZ 570B is a universal agricultural machine for processing territories up to 1.5 hectares. With its help, you can do cultivation, ploughing, hilling of the soil, digging up root crops, as well as many other works using the appropriate attached equipment.

The set includes:

The milling cutter is set, adjustable in width with 2+1+1 sections on each side. The thickness of the cutter blades at the base is 6 mm.

PTO parameters:

PTO under the key with a diameter of 18 mm and a length of 24 mm.

key 6x6x20

Control elements on the steering wheel are made of metal (emergency stop lever, reverse lever, clutch lever).

At the moment, the DTZ 570B motoblock is one of the best in the model range of air-cooled gasoline motoblocks.

Technical characteristics

Fuel: gasoline
Engine: four-stroke single-cylinder engine

Power: 7.0 hp.

Volume: 207 cm3

Engine cooling: active air

Transmission: gearbox with 2 bevel gears, multi-disc clutch

Drive: direct, through the clutch.

Gears: 3/1 forward/reverse

Fuel tank: 3.6 l

Oil pan volume: 0.6 l

Oil volume in the gearbox: 1.7 l

Track width: 520 mm

Fuel consumption: nominal load — 0.5 l/h, maximum load — up to 1.8 l/h

Processing width: 605 / 885 / 1165 mm

Processing depth: 15-30 cm.

Overall dimensions: 1740/700/900 mm

Weight: 114 kg

Manufacturer: China

Complete set: collapsible milling cutter, pneumatic chamber wheels 4.00-10", set of keys, instructions.
